Entity flex wo payment solution

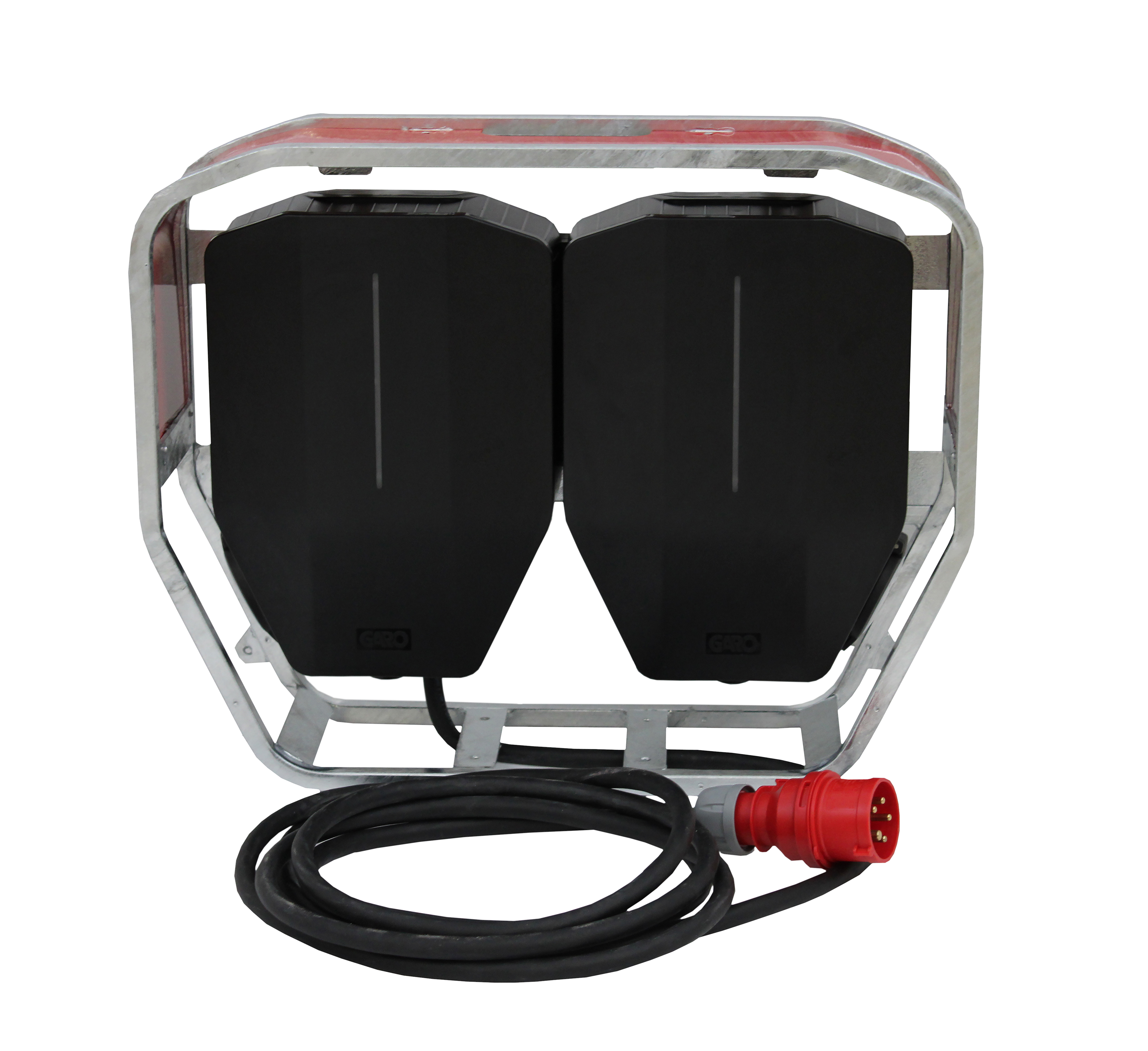

GARO Entity Flex is a flexible solution with 3-phase charging 16A, built-in load balancing and a flexible payment solution. The charging boxes can either be screwed to a wall (e.g. on a construction shed) or mounted on stands that are available as accessories. Connection takes place through a cable with CEE socket 32A which is quick and easy to connect. If you wish to connect several GARO Entity Flex in series in your charging solution, you simply set the maximum available current in the GARO Connect app and the load balancing takes care of itself so you don't have to worry about fuses tripping.GARO Entity Flex naturally meets all safety requirements on the market. Temporary charging box Entity Pro double 2x11kW EV-outlet, load and phase balancing and modem with SIM GARO connect
E-number
2700634
Article number
354396
Type designation EFCSO0316SIGI
Rated current [A] 16
Rated voltage [V AC] 230/400
Cable [m] Not included
Package size [pcs] 1
Standard EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118
Netweight [kg] 19
Width [mm] 555
Height [mm] 414
Depth [mm] 170
Frequency [Hz] 50
Temperature range [C] -40C...+40C
Power [kW] 2x11
Mounting method Free-standing/mobile
Storage temperature [C] -40C...+40C
Phases 3
Meter Built-in meter
RFID Yes
Impact strength IK10
Charging current [A] 0-32
Locks Yes
Short-circuit current [kA] 10
Name CHARG BOX 2x11kW ENTITY FLEX
E-number 2700634
Article number 354396
AC/DC output Type2 outlet
AC/DC output Type2 outlet

Accessories for Entity flex wo payment solution

Name E-number Article number Type designation Description
FRAME REAR U32 HOT GALVANIZED 90414 FRAME REAR U32 HOT GALVANIZED
