Junction boxes PR 18,6

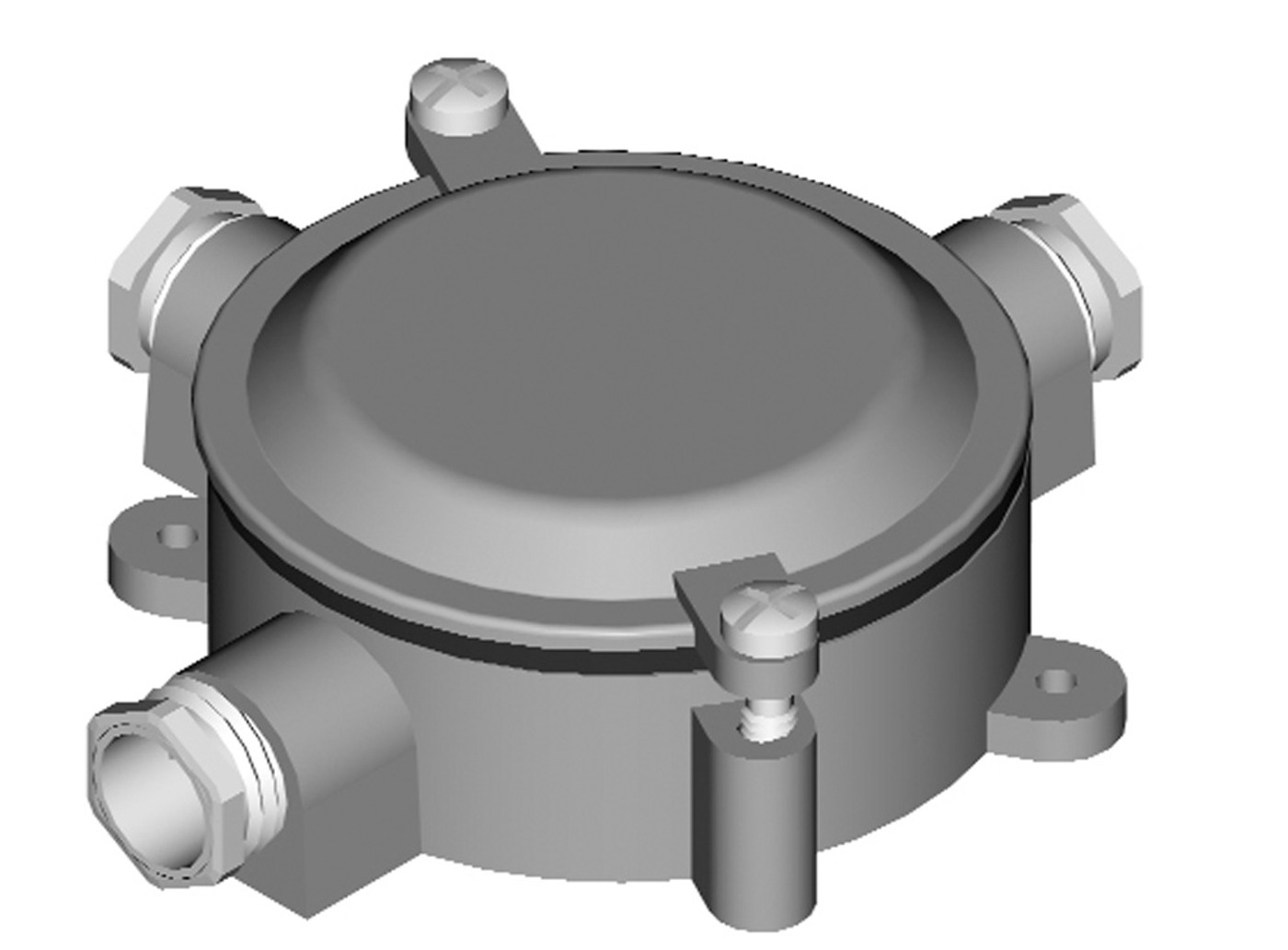

GARO’s junction boxes with thread 18.6 are made of die-cast light alloy and are supplied with cover, rubber seal, terminal block with 4 sheath terminals, earth screw and complete cable glands. Junction box diecast light alloy 4/18,6
Degree of protection [IP] | 67 |
---|---|
Wire flexible [mm²] | Max 3x4 |
Colour | RAL7000 Grey |
Standard | EN 60998-1-2, EN 60670-1 |
Package size [pcs] | 5 |
Width [mm] | 104 |
Height [mm] | 110 |
Depth [mm] | 38 |
Materials | Light metal die-cast |
Isolation voltage [V] | 500 |
Wire solid [mm²] | Max 3x4 |
Thread size | 18,6 |
Inner diameter Ø [mm] | 76 |
Inner depth [mm] | 23 |
Name | JUNC BOX ALLOY 4/18,6 |
---|---|
Article number | 1439504 |
Netweight [kg] | 0.20 |
