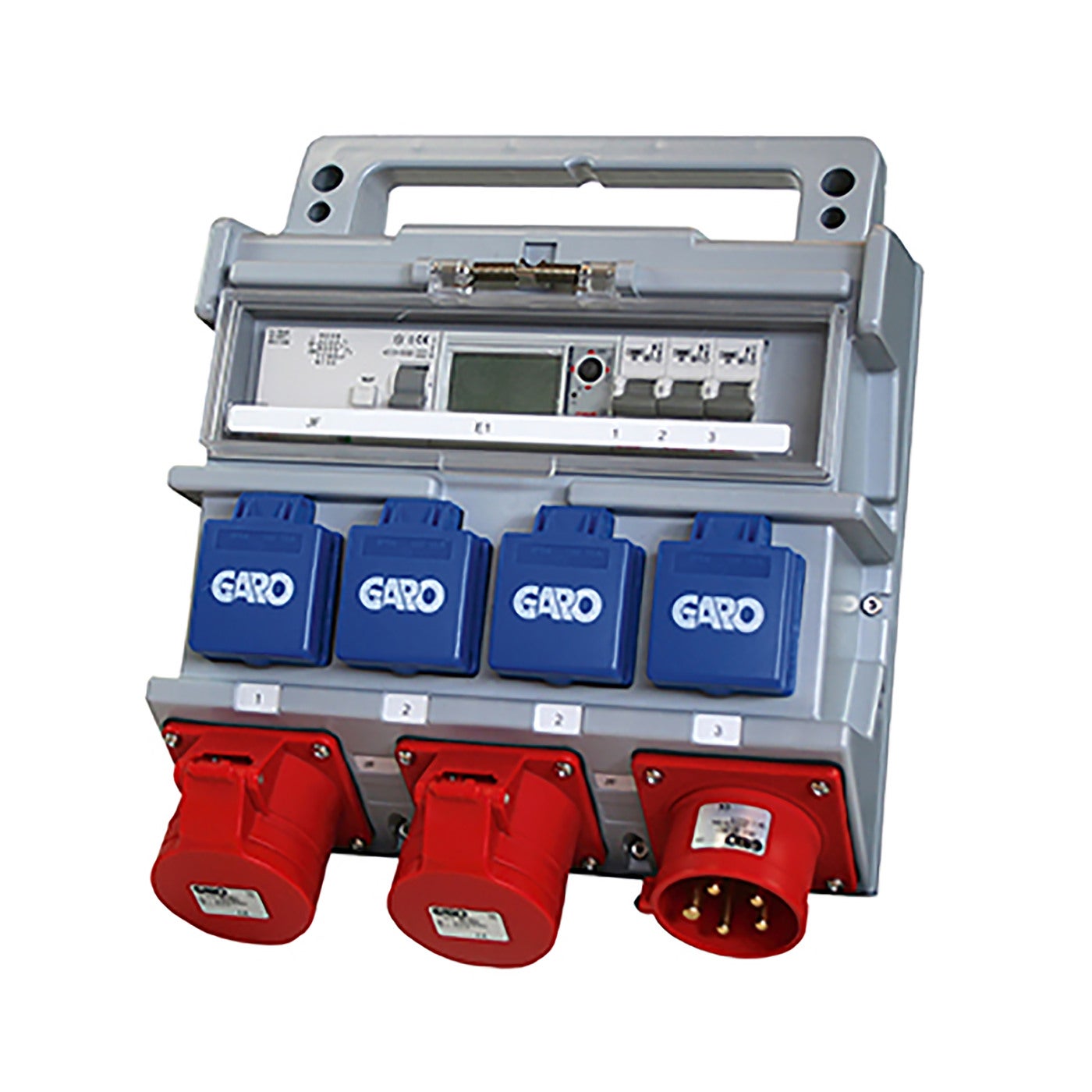

• POWERBOX 16A RCCB W KWH METER - 1

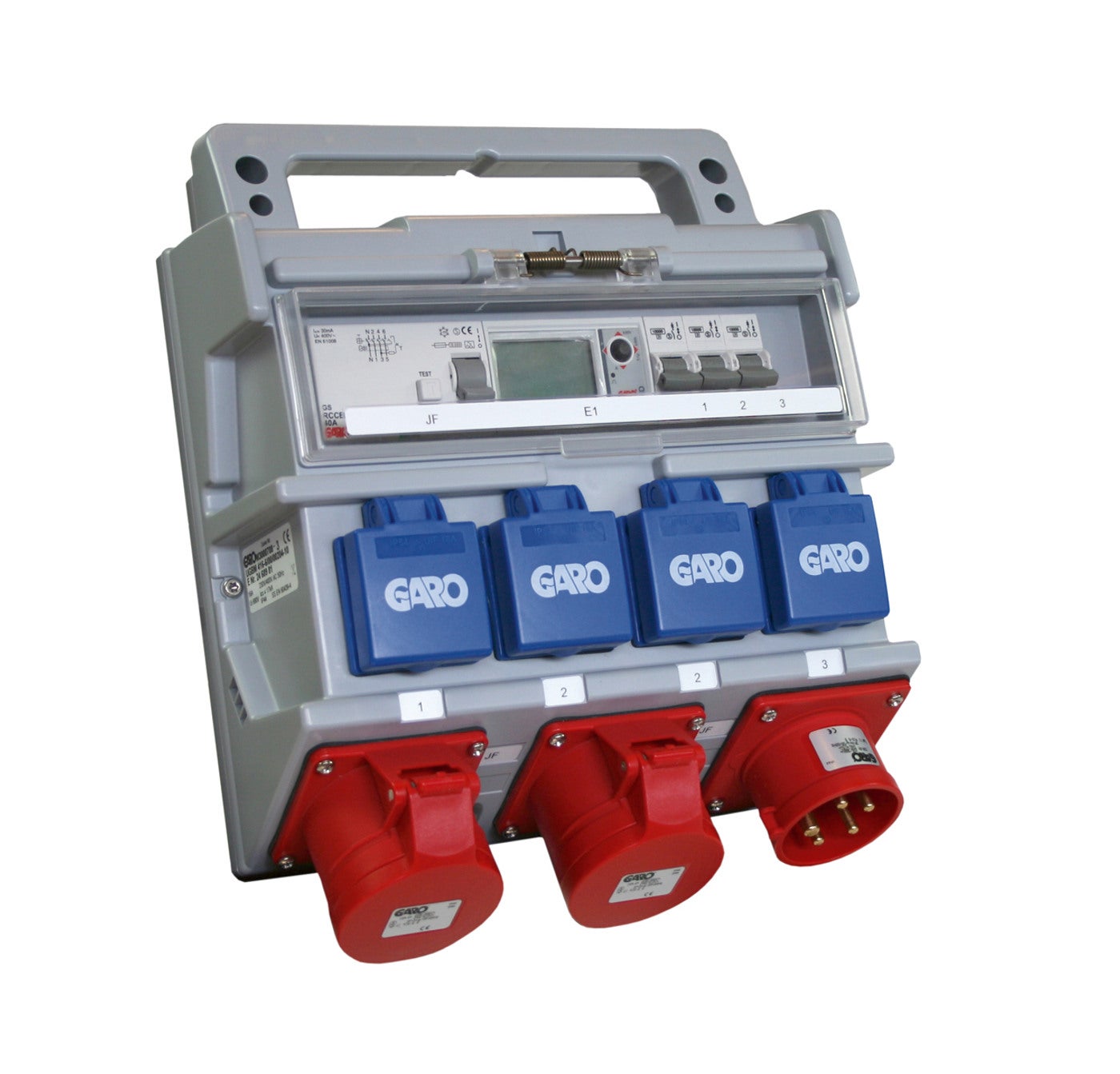

  • POWERBOX 16A RCCB W KWH METER - 2

Portable outlet boxes with meter 16A

Portable outlet boxes w meter 16A Portable cases 16A RCCB 4xschuko 2x16A outlet energymeter
E-number
E2468981
Article number
2468981
Support
Type designation U GBL 416-6 KWH-MÄTARE
Materials Plastic
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230/400V AC
Energymeter Yes
CEE socket outlet 16A 2pcs 5P 16A 230/400V
Number of MCB 1P (1) 3pcs C113
Number of Schuko[pcs] 4pcs
Number of RCCB [pcs] 1 1pcs 4P 40A
CEE socket inlet 16A 1pcs 5P 16A 230/400V
Degree of protection [IP] IP44
NetProductWeight 2.5
EngineerWidth 275
EngineerHeight 33
EngineerDepth 120
Name POWERBOX 16A RCCB W KWH METER
E-number E2468981
Article number 2468981

Accessories for Portable outlet boxes with meter 16A

Name E-number Article number Type designation Description
STAND FOR POWERBOX UGBL/GBOX STAND FOR POWERBOX UGBL/GBOX E2466382 352053 S-UNI Portable stand for outletbox UGBL, G-Box
DISTR BOX 230V 3V 0,75M DISTR BOX 230V 3V 0,75M E2466384 352055 Distribution boxes 3-ways 0,75meter cable with plug 230V
DISTR.BOX 230V 3V 10M DISTR.BOX 230V 3V 10M E2466385 352056 Distribution boxes 3-ways 10meter cable with plug 230V
DISTR.BOX 400-230V 3V 0,5M DISTR.BOX 400-230V 3V 0,5M E2466386 352057 Distribution boxes 3-ways 0,5meter cable with plug 416-6 400-230V
EXTENSIONCABLE 230V 3G1,5 25M EXTENSIONCABLE 230V 3G1,5 25M E2403608 352077 SKARVK-230-25H Extension cable 230V 3G1,5 25meter

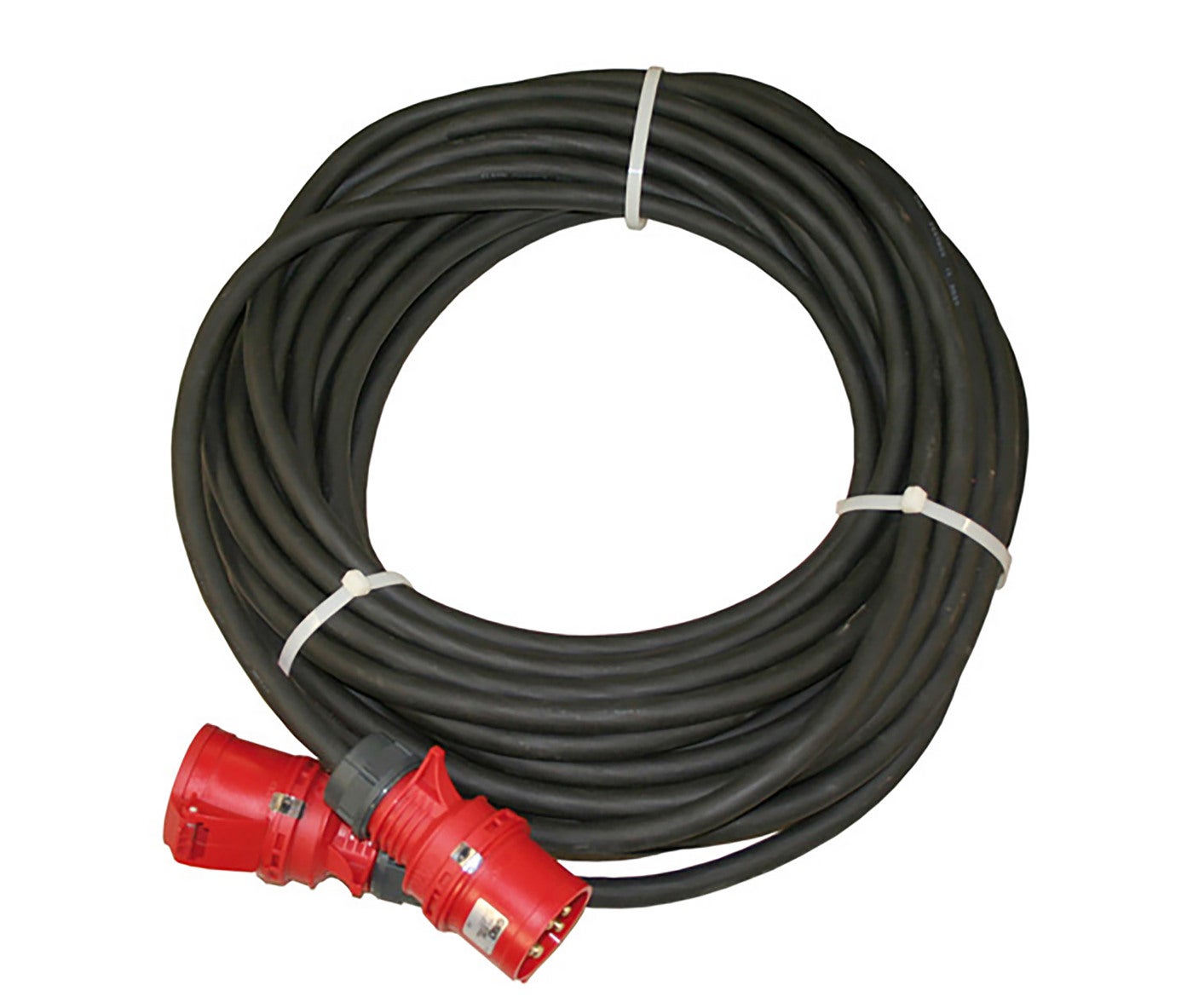

EXTENSIONCABLE16A400V5G2,5 25M EXTENSIONCABLE16A400V5G2,5 25M E2403609 352095 Extension cable 16A 400V H07RN-F 5G2,5 25meter
EXTENSIONCABLE 16A400V5G2,5 20M EXTENSIONCABLE 16A400V5G2,5 20M E2404340 352526 KBSK16A-5G2,5-20 Extension cable 16A 400V H07RN-F 5G2,5 20meter
