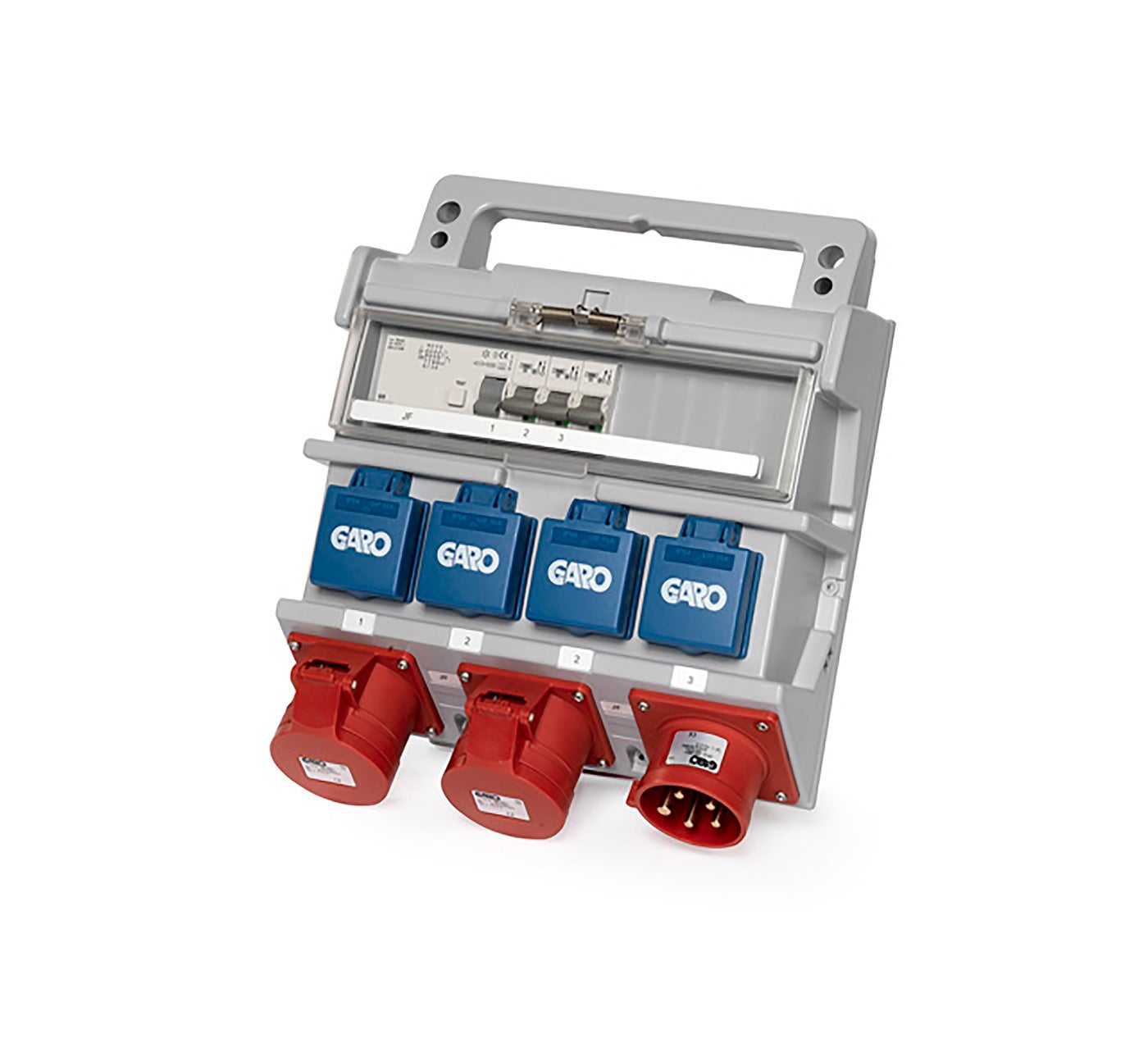

POWERB 16A 00204-3S RCCB

Portable outlet boxes standard 16A

Bärbara elväskor/undercentraler för olika ändamål, såsom fördelning med olika antal uttag, med effektmätare, för containers, för belysningsstyrning, för betonghärdning etc Portable cases 16A RCCB 4xschuko 2x16A outlet 3xMCB
E-number
E2468975
Article number
2468975
Support
Materials Plastic
Standard 0
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230/400V AC
CEE socket outlet 16A 2pcs 5P 16A 230/400V
Degree of protection [IP] IP44
Name POWERB 16A 00204-3S RCCB
E-number E2468975
Article number 2468975
Type designation U GBL 416-6/00/00204-10A
Energymeter No
Number of MCB 1P (1) 3pcs C113
Number of Schuko[pcs] 4pcs
Number of RCCB [pcs] 1 1pcs 4P 40A

Instruction Sheet

More variants of Portable outlet boxes standard 16A

E-number Article number Type designation Energymeter Length of cable [m] Number of MCB 1P (1) Number of Schuko[pcs] Number of RCCB [pcs] 1 CEE socket inlet 16A EngineerWidth EngineerHeight EngineerDepth
POWERB 16A 00204-3S RCCB E2468975 2468975 U GBL 416-6/00/00204-10A No 3pcs C113 4pcs 1pcs 4P 40A
POWERB 16A 00204-2S RCCB E2468976 2468976 U GBL 416-6/00/00204-10A No 2pcs C113 4pcs 1pcs 4P 40A 1pcs 5P 16A 230/400V
POWERB GB 16A 002.10 RCCB E2469108 2469108 U GBN 416-6/00/002.10-10 0 0 10pcs 512 330 120

Accessories for Portable outlet boxes standard 16A

Name E-number Article number Type designation Description
107953
RCCB 4P 40A 30mA 10kA GS RCCB 4P 40A 30mA 10kA GS E2163326 110097 RCCB GS 40A 30mA 10kA 4P Residual current circuit breaker (RCCB) 4-pole 40A 30mA GS
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A E1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB C 3P 16A 10kA GS MCB C 3P 16A 10kA GS E2142753 2142753 MCB C316 Miniature circuit breaker (MCB) C-Characteristic 3-pole 16A 10kA GS
RCCB GS 40A 4P 30mA RCCB GS 40A 4P 30mA 2163209 RCCB type GS 40A 4-pole 30mA
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h E2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
INLET STRAIGHT 5P 16A 6h INLET STRAIGHT 5P 16A 6h E2425298 2425298 II 416-6 S Inlet straight basic 5-poles 16A 6h
INLET STRAIGHT 5P 32A 6h INLET STRAIGHT 5P 32A 6h E2425319 2425319 II 432-6 S Inlet straight basic 5-poles 32A 6h

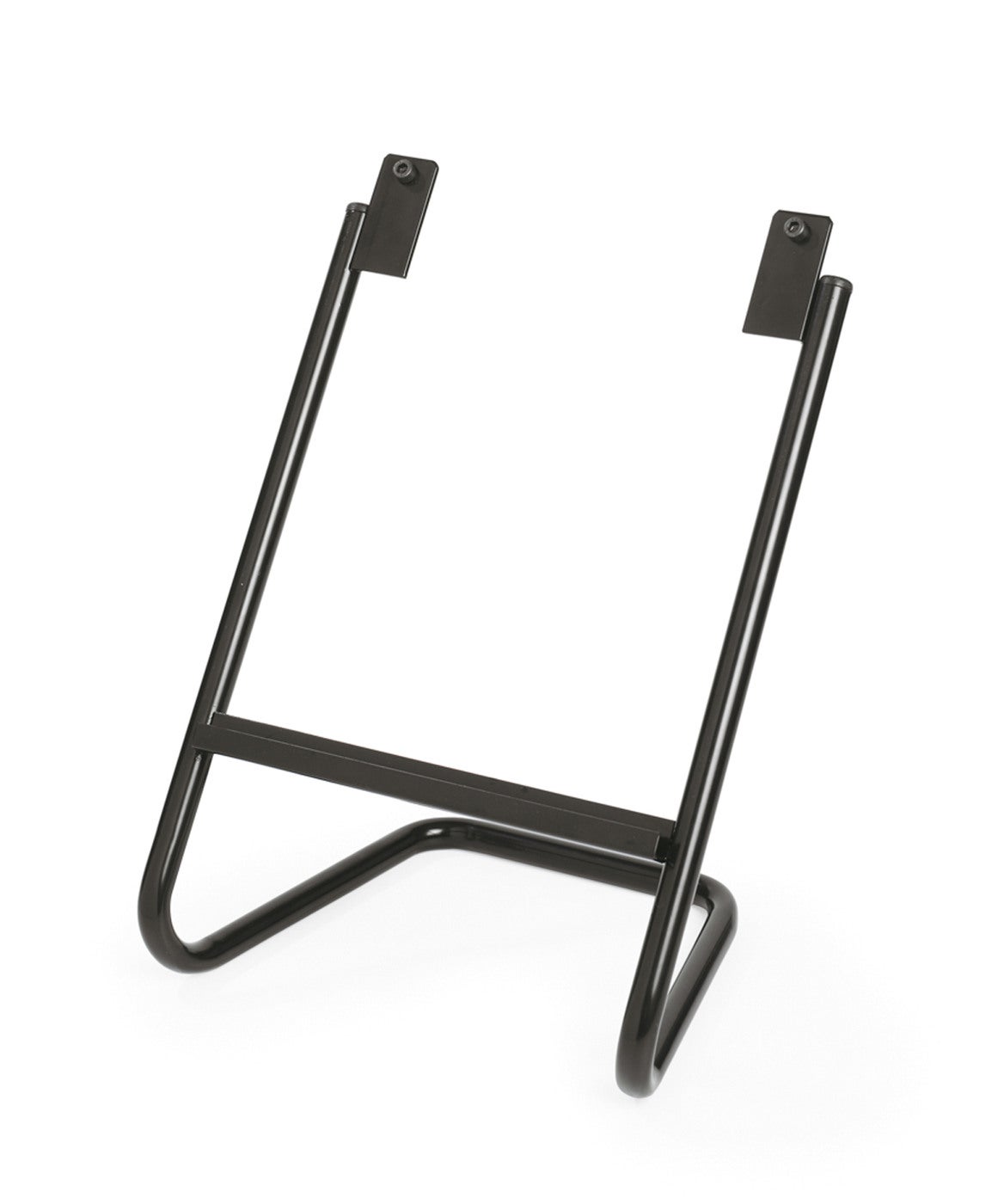

STAND FOR POWERBOX UGBL STAND FOR POWERBOX UGBL 2469030 UGBLS Stands for portable power case and Gbox

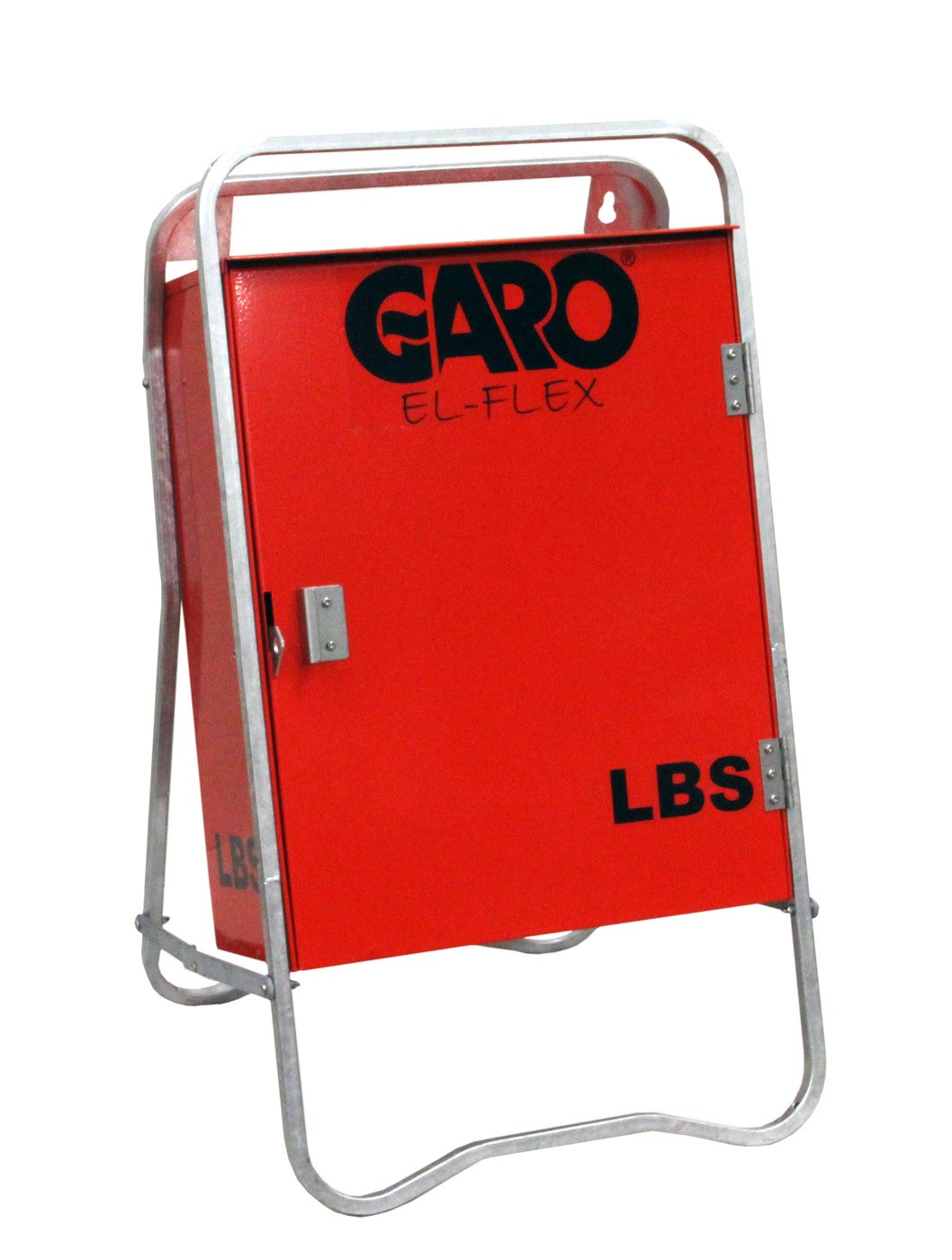

STANDS LOCKABLE STANDS LOCKABLE E2469035 2469035 LBS 16-63 Stands lockable for portable boxes 16-32
FUSE COVER COMPL 351763 Complete fuse cover for 16- and 32A electrical bags.
STAND FOR POWERBOX UGBL/GBOX STAND FOR POWERBOX UGBL/GBOX E2466382 352053 S-UNI Portable stand for outletbox UGBL, G-Box
DISTR BOX 230V 3V 0,75M DISTR BOX 230V 3V 0,75M E2466384 352055 Distribution boxes 3-ways 0,75meter cable with plug 230V
DISTR.BOX 230V 3V 10M DISTR.BOX 230V 3V 10M E2466385 352056 Distribution boxes 3-ways 10meter cable with plug 230V
DISTR.BOX 400-230V 3V 0,5M DISTR.BOX 400-230V 3V 0,5M E2466386 352057 Distribution boxes 3-ways 0,5meter cable with plug 416-6 400-230V
EXTENSIONCABLE 230V 3G1,5 25M EXTENSIONCABLE 230V 3G1,5 25M E2403608 352077 SKARVK-230-25H Extension cable 230V 3G1,5 25meter

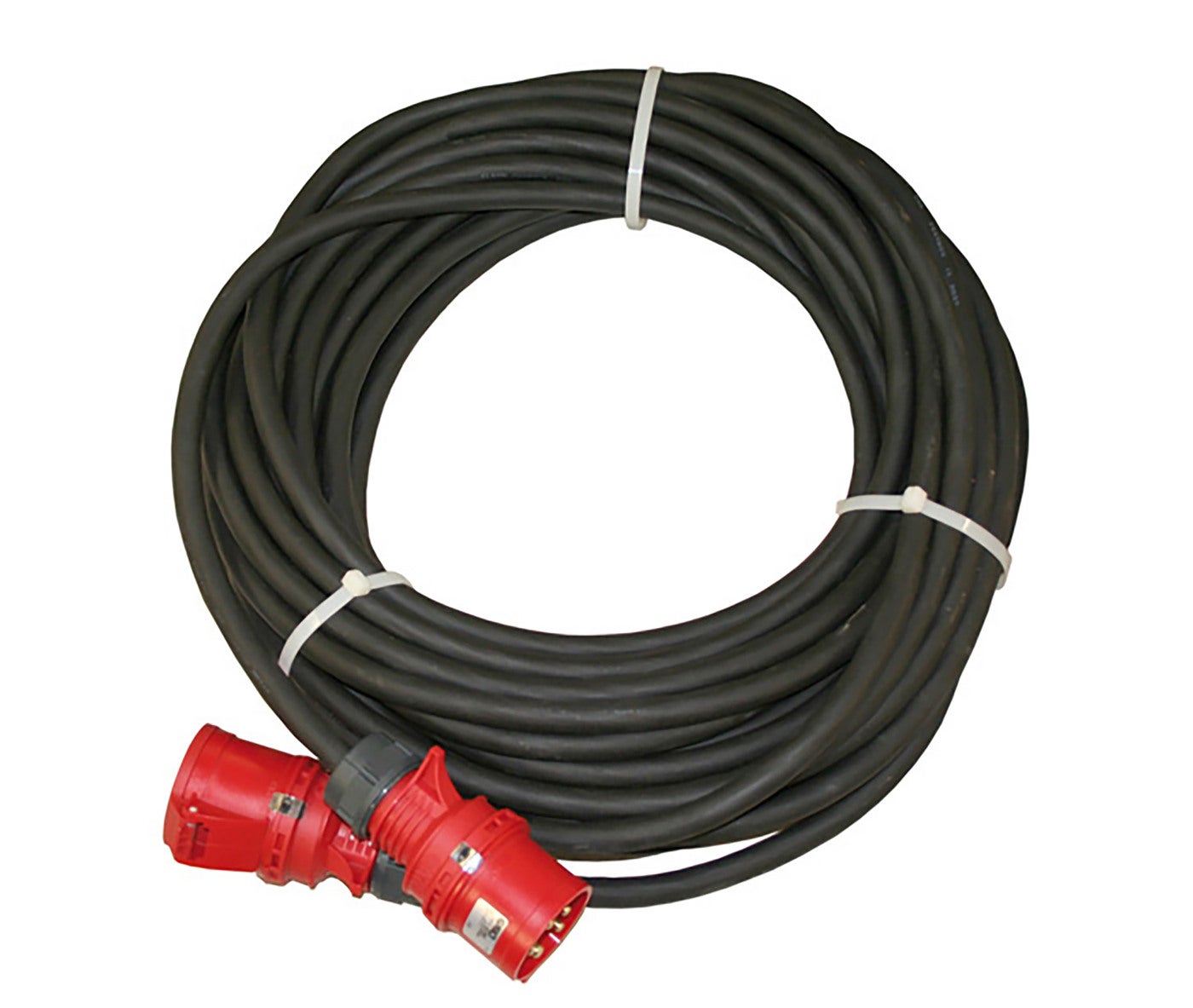

EXTENSIONCABLE16A400V5G2,5 25M EXTENSIONCABLE16A400V5G2,5 25M E2403609 352095 Extension cable 16A 400V H07RN-F 5G2,5 25meter
EXTENSIONCABLE 16A400V5G2,5 20M EXTENSIONCABLE 16A400V5G2,5 20M E2404340 352526 KBSK16A-5G2,5-20 Extension cable 16A 400V H07RN-F 5G2,5 20meter
MOUNTINGPLATE CONTAINER BOX MOUNTINGPLATE CONTAINER BOX 2466338 80773 MP CONT Mounting plater for container box centrals fits E24 690 00 and E24 690 01
