Distribution boards fixed connection 630A

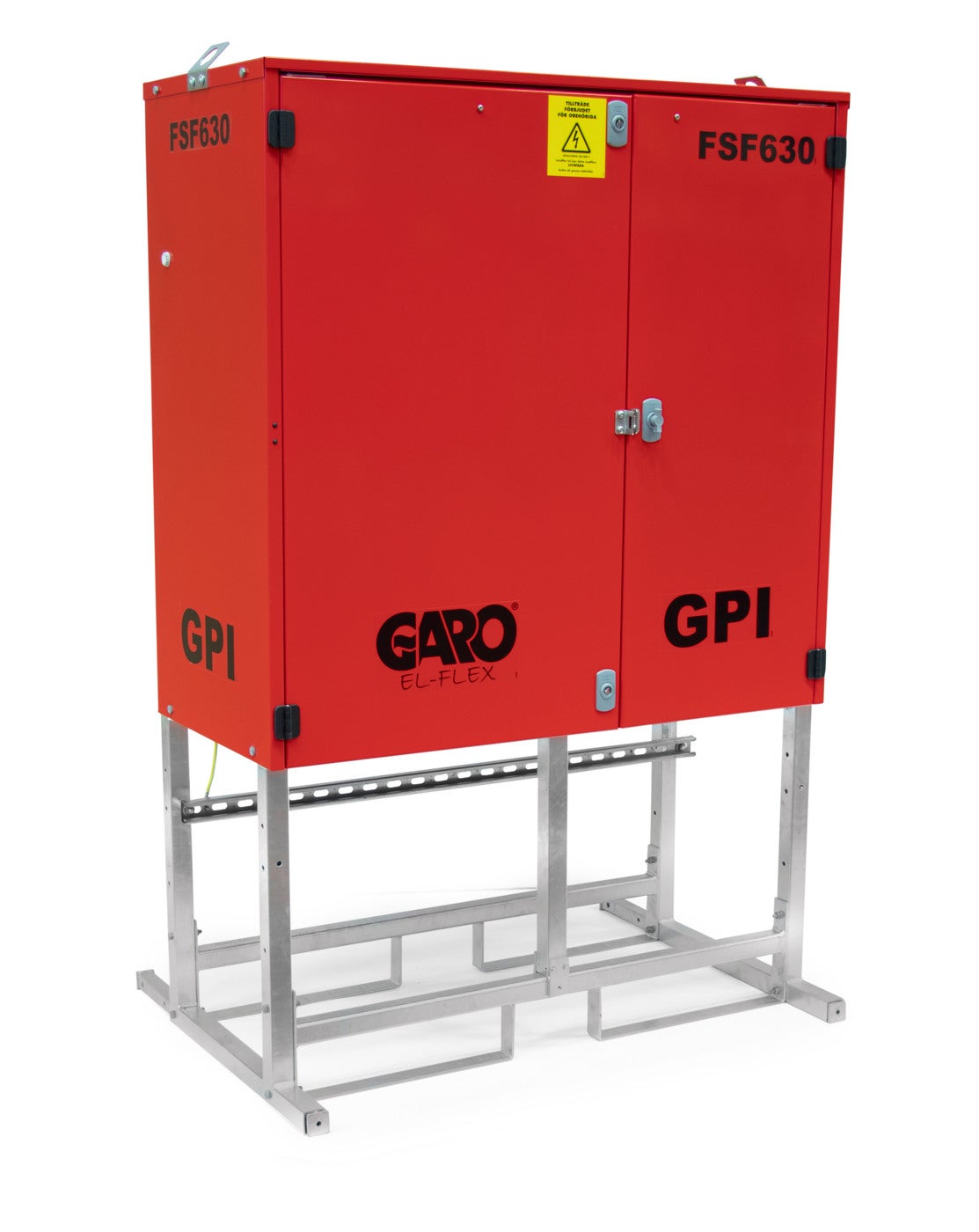

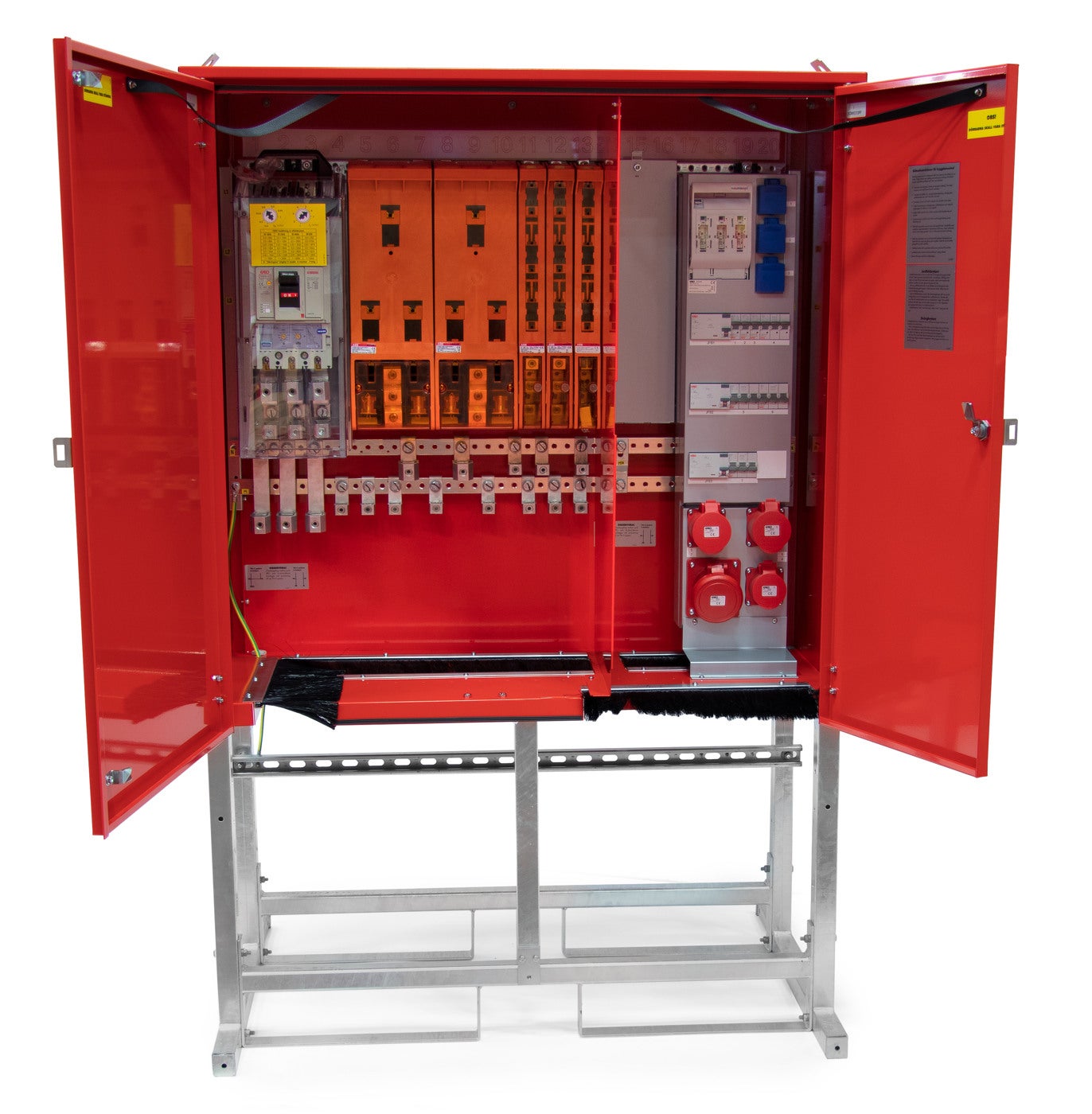

Power distribution (without energy measurement) 630A built in the GPI-system. This distribution assembly is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. This model is also equipped with output for onward feed of the earth cable (Type AKKJ) 16-95 mm² and 95-240 mm². Power distribution 630 GPI/EB/2xSLK400 3xSLK160 1x63 2x32 1x16 3x13.
E-number
E2469123
E2469123
Article number
353726
353726
| Type designation | FSF 630 GPI/EB/23/12103 |
|---|---|
| Materials | Sheet metal |
| Standard | EN61439-3 |
| Short-circuit current [kA] | 17kA |
| Frequency [Hz] | 50Hz |
| Color | Red |
| Rated current [A] | 630A |
| Rated voltage [V AC] | 230/400V AC |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 3pcs C113 |
| Number of MCB 1P (2) | 1pcs C316 |
| Number of MCB 3P (1) | 1pcs C363 |
| Number of Schuko[pcs] | 3pcs |
| Number of RCCB [pcs] 1 | 1pcs 4P 40A |
| CEE socket outlet 32A | 2pcs 5P 32A 230/400V |
| CEE socket outlet 63A | 1pcs 5P 63A 230/400V |
| Number of RCCB [pcs] 2 | 1pcs 4P 63A |
| Number of RCCB [pcs] 3 | 1pcs 4P 63A 300mA |
| Number of MCB 1P (3) | 2pcs C332 |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 215 |
| EngineerWidth | 1100 |
| EngineerHeight | 1662 |
| EngineerDepth | 506 |
| Name | POWER DISTRIBUTION 630A GPI/EB |
|---|---|
| E-number | E2469123 |
| Article number | 353726 |
