Distribution boards fixed connection 250A

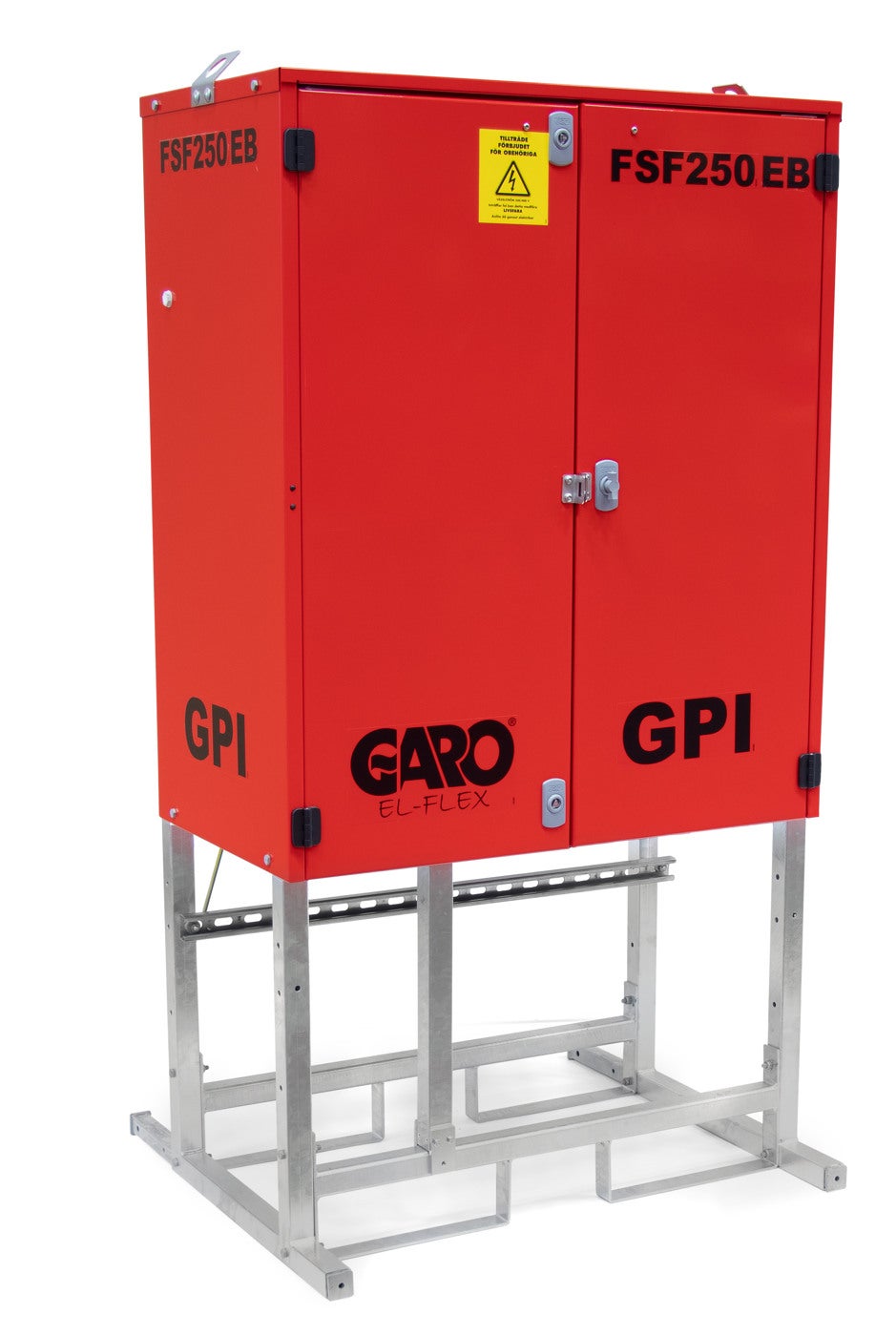

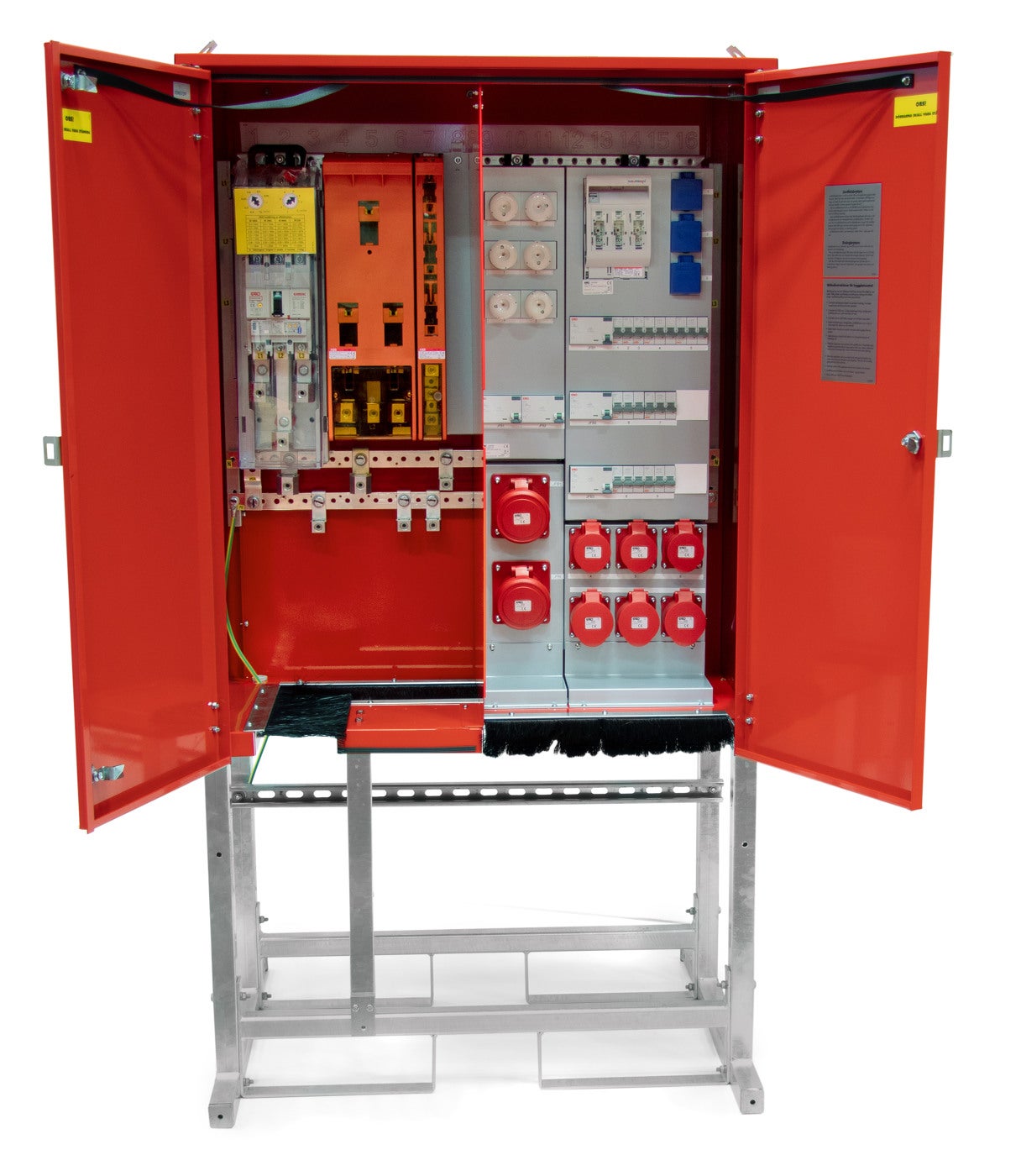

Power distribution (without energy measurement) 250A built in the GPI-system. This distribution assembly is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. This model is also equipped with output for onward feed of the earth cable (Type AKKJ) 16-95 mm² and 95-240 mm². Power distribution 250 GPI/EB/1xSLK400 1xSLK160 2x63 3x32 3x16 3x13
E-number
E2469121
E2469121
Article number
353724
353724
| Materials | Sheet metal |
|---|---|
| Standard | EN61439-3 |
| Short-circuit current [kA] | 17kA |
| Frequency [Hz] | 50Hz |
| Color | Red |
| Rated current [A] | 250A |
| Rated voltage [V AC] | 230/400V AC |
| Degree of protection [IP] | IP44 |
| Name | POWER DISTRIBUTION 250A GPI/EB |
|---|---|
| E-number | E2469121 |
| Article number | 353724 |
| Type designation | FSF 250 GPI/EB/11/23303 |
| CEE socket outlet 16A | 3pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 3pcs C113 |
| Number of MCB 1P (2) | 3pcs C316 |
| Number of Schuko[pcs] | 3pcs |
| Number of RCCB [pcs] 1 | 3pcs 4P 63A |
| CEE socket outlet 32A | 3pcs 5P 32A 230/400V |
| CEE socket outlet 63A | 2pcs 5P 63A 230/400V |
| Number of RCCB [pcs] 2 | 2pcs 4P 63A 300mA |
| Number of MCB 1P (3) | 2pcs C332 |
| NetProductWeight | 166 |
| EngineerWidth | 900 |
| EngineerHeight | 1662 |
| EngineerDepth | 506 |
