Distribution boards fixed connection 63A

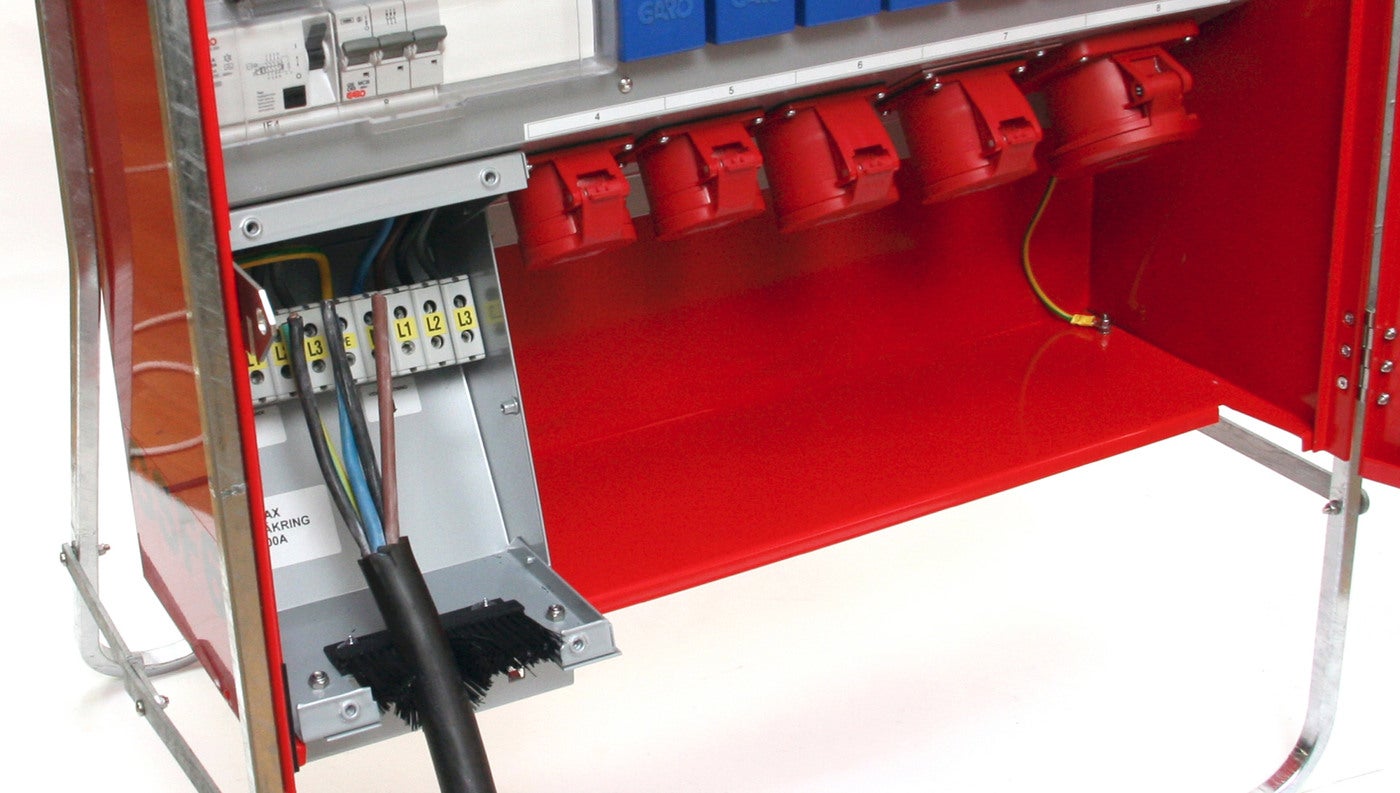

Building control unit 63A for connection via terminal with earth cable (Type AKKJ), there is also a model with two connection options, via terminal with earth cable (Type AKKJ), alternatively via CEE inlet 463-6 (63A), in this model switching takes place via a backup power switch. Equipped with main switch or circuit breaker. Equipped with socket 13-63A which is preceded by RCBO and fuse protected with MCB. DISTRIBUTION BOARD 63A 6XSCH 2X16A 2X32A 1X63A RCCB
E-number
E2469129
E2469129
Article number
352333
352333

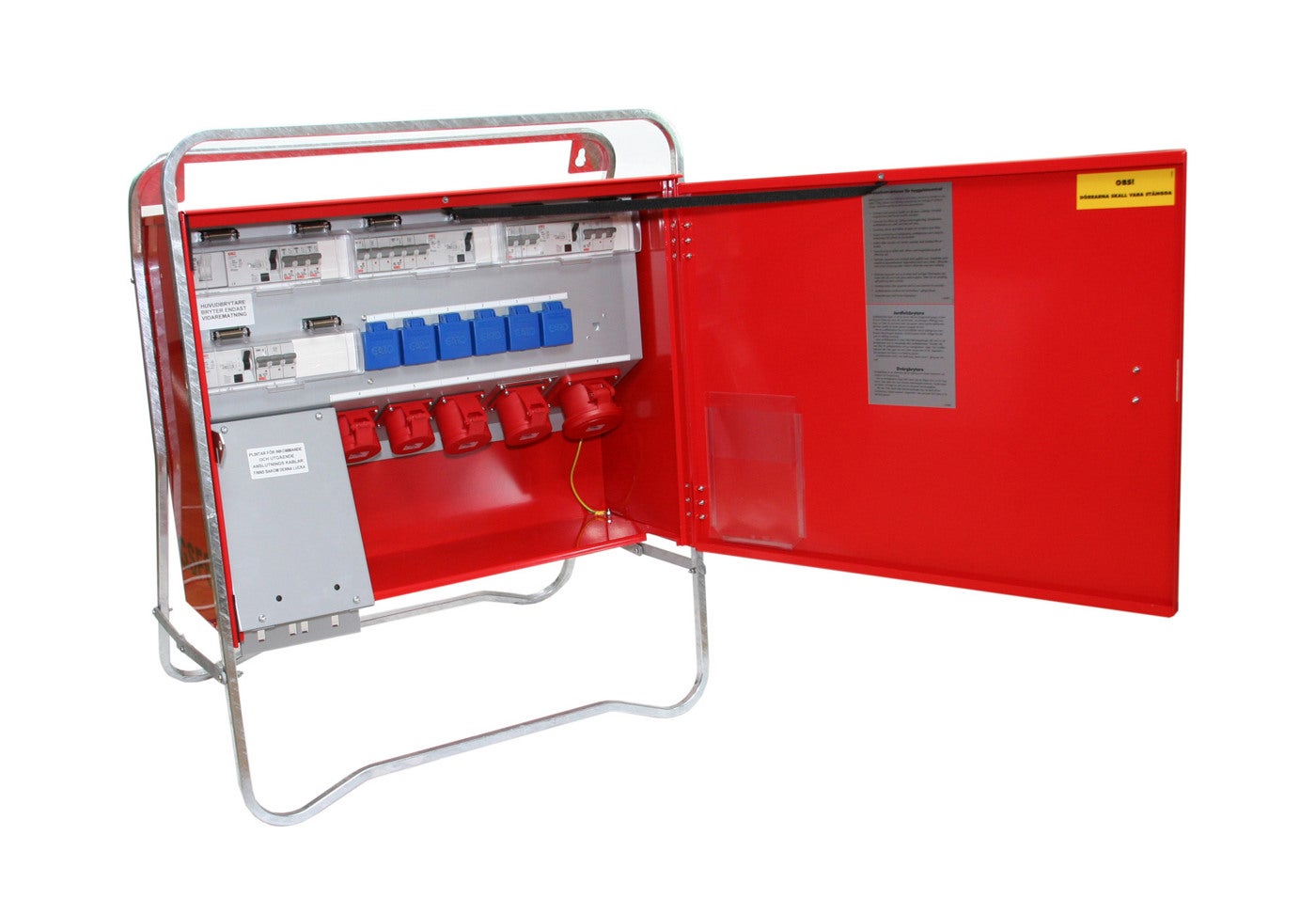

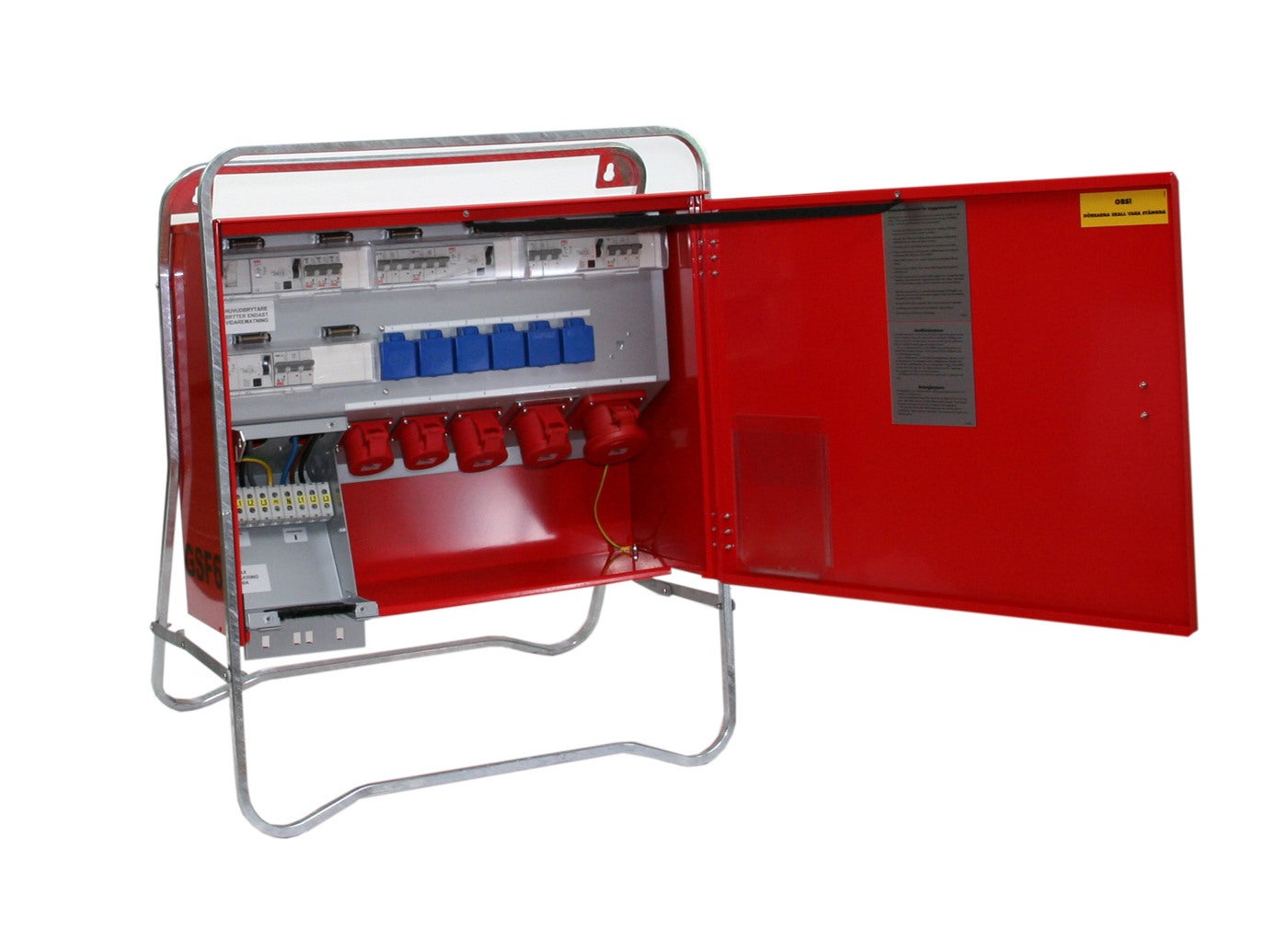

| Name | DISTRIBUTION BOARD 63A 4XRCCB |
|---|---|
| E-number | E2469129 |
| Article number | 352333 |
| Type designation | GSF 63/01/12206-31 |
| Materials | Sheet metal |
| Standard | EN61439-3 |
| Short-circuit current [kA] | 17kA |
| Frequency [Hz] | 50Hz |
| Color | Red |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Number of MCB 1P (1) | 3pcs C113 |
| Number of MCB 1P (2) | 2pcs C316 |
| Number of MCB 3P (1) | 1pcs C363 |
| Number of Schuko[pcs] | 6pcs |
| Number of RCCB [pcs] 1 | 1pcs 4P 63A 300mA |
| CEE socket outlet 63A | 1pcs 5P 63A 230/400V |
| Number of RCCB [pcs] 2 | 1pcs 4P 63A 300mA |
| Number of MCB 1P (3) | 2pcs C332 |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 25 |
| EngineerWidth | 736 |
| EngineerHeight | 880 |
| EngineerDepth | 475 |
