Distribution boards fixed connection 250A

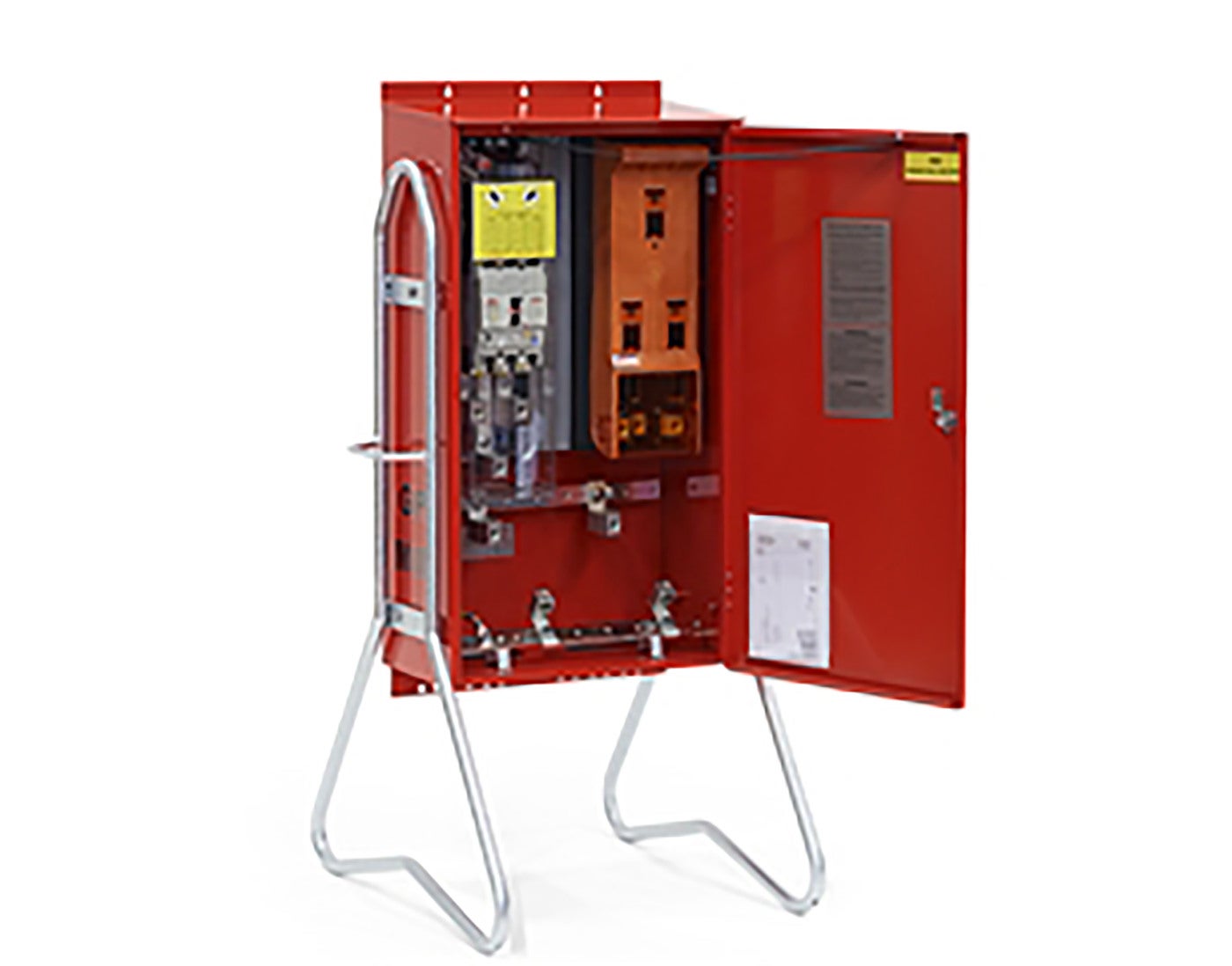

Power distribution (without energy measurement) 250A built in the GPI-system. This distribution assembly is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. This model is also equipped with output for onward feed of the earth cable (Type AKKJ) 16-95 mm² and 95-240 mm². Power distribution 250A GPI/EB/1xSLK400
E-number
E2469130
Article number
353912
Support
Materials Sheet metal
Standard EN61439-3
Short-circuit current [kA] 17kA
Frequency [Hz] 50Hz
Color Red
Rated current [A] 250A
Rated voltage [V AC] 230/400V AC
Degree of protection [IP] IP44
Name POWER DISTRIBUTION 250A GPI/EB
E-number E2469130
Article number 353912
Type designation FSF 250 GPI/EB/10 KRAN
NetProductWeight 60

More variants of Distribution boards fixed connection 250A

E-number Article number Type designation CEE socket outlet 16A Number of MCB 1P (1) Number of MCB 1P (2) Number of Schuko[pcs] Number of RCCB [pcs] 1 CEE socket outlet 32A CEE socket outlet 63A Number of RCCB [pcs] 2 Number of MCB 1P (3) NetProductWeight EngineerWidth EngineerHeight EngineerDepth
POWER DISTRIBUTION 250A GPI/EB E2469121 353724 FSF 250 GPI/EB/11/23303 3pcs 5P 16A 230/400V 3pcs C113 3pcs C316 3pcs 3pcs 4P 63A 3pcs 5P 32A 230/400V 2pcs 5P 63A 230/400V 2pcs 4P 63A 300mA 2pcs C332 166 900 1662 506
POWER DISTRIBUTION 250A GPI/EB E2469130 353912 FSF 250 GPI/EB/10 KRAN 60
