Current trafo box STP

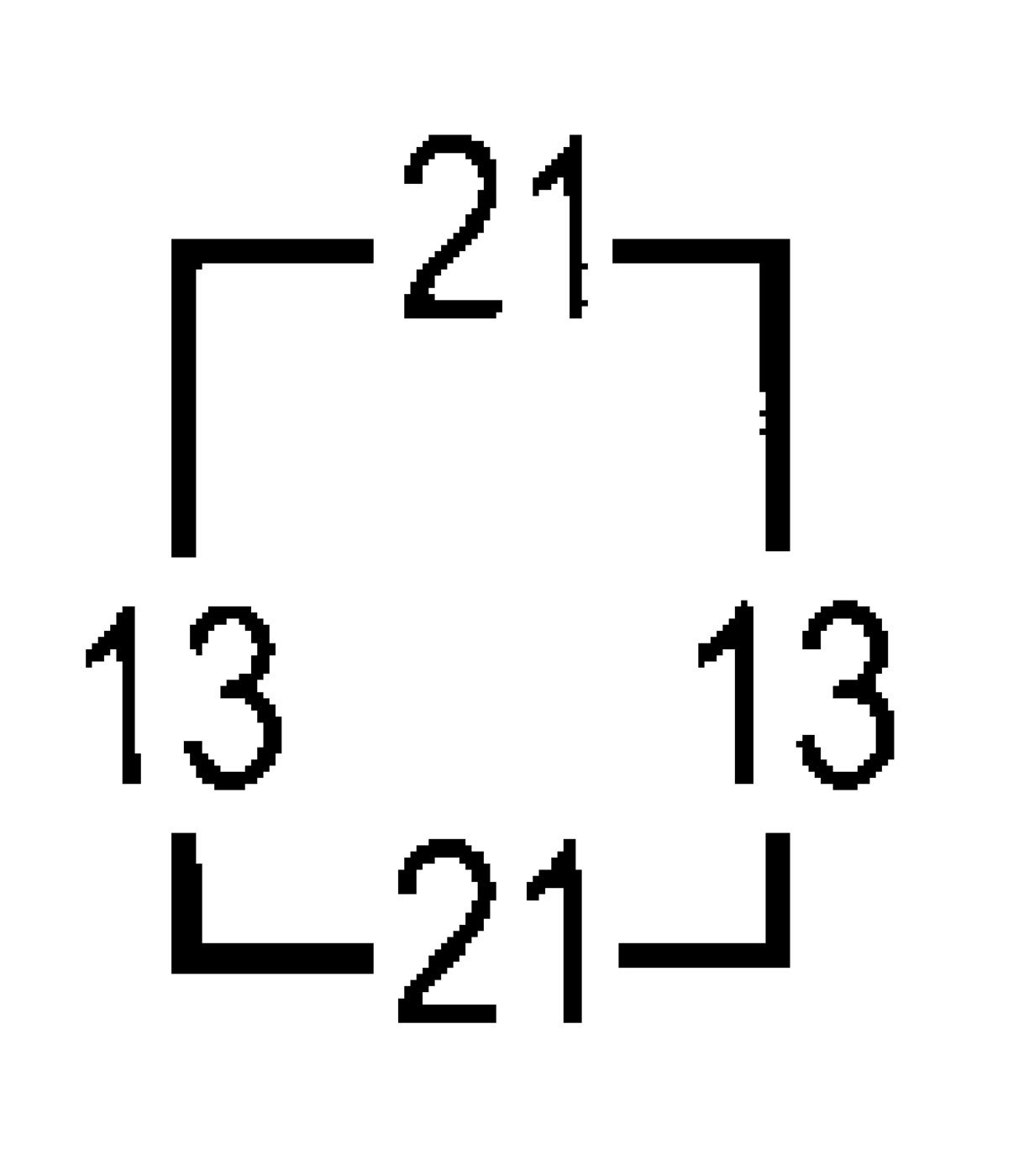

Supplied excluding insert plate and current transformers,besides E23 843 60 that will be delivered including insert plate Current transformer box type 4, flange 21 up/down, flange 13 in side

E-number
E2384354

Article number
2384354

Support

CURRENT TRANSFORMER ENCLOSURE 1 SP

E-number
E2384351

Article number
2384351
CURRENT TRANSFORMER ENCLOSURE 4 SP

E-number
E2384354

Article number
2384354
CURRENT TRANSFORMER ENCLOSURE 6 SP

E-number
E2384356

Article number
2384356
CURRENT TRANSFORMER ENCLOSURE 7 SP

E-number
E2384357

Article number
2384357
CURRENT TRANSFORMER ENCLOSURE 8 SP

E-number
E2384360

Article number
2384360

Materials	Sheet steel
Standard	EN61439-3
Color	Grey
RAL-number	RAL7035
Degree of protection [IP]	IP43

Name	CURRENT TRANSFORMER ENCLOSURE 4 SP
E-number	E2384354
Article number	2384354
Type designation	STP 4
NetProductWeight	4.5
EngineerWidth	330
EngineerHeight	330
EngineerDepth	175

More variants of Current trafo box STP

E-number

E2384351

Article number

2384351

Type designation

STP 1

Flanges

1x21

NetProductWeight

3.7

EngineerWidth

275

EngineerHeight

330

EngineerDepth

175

E-number

E2384354

Article number

2384354

Type designation

STP 4

NetProductWeight

4.5

EngineerWidth

330

EngineerHeight

330

EngineerDepth

175

E-number

E2384356

Article number

2384356

Type designation

STP 6

NetProductWeight

6.3

EngineerWidth

440

EngineerHeight

330

EngineerDepth

175

E-number

E2384357

Article number

2384357

Type designation

STP 7

NetProductWeight

6.2

EngineerWidth

440

EngineerHeight

330

EngineerDepth

175

E-number

E2384360

Article number

2384360

Type designation

STPI-8

NetProductWeight

12.5

EngineerWidth

325

EngineerHeight

440

EngineerDepth

240

More variants of Current trafo box STP

E-number	Article number	Type designation	Flanges	NetProductWeight	EngineerWidth	EngineerHeight	EngineerDepth
E2384351	2384351	STP 1	1x21	3.7	275	330	175
E2384354	2384354	STP 4		4.5	330	330	175
E2384356	2384356	STP 6		6.3	440	330	175
E2384357	2384357	STP 7		6.2	440	330	175
E2384360	2384360	STPI-8		12.5	325	440	240

Accessories for Current trafo box STP

E-number

E2388601

Article number

2388601

Type designation

TRI 1

E-number

E2388602

Article number

2388602

Type designation

TRI 2

E-number

E2388604

Article number

2388604

Type designation

TRI 4

E-number

E2645003

Article number

2645003

Type designation

E-number

E2645007

Article number

2645007

Type designation

E-number

E2645115

Article number

2645115

Type designation

KF 121-60

E-number

E2645125

Article number

2645125

Type designation

KF 221-56

E-number

E2645145

Article number

2645145

Type designation

E-number

E2645151

Article number

2645151

Type designation

E-number

E2645153

Article number

2645153

Type designation

E-number

E2645161

Article number

2645161

Type designation

E-number

E2646093

Article number

2646093

Type designation

E-number

E2646094

Article number

2646094

Type designation

DM 21

Accessories for Current trafo box STP

Name	E-number	Article number	Type designation	Description
CURRENT TRANSFOMER BOX INS 1 SP	E2388601	2388601	TRI 1	Insert for current transformer box type 1
CURRENT TRANSFOMER BOX INS 2 SP	E2388602	2388602	TRI 2	Insert for current transformer box type 4
CURRENT TRANSFOMER BOX INS 4 SP	E2388604	2388604	TRI 4	Insert for current transformer box type 6 and 7
CABLE SPREADER W CLAMP PF 1301-38	E2645003	2645003		Cable spreder with clamp PF1301-38
CABLE SPREADER W CLAMP PF 1302-38	E2645007	2645007		Cable spreder with clamp PF1302-38
CABLE SPREADER 121-60	E2645115	2645115	KF 121-60	Cable spreader with clamp 121-60
CABLE SPREADER 221-56	E2645125	2645125	KF 221-56	Cable spreader with clamp 221-56
CABLE SPREADER W CLAMP KF 133-60	E2645145	2645145		Cable spreader with clamp KF 133-60
CABLE SPREADER W CLAMP KF 233-60	E2645151	2645151		Cable spreader with clamp KF 233-60
CABLE SPREADER W CLAMP KF 233-68	E2645153	2645153		Cable spreader with clamp KF 233-68
CABLE SPREADER W CLAMP KF 333-56	E2645161	2645161		Cable spreader with clamp KF 333-56
NUT DOUBLE DM 13	E2646093	2646093		Double nut DM13
NUT DOUBLE M8 DM 21	E2646094	2646094	DM 21	Double nut DM21
