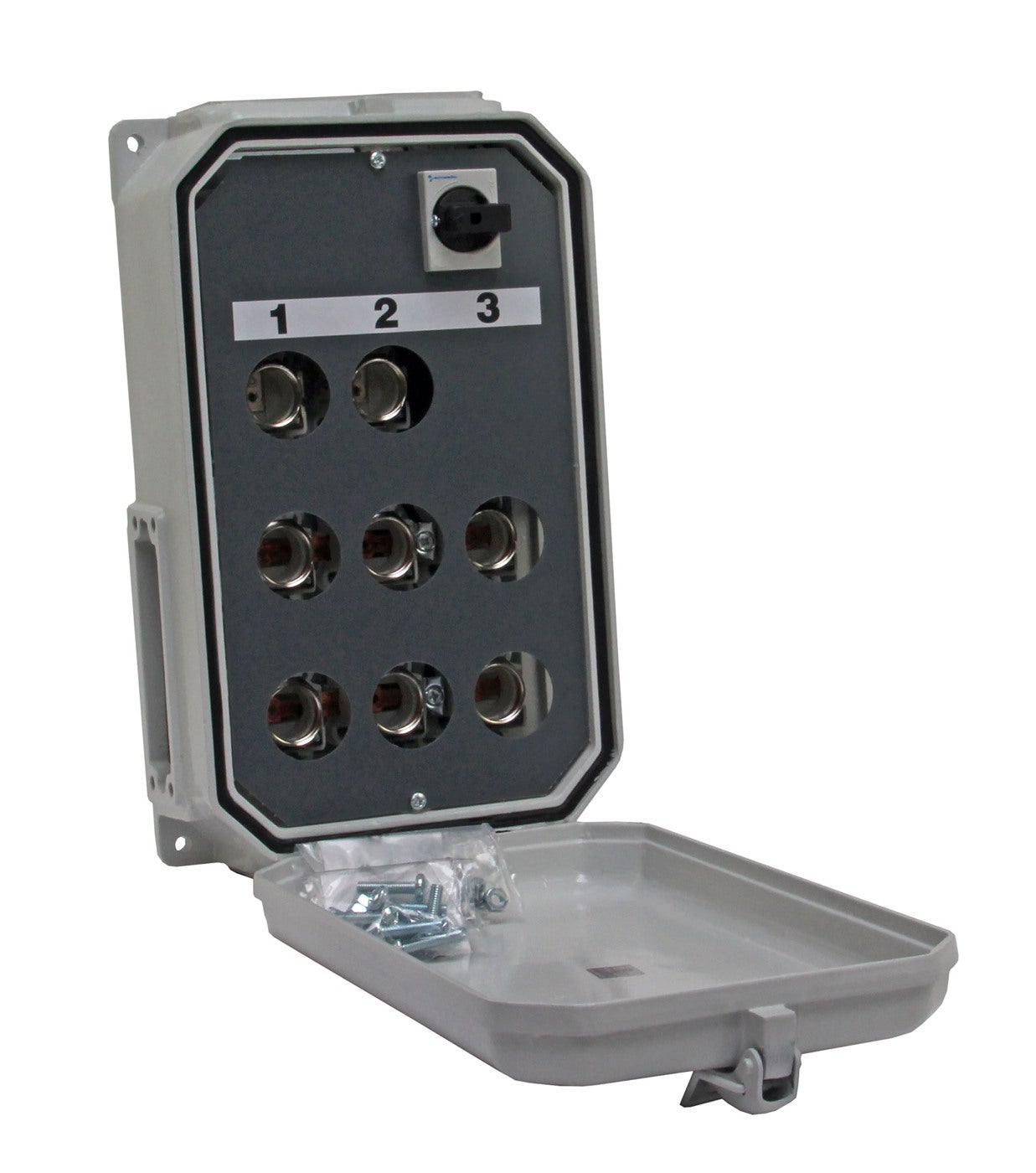

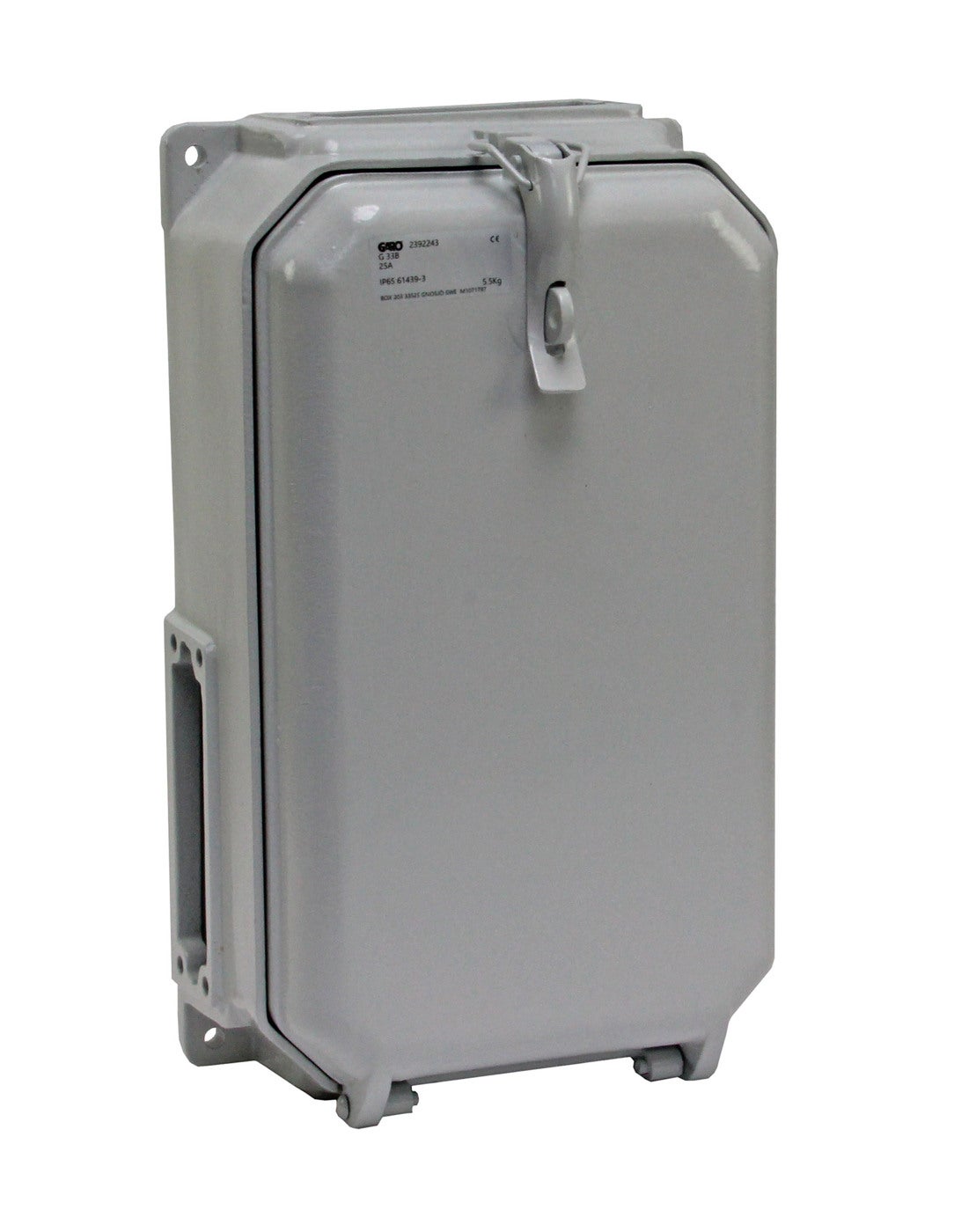

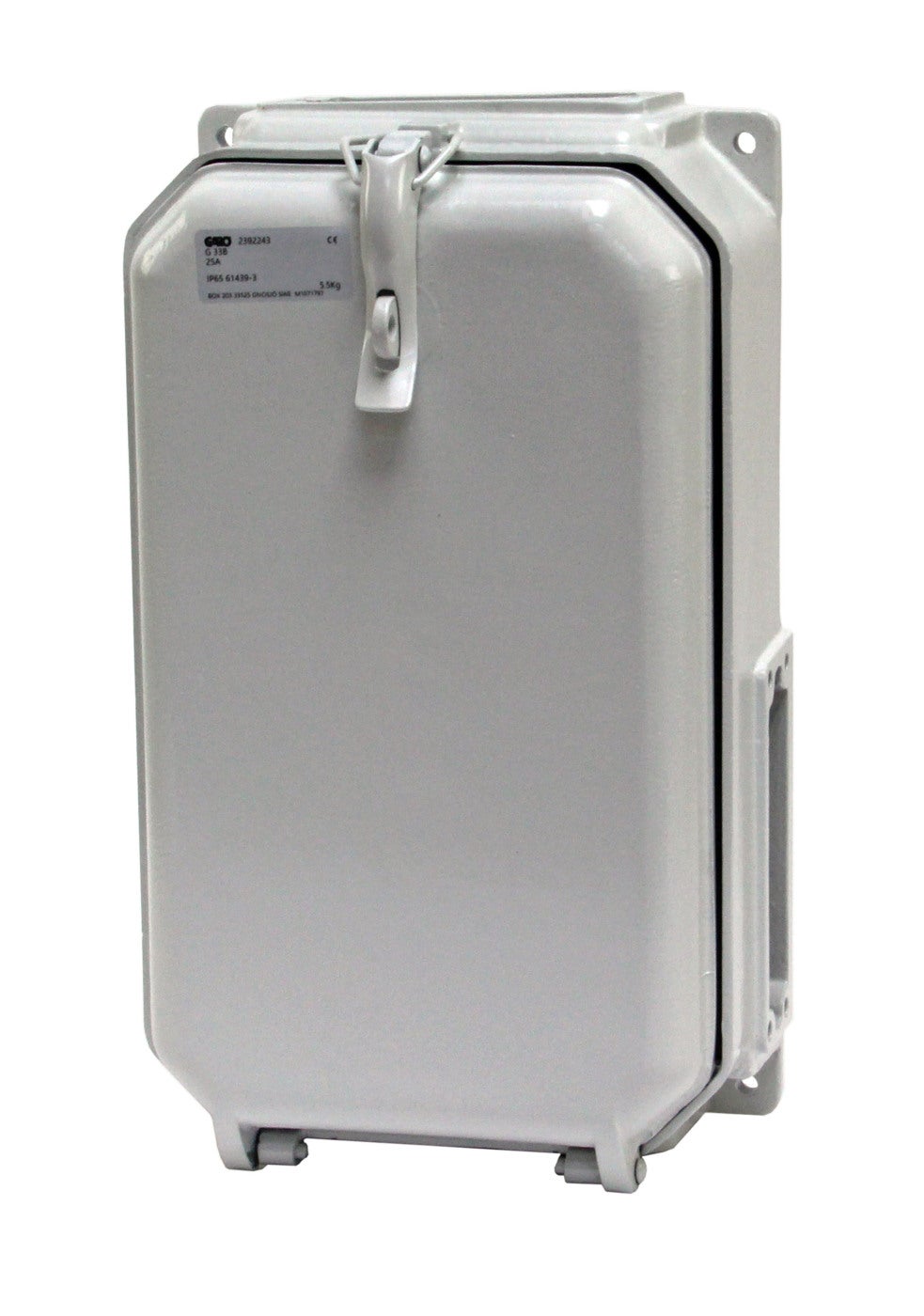

Switchboards for fuse base DII with main switch H355
1 and 3-pole fuse protected groups positioned on one row for 3-phase connection. Equipped with switch, disconnectable neutral rail and earth conductor rail. Switchboard with switch 25A 2pcs 1-pole and 2groups 3-pole fuse base alloy
E-number
E2392243
E2392243
Article number
2392243
2392243
| Standard | EN61439-3 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 690V AC |
| RAL-number | RAL7044 |
| Fuse size | DII |
| Degree of protection [IP] | IP65 |
| EngineerHeight | 355 |
| EngineerDepth | 120 |
| Name | SWITCHBOARD W SW 25A 2/1+2/3 A LM |
|---|---|
| E-number | E2392243 |
| Article number | 2392243 |
| Type designation | G 33B |
| Number of poles | 2/1+2/3 |
| NetProductWeight | 5.6 |
| EngineerWidth | 210 |
