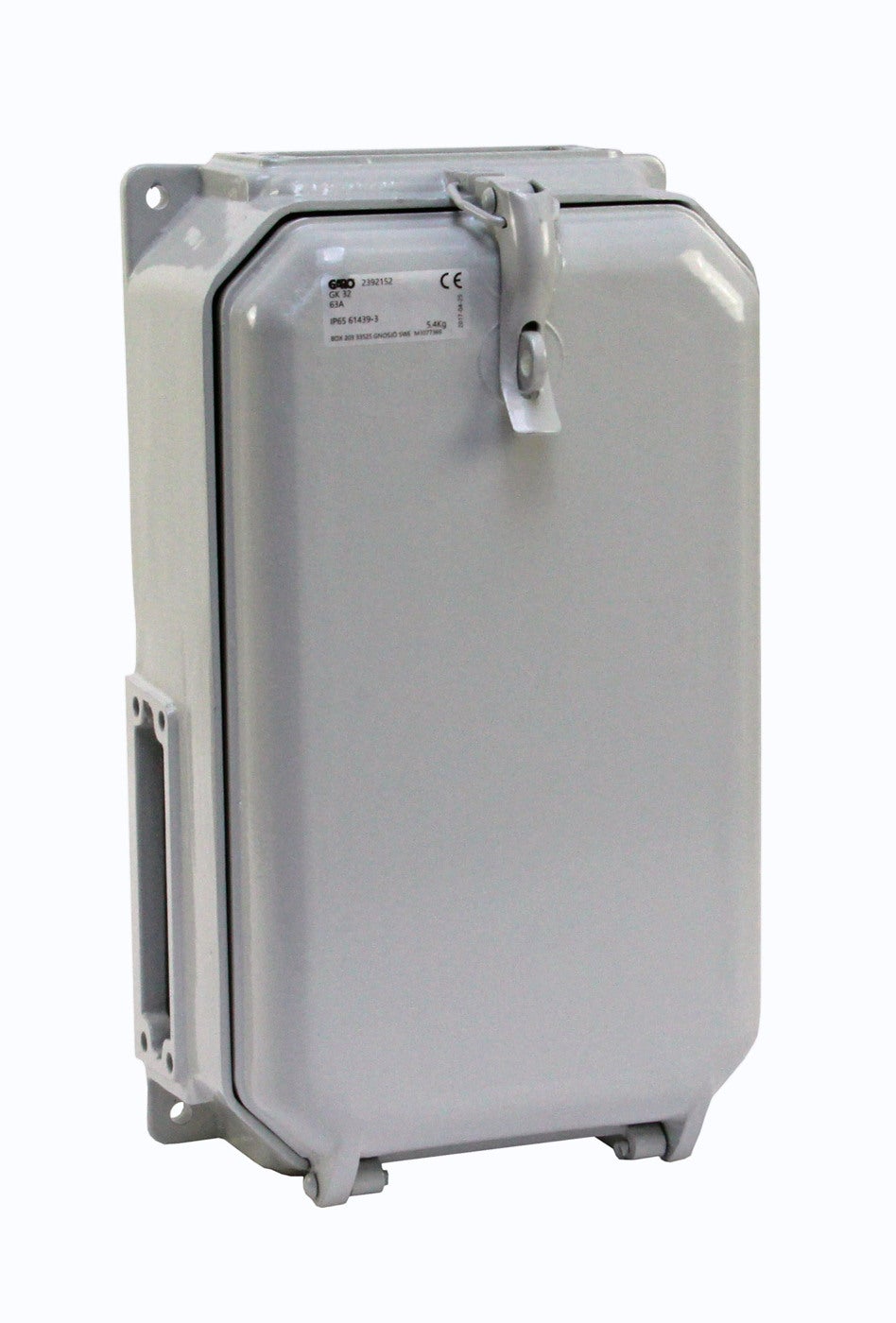

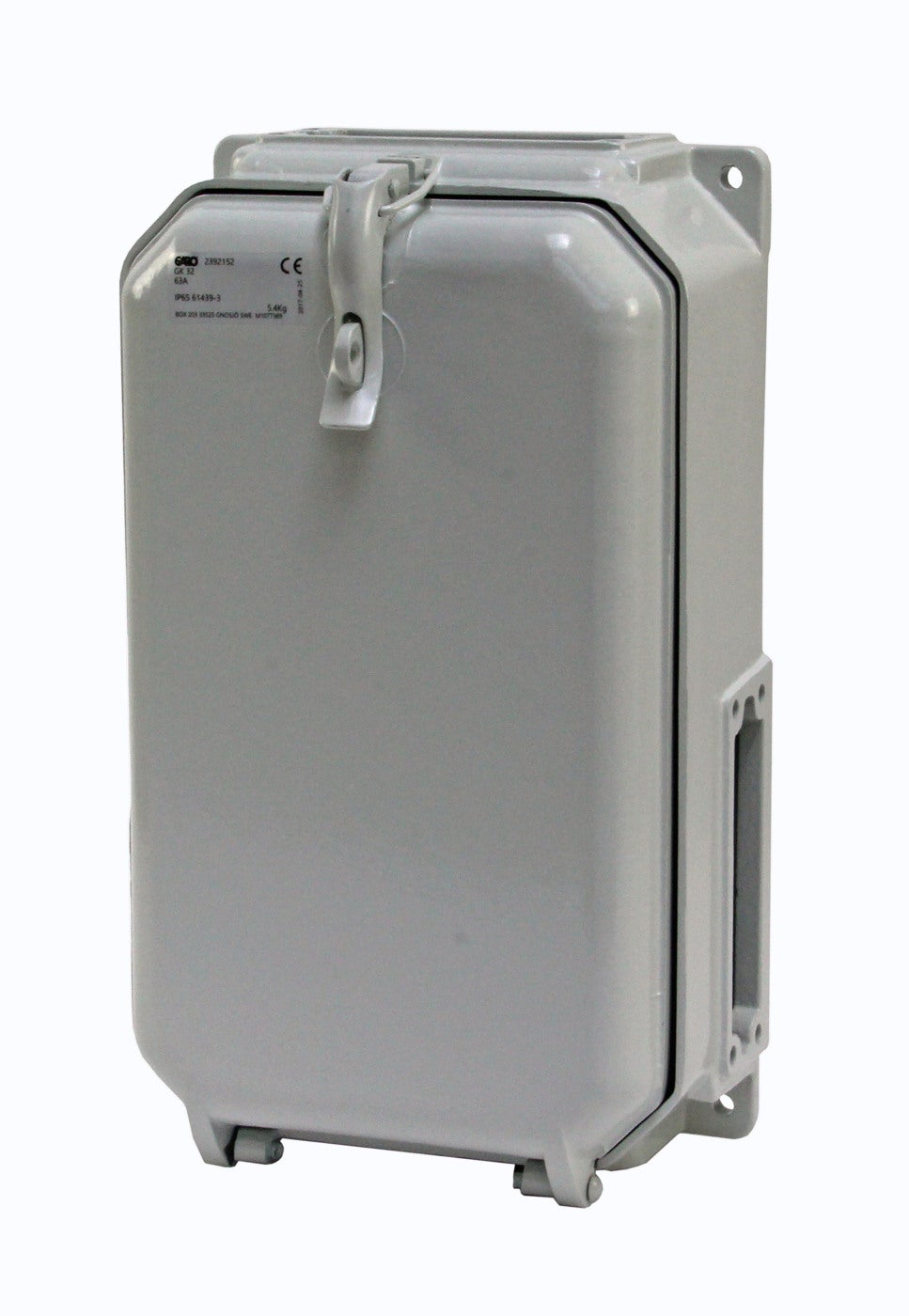

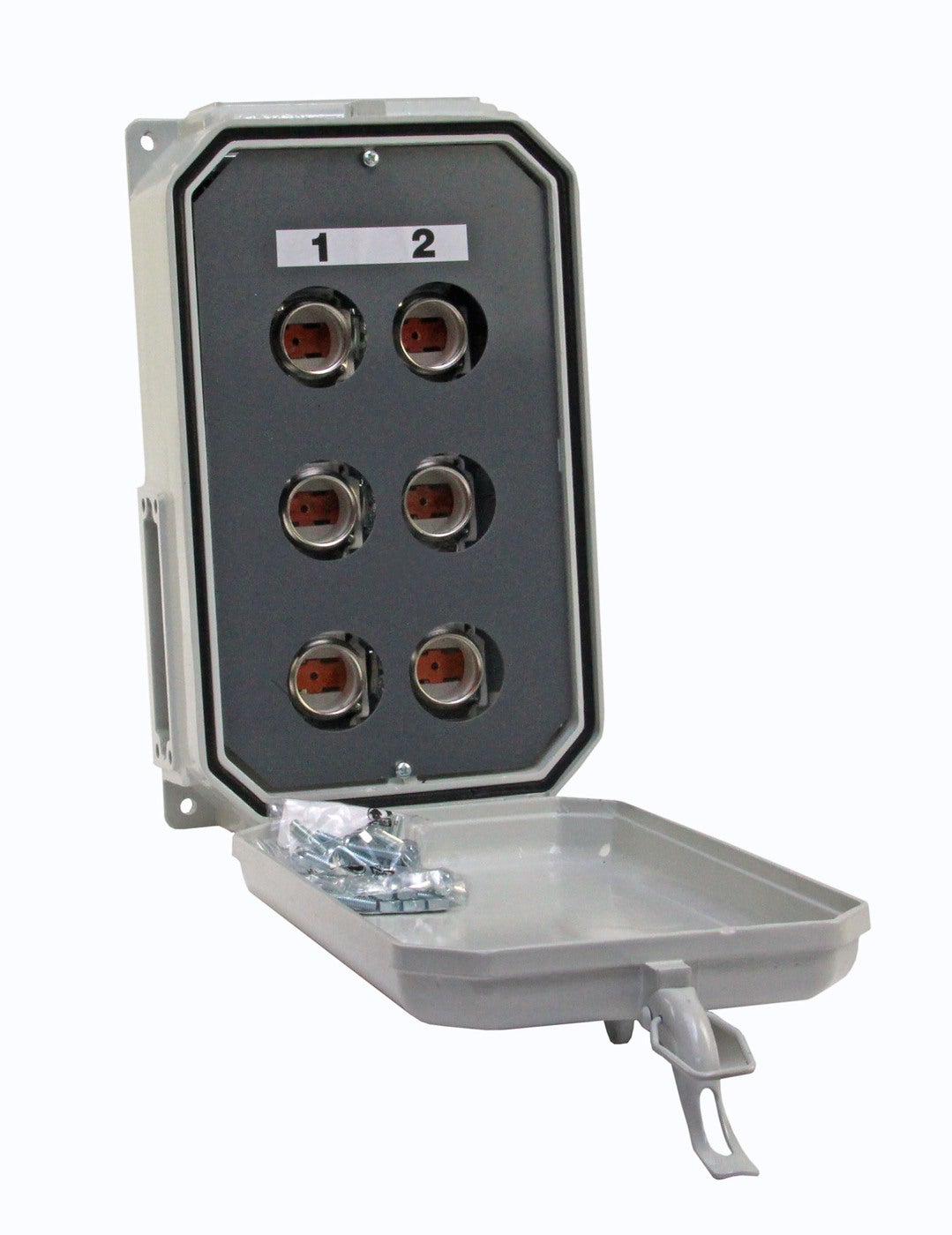

Switchboards fuse base DIII H355

1 and 3-pole fuse protected groups positioned on one row for 3-phase connection. Equipped with disconnectable neutral rail and earth conductor rail. Height 355mm. Switchboard 63A 2groups 3-pole fuse base alloy
E-number
E2392152
Article number
2392152
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Light metal
Rated current [A] 63A
Rated voltage [V AC] 690V AC
RAL-number RAL7044
Fuse size DIII
Degree of protection [IP] IP65
EngineerHeight 355
EngineerDepth 120
Name SWITCHBOARD 63A 2/3 A LM
E-number E2392152
Article number 2392152
Type designation GK 32
Number of poles 2/3
NetProductWeight 5.6
EngineerWidth 210

More variants of Switchboards fuse base DIII H355

E-number Article number Type designation Number of poles NetProductWeight EngineerWidth
SWITCHBOARD 63A 2/3 A LM E2392152 2392152 GK 32 2/3 5.6 210

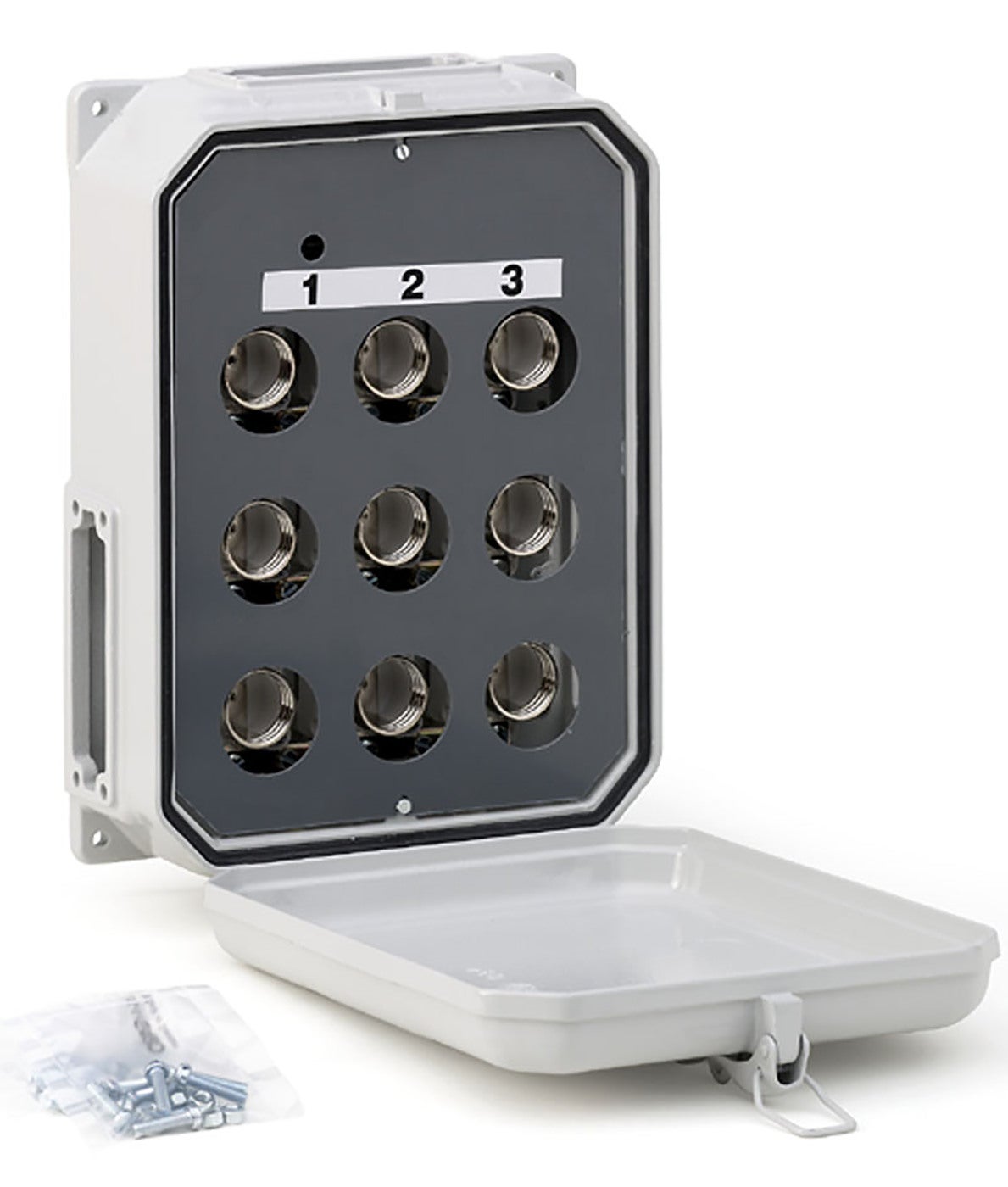

SWITCHBOARD 63A 3/3 A LM E2392153 2392153 GK 33 3/3 6.7 260

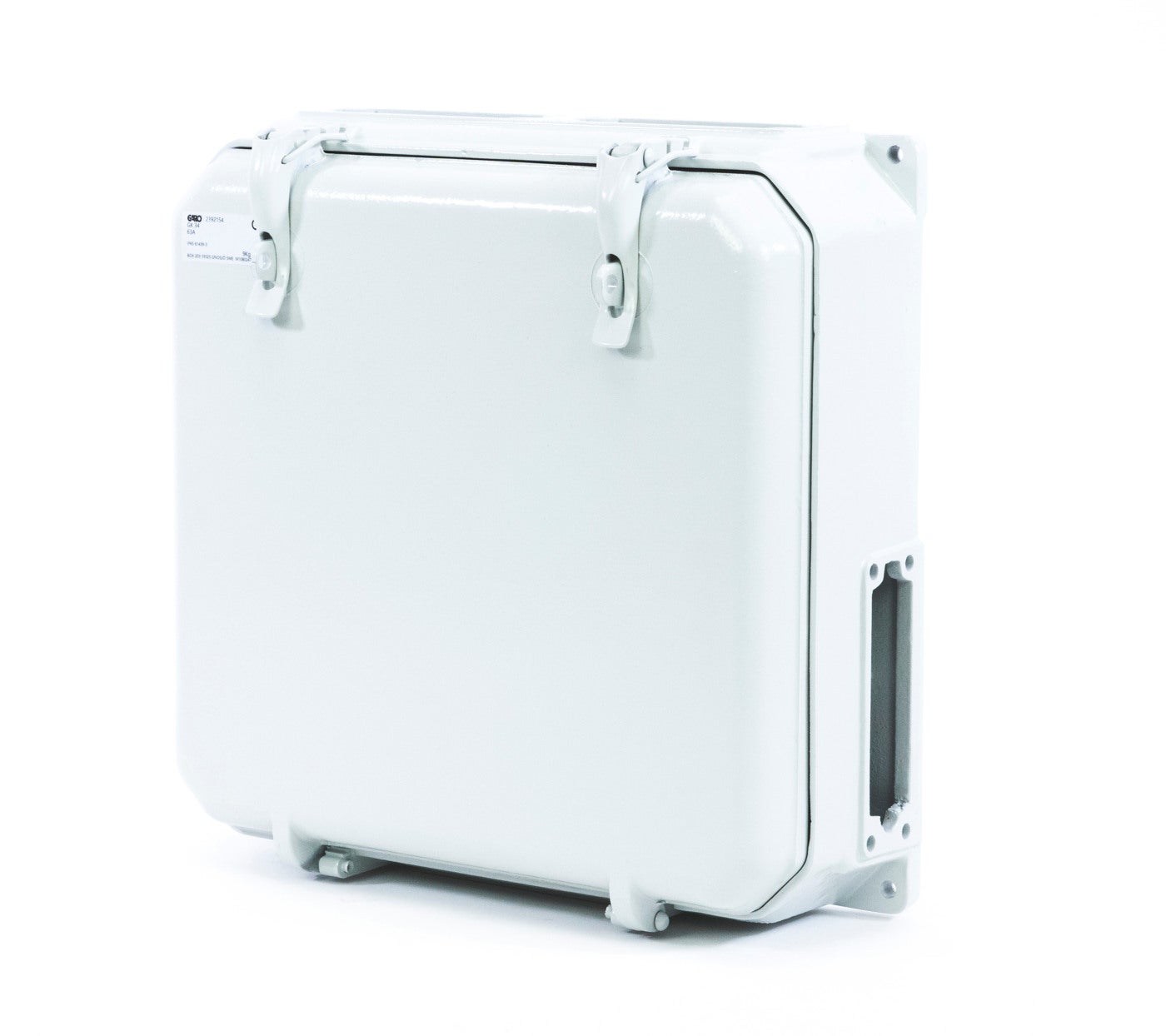

SWITCHBOARD 63A 4/3 A LM E2392154 2392154 GK 34 4/3 9.2 360
