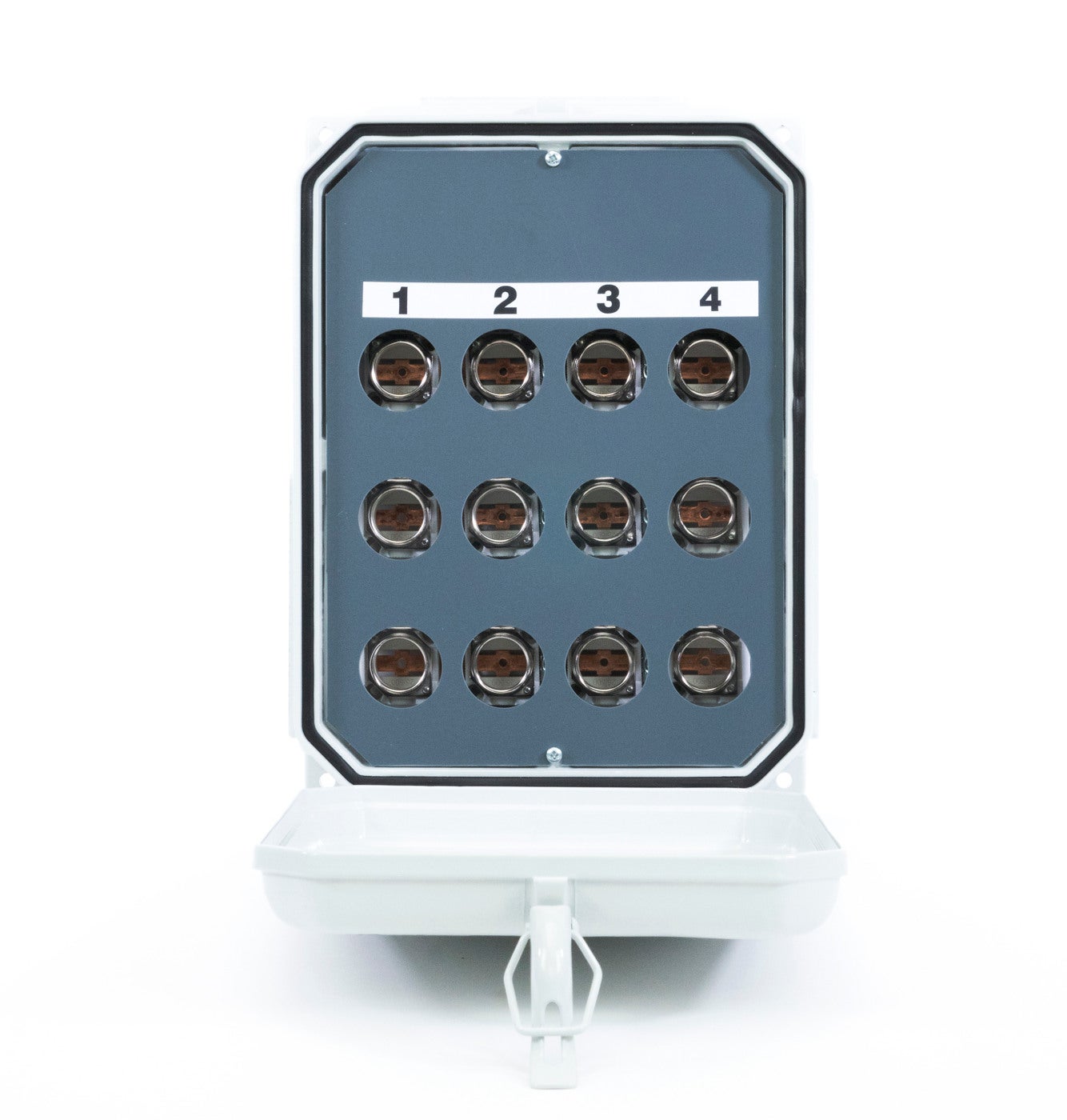

  • SWITCHBOARD 25A 4/3 A LM - 2

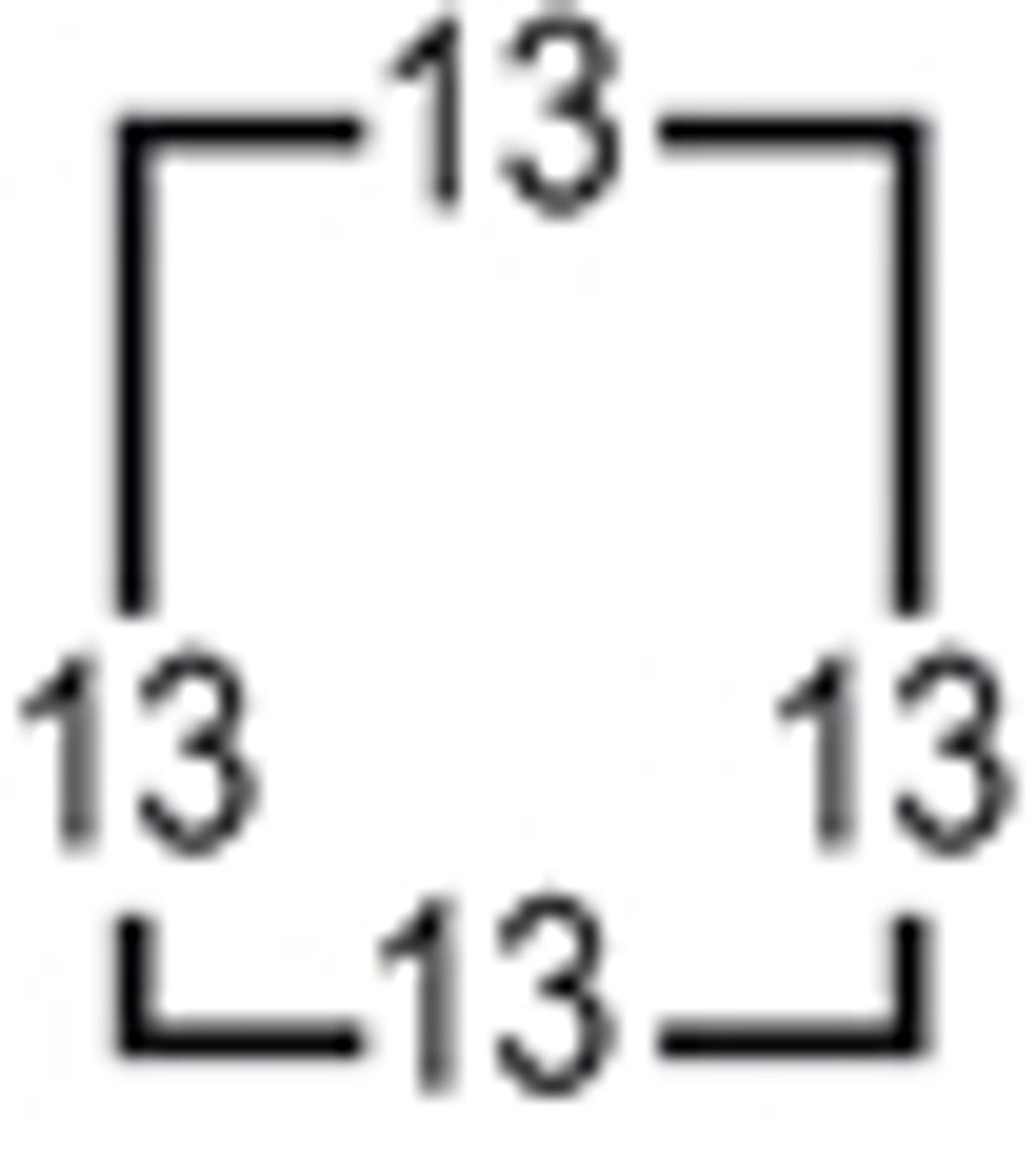

  • SWITCHBOARD 25A 4/3 A LM - 3

Switchboards fuse base DII H355

1 and 3-pole fuse protected groups positioned on one row for 3-phase connection. Equipped with disconnectable neutral rail and earth conductor rail. Height 355mm. Switchboard 25A 4groups 3-pole fuse base alloy
E-number
E2392134
Article number
2392134
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Light metal
Rated current [A] 25A
Rated voltage [V AC] 690V AC
RAL-number RAL7044
Fuse size DII
Degree of protection [IP] IP65
EngineerHeight 355
EngineerDepth 120
Name SWITCHBOARD 25A 4/3 A LM
E-number E2392134
Article number 2392134
Type designation G 34
Number of poles 4/3
NetProductWeight 6.2
EngineerWidth 260

More variants of Switchboards fuse base DII H355

E-number Article number Type designation Number of poles NetProductWeight EngineerWidth
SWITCHBOARD 25A 3/3 A LM E2392133 2392133 G 33 3/3 5.7 210
SWITCHBOARD 25A 4/3 A LM E2392134 2392134 G 34 4/3 6.2 260
SWITCHBOARD 25A 6/3 A LM E2392136 2392136 G 36 6/3 9.7 360
