Metal cabinets IP30

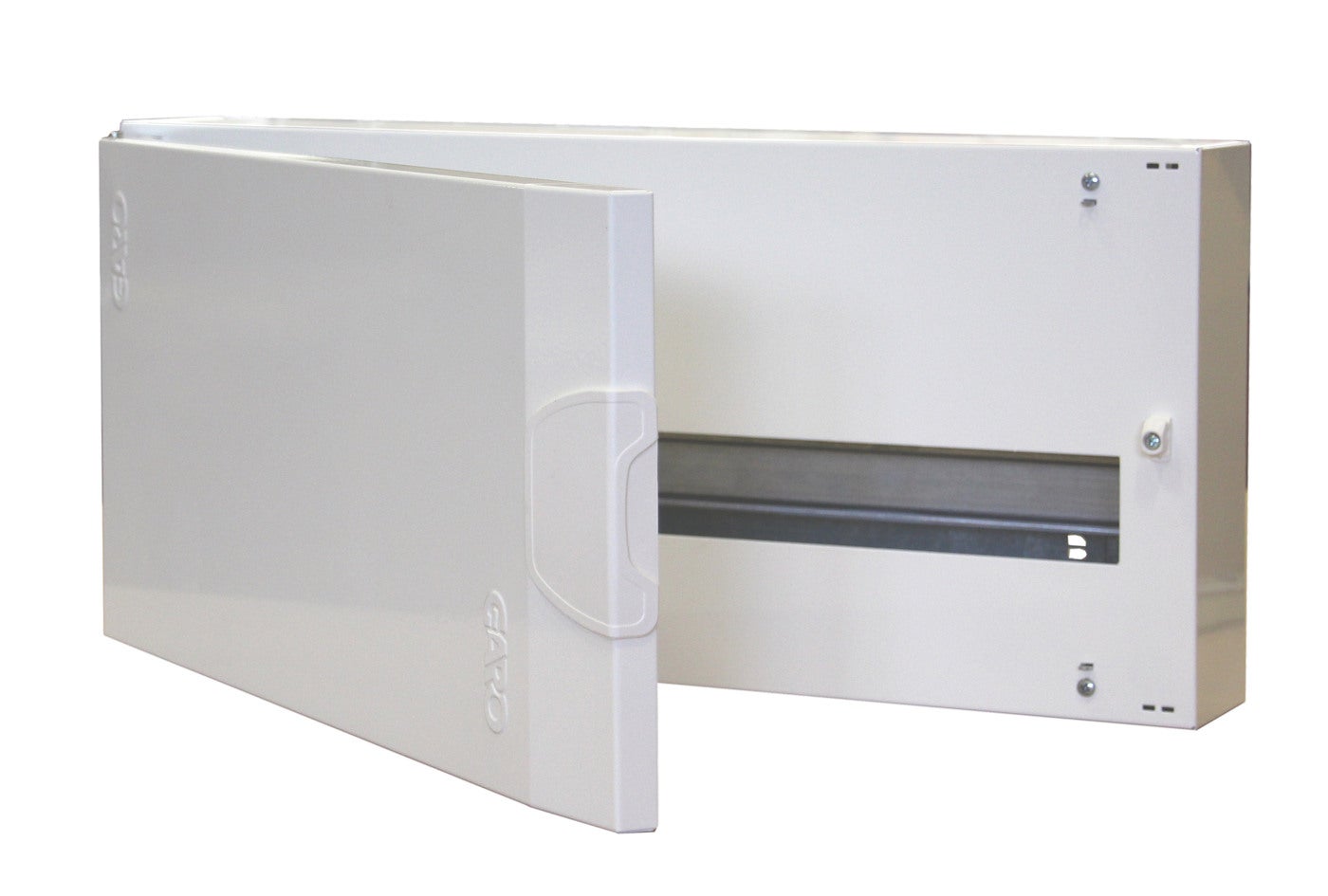

GARO’s metal cabinets for surface mounting. Cabinets are available from 1-row up to 5-row with 14, 20 and 25 module slots per row. The entire interior is held in place by a simple bracket, which opens out to 90° for installation or adjustment. This provides a comfortable workspace and is a great help during final assembly of the outgoing cables. This contributes to safeguarding the complete cabinet in terms of the risk of flashover and the onset of arcing between poorly connected conductors. The depth behin CONSUMER UNIT METAL SURFACE 2R50M

E-number
E2290027

Article number
356026

Support

Standard	EN61439-3
Short-circuit current [kA]	10kA
Frequency [Hz]	50Hz
Housing material	Sheet metal
Color	White
Rated voltage [V AC]	400V AC
Mounting method	Surface mounted
Modelltype	NUM
Lock	No
RAL-number	RAL9010
DIN-rail	Yes
Further feeding [A]	Further feeding 63A
Mountingplate	No
Type of door	Single
Degree of protection [IP]	IP30
EngineerDepth	108

Name	CONSUMER UNIT METAL SURFACE 2R50M
E-number	E2290027
Article number	356026
Type designation	NUML 50-2
Rated current [A]	50A
Number of modules	50
Connection N [pcs]	11+11+11
Connection PE [pcs]	12+25
Number of rows	2
NetProductWeight	5.6
EngineerWidth	515
EngineerHeight	370

Instruction Sheet

More variants of Metal cabinets IP30

E-number

E2290019

Article number

356018

Type designation

NUML 14-1

Rated current [A]

35A

Number of modules

Connection N [pcs]

Connection PE [pcs]

Number of rows

NetProductWeight

2.8

EngineerWidth

335

EngineerHeight

245

E-number

E2290020

Article number

356019

Type designation

NUML 28-2

Rated current [A]

50A

Number of modules

Connection N [pcs]

Connection PE [pcs]

Number of rows

NetProductWeight

3.8

EngineerWidth

335

EngineerHeight

370

E-number

E2290021

Article number

356020

Type designation

NUM 42-3

Rated current [A]

50A

Number of modules

Connection N [pcs]

15+16

Connection PE [pcs]

Number of rows

NetProductWeight

5.4

EngineerWidth

335

EngineerHeight

549

E-number

E2290022

Article number

356021

Type designation

NUML 20-1

Rated current [A]

35A

Number of modules

Connection N [pcs]

Connection PE [pcs]

Number of rows

NetProductWeight

3.5

EngineerWidth

418

EngineerHeight

245

E-number

E2290023

Article number

356022

Type designation

NUML 40-2

Rated current [A]

50A

Number of modules

Connection N [pcs]

15+16

Connection PE [pcs]

Number of rows

NetProductWeight

4.6

EngineerWidth

418

EngineerHeight

370

E-number

E2290024

Article number

356023

Type designation

NUM 60-3

Rated current [A]

50A

Number of modules

Connection N [pcs]

15+16+11

Connection PE [pcs]

25+11

Number of rows

NetProductWeight

6.5

EngineerWidth

418

EngineerHeight

549

E-number

E2290025

Article number

356024

Type designation

NUM 80-4

Rated current [A]

50A

Number of modules

Connection N [pcs]

15+16+11+16

Connection PE [pcs]

24+11+16

Number of rows

NetProductWeight

EngineerWidth

418

EngineerHeight

749

E-number

E2290026

Article number

356025

Type designation

NUM 100-5

Rated current [A]

50A

Number of modules

100

Connection N [pcs]

15+16+11+15+16

Connection PE [pcs]

24+11+26

Number of rows

NetProductWeight

11.1

EngineerWidth

418

EngineerHeight

875

E-number

E2290027

Article number

356026

Type designation

NUML 50-2

Rated current [A]

50A

Number of modules

Connection N [pcs]

11+11+11

Connection PE [pcs]

12+25

Number of rows

NetProductWeight

5.6

EngineerWidth

515

EngineerHeight

370

E-number

E2200918

Article number

356098

Type designation

NUML 25-1

Rated current [A]

35A

Number of modules

Connection N [pcs]

Connection PE [pcs]

Number of rows

NetProductWeight

EngineerWidth

515

EngineerHeight

245

More variants of Metal cabinets IP30

E-number	Article number	Type designation	Rated current [A]	Number of modules	Connection N [pcs]	Connection PE [pcs]	Number of rows	NetProductWeight	EngineerWidth	EngineerHeight
E2290019	356018	NUML 14-1	35A	14	16	16	1	2.8	335	245
E2290020	356019	NUML 28-2	50A	28	16	16	2	3.8	335	370
E2290021	356020	NUM 42-3	50A	42	15+16	26	3	5.4	335	549
E2290022	356021	NUML 20-1	35A	20	16	16	1	3.5	418	245
E2290023	356022	NUML 40-2	50A	40	15+16	26	2	4.6	418	370
E2290024	356023	NUM 60-3	50A	60	15+16+11	25+11	3	6.5	418	549
E2290025	356024	NUM 80-4	50A	80	15+16+11+16	24+11+16	4	9	418	749
E2290026	356025	NUM 100-5	50A	100	15+16+11+15+16	24+11+26	5	11.1	418	875
E2290027	356026	NUML 50-2	50A	50	11+11+11	12+25	2	5.6	515	370
E2200918	356098	NUML 25-1	35A	25	17	16	1	4	515	245

Accessories for Metal cabinets IP30

E-number

E2178149

Article number

107378

Type designation

TB 57

E-number

E2142370

Article number

110387

Type designation

GBB 3-06-10

E-number

E2142371

Article number

110390

Type designation

GBB 3-09-10

E-number

Article number

110393

Type designation

GBB 3-12-10

E-number

E2142372

Article number

110394

Type designation

GBB 3-13-10

E-number

E2142373

Article number

110395

Type designation

GBB 3-14-10

E-number

E2142375

Article number

110402

Type designation

GBB 3-21-10

E-number

E2142376

Article number

110405

Type designation

GBB 3-25-10

E-number

E2142379

Article number

110411

Type designation

GBB 3N-57-16

E-number

E2142380

Article number

110414

Type designation

GBB 1-57-10

E-number

E2142381

Article number

110415

Type designation

GBB 1N-57-16

E-number

E2142382

Article number

110417

Type designation

GBBEP 3-10

E-number

E2142383

Article number

110418

Type designation

GBBEP 4-16

E-number

E2201605

Article number

110586

Type designation

PB-S

E-number

E1693384

Article number

1693384

Type designation

E-number

E2142849

Article number

2142849

Type designation

ÖB 3

E-number

E2178150

Article number

2178150

Type designation

TB 13

E-number

E2178151

Article number

2178151

Type designation

TB 14

E-number

E2270794

Article number

2270794

Type designation

GF-1

E-number

E2270839

Article number

2270839

Type designation

NLT 1-120

E-number

E2270910

Article number

2270910

Type designation

NLT 1-42

E-number

E2270911

Article number

2270911

Type designation

NLT 1-75

E-number

2394822

Article number

2394822

Type designation

BFVS

E-number

E2142022

Article number

352006

Type designation

SPG 15 GRÖN

E-number

E2142023

Article number

352007

Type designation

SPB 15 BLÅ

E-number

E2142042

Article number

352129

Type designation

EN-L E314/N314

E-number

E2142043

Article number

352130

Type designation

EN-L N314/N314

E-number

E2142044

Article number

352131

Type designation

EN-L E621

E-number

E2142045

Article number

352132

Type designation

EN-S E310/N210

E-number

E2142046

Article number

352133

Type designation

EN-S N310/N210

E-number

E2142047

Article number

352134

Type designation

EN-S E621

E-number

2290064

Article number

352530

Type designation

RD REGELDISTANS NORM N14

E-number

E2142020

Article number

352531

Type designation

EN-M E/N210

E-number

E2290062

Article number

356067

Type designation

NLN3

Accessories for Metal cabinets IP30

Name	E-number	Article number	Type designation	Description
BLANKING STRIP 1M WHITE	E2178149	107378	TB 57	Blanking strip 57module white,1 meter.
BUSBAR PHASE 3PH 6M 10MM2	E2142370	110387	GBB 3-06-10	Busbar phase 3PH 6M 10MM2
BUSBAR PHASE 3PH 9M 10MM2	E2142371	110390	GBB 3-09-10	Busbar phase 3PH 9M 10MM2
BUSBAR PHASE 3PH 12M 10MM2		110393	GBB 3-12-10	Busbar phase 3PH 12M 10MM2
BUSBAR PHASE 3PH 13M 10MM2	E2142372	110394	GBB 3-13-10	Busbar phase 3PH 13M 10MM2
BUSBAR PHASE 3PH 14M 10MM2	E2142373	110395	GBB 3-14-10	Busbar phase 3PH 14M 10MM2
BUSBAR PHASE 3PH 20M 10MM2	E2142375	110402	GBB 3-21-10	Busbar phase 3PH 20M 10MM2
BUSBAR PHASE 3PH 25M 10MM2	E2142376	110405	GBB 3-25-10	Busbar phase 3PH 25M 10MM2
BUSBARS 3P+N 57M/16	E2142379	110411	GBB 3N-57-16	Busbars 3-phase+N 57-modules 16mm²
BUSBARS 1P 57M/10	E2142380	110414	GBB 1-57-10	Busbars 1-phase 57-modules 10mm²
BUSBARS 1P+N 57M/16	E2142381	110415	GBB 1N-57-16	Busbars 1-phase+N 57-modules 16mm²
ENDCAP BUSBARS 3P 10 TYPE D	E2142382	110417	GBBEP 3-10	Endcap for busbars 3-phase 10mm²
ENDCAP BUSBARS 4P 10 TYPE C	E2142383	110418	GBBEP 4-16	Endcap for busbars 4-phase 16mm²
SEALING FOR SCREWS 100PCS/BAG	E2201605	110586	PB-S	SEALING FOR SCREWS 100PCS/BAG
TOUCH UP PAINT WHITE	E1693384	1693384		Touch up paint white
WIRING BRIDGES 10/125 3P	E2142849	2142849	ÖB 3	Wiring bridges 3-phase 10mm²
BLANKING STRIP 13M	E2178150	2178150	TB 13	BLANKING STRIP 13 Modules
BLANKING STRIP 14M	E2178151	2178151	TB 14	BLANKING STRIP 14 Modules
PLASTIC POCKET GROUPSCH	E2270794	2270794	GF-1	Plastic pocket and group schedule.
NUMBERLIST 1-120	E2270839	2270839	NLT 1-120	Numberlist 1-120
NUMBERLIST 1-42	E2270910	2270910	NLT 1-42	Numberlist 1-42
NUMBERLIST 1-75	E2270911	2270911	NLT 1-75	Numberlist 1row 75modules
WHITE PAINT SPRAY	2394822	2394822	BFVS	White paint spray
TERMINAL Q. GREEN 16 4 2,5	E2142022	352006	SPG 15 GRÖN	Quick teminals Green 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm², completion for DIN-mounting
TERMINAL Q. BLUE 16 4 2,5	E2142023	352007	SPB 15 BLÅ	Quick teminals blue 1x2,5-16mm²,2x2,5-4mm² och 12x1,5-2,5mm²
TERMINAL Q.CONNECT L EN314L	E2142042	352129	EN-L E314/N314	Quick teminals PE/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT NN314L	E2142043	352130	EN-L N314/N314	Quick teminals N/N 3x2,5-16m² och 14x1,5-4mm²
TERMINAL Q.CONNECT L E	E2142044	352131	EN-L E621	Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
TERMINAL Q.CONNECT EN310S	E2142045	352132	EN-S E310/N210	uick teminals PE/N 3x2,5-16m² och 10x1,5-4mm
TERMINAL Q.CONNECT NN314L	E2142046	352133	EN-S N310/N210	Quick teminals N/N 2x2,5-16m² och 10x1,5-4mm²/3x2,5-16m² och 10x1,5-4mm²,
TERMINAL Q.CONNECT E621S	E2142047	352134	EN-S E621	Quick teminals PE 6x2,5-16m² och 21x1,5-4mm²
DISTANCE N14	2290064	352530	RD REGELDISTANS NORM N14	Distance N14 fits 20-modules bottombox
TERMINALS Q 2x16 10x1,5-4	E2142020	352531	EN-M E/N210	Quick teminals 2x16 10x1,5-4
LOCK KIT NLN3	E2290062	356067	NLN3	Locks NLN3
