SOCKET WALL 3P 32A LV

Sockets wall Low voltage 32A IP44

Sockets wall Low voltage 32A IP44 Wall socket low-voltage 3-poles 32A.
E-number
E2425725
Article number
2425725
Support
Housing material Plastic
Rated current [A] 32A
Wire flexible [mm²] 4-10mm²
Modelltype Low voltage
Wire solid [mm²] 4-10mm²
Degree of protection [IP] IP44
Name SOCKET WALL 3P 32A LV
E-number E2425725
Article number 2425725
Type designation UIBK 332 S
Frequency [Hz] 50/60Hz
Color Purple
Rated voltage [V AC] 20-25V AC
Number of poles 3P
Lock 0
RAL-number RAL4005

More variants of Sockets wall Low voltage 32A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Lock RAL-number

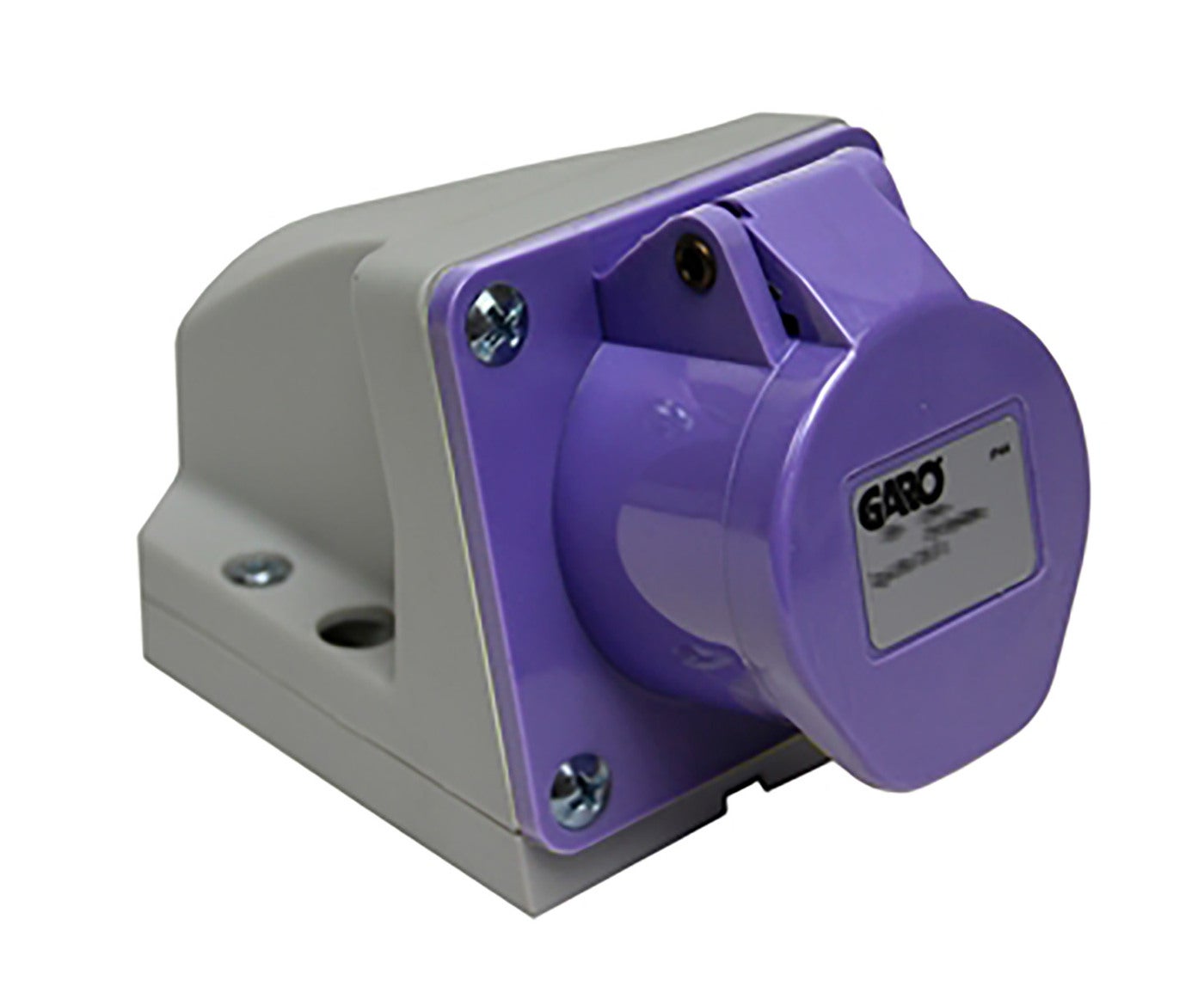

SOCKET WALL 2P 32A LV E2425722 2425722 UIBK 232 S 50/60Hz Purple 20-25V AC 2P 0 RAL4005

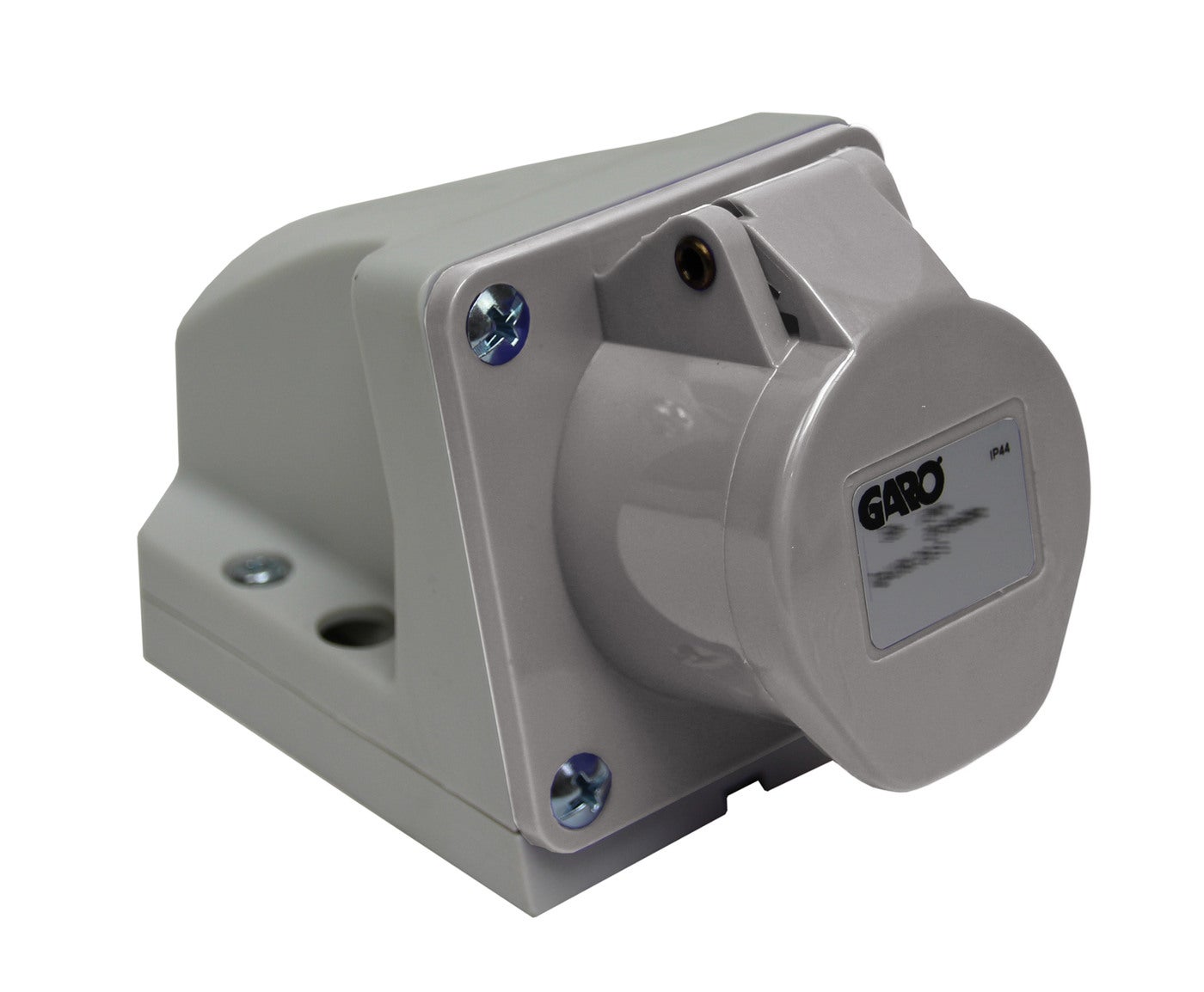

SOCKET WALL 2P 32A 10h LV E2425723 2425723 UIBK 232-10 S DC Grey 20-25,40-50V AC 2P RAL7046
SOCKET WALL 2P 32A 12h LV E2425724 2425724 UIBK 232-12 S 50/60Hz White 40-50V AC 2P RAL9016
SOCKET WALL 3P 32A LV E2425725 2425725 UIBK 332 S 50/60Hz Purple 20-25V AC 3P 0 RAL4005

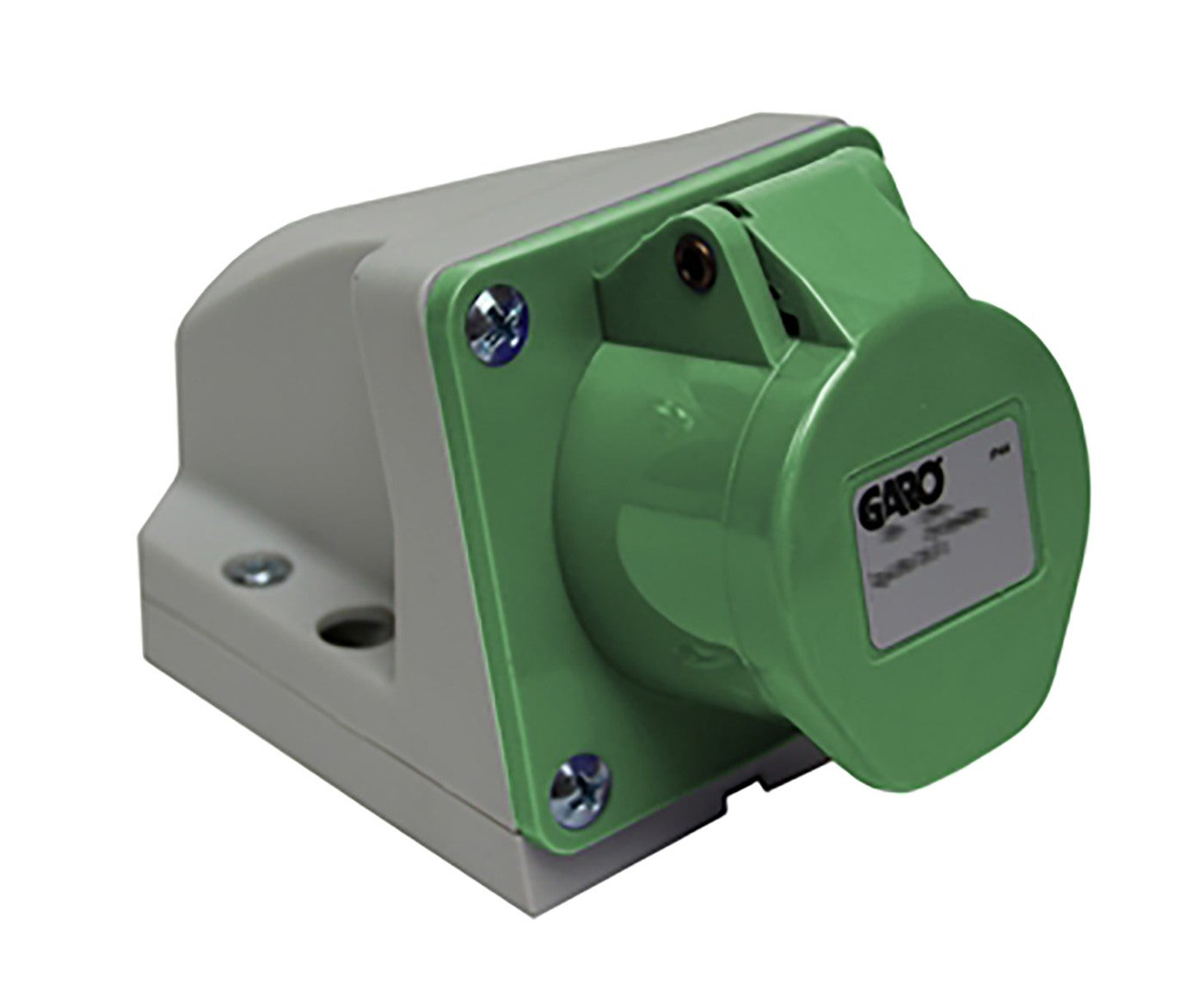

SOCKET WALL 3P 32A 10h LV E2425726 2425726 UIBK 332-4 S 100-200Hz Green 40-50V AC 3P 0 RAL6010

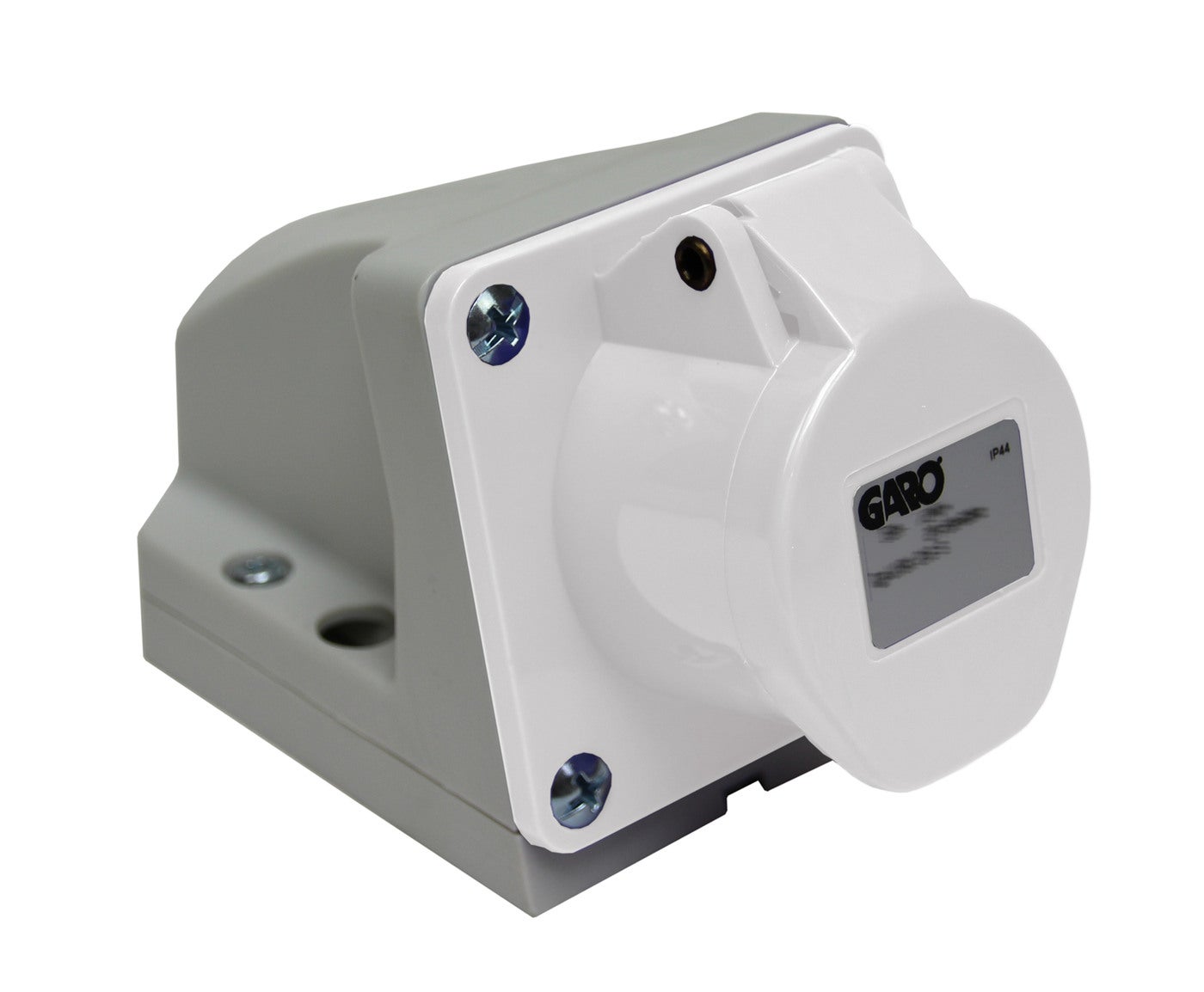

SOCKET WALL 3P 32A 12h LV E2425727 2425727 UIBK 332-12 S 50/60Hz White 40-50V AC 3P 0 RAL9016
