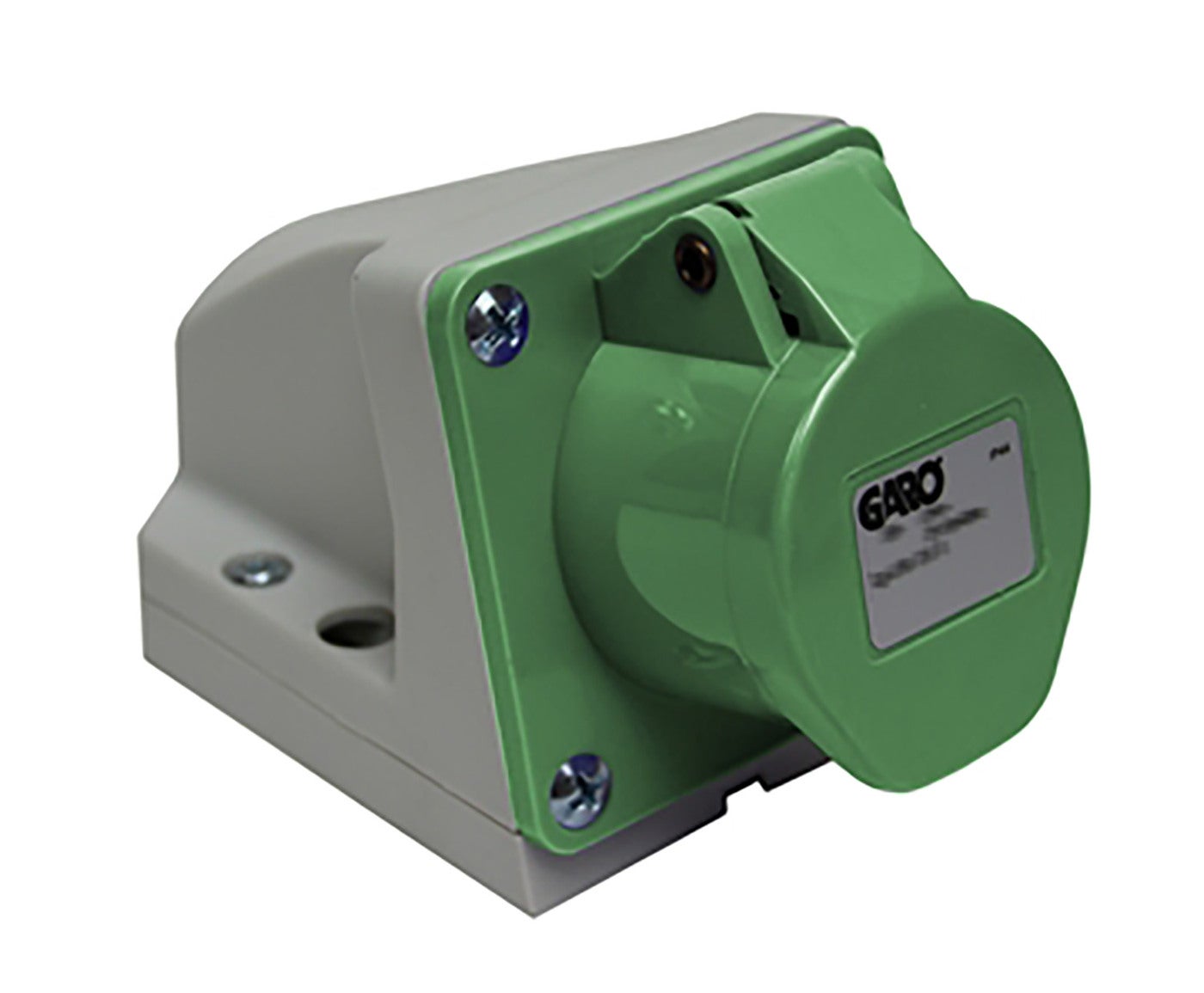

• SOCKET WALL 3P 16A 10h LV - 1

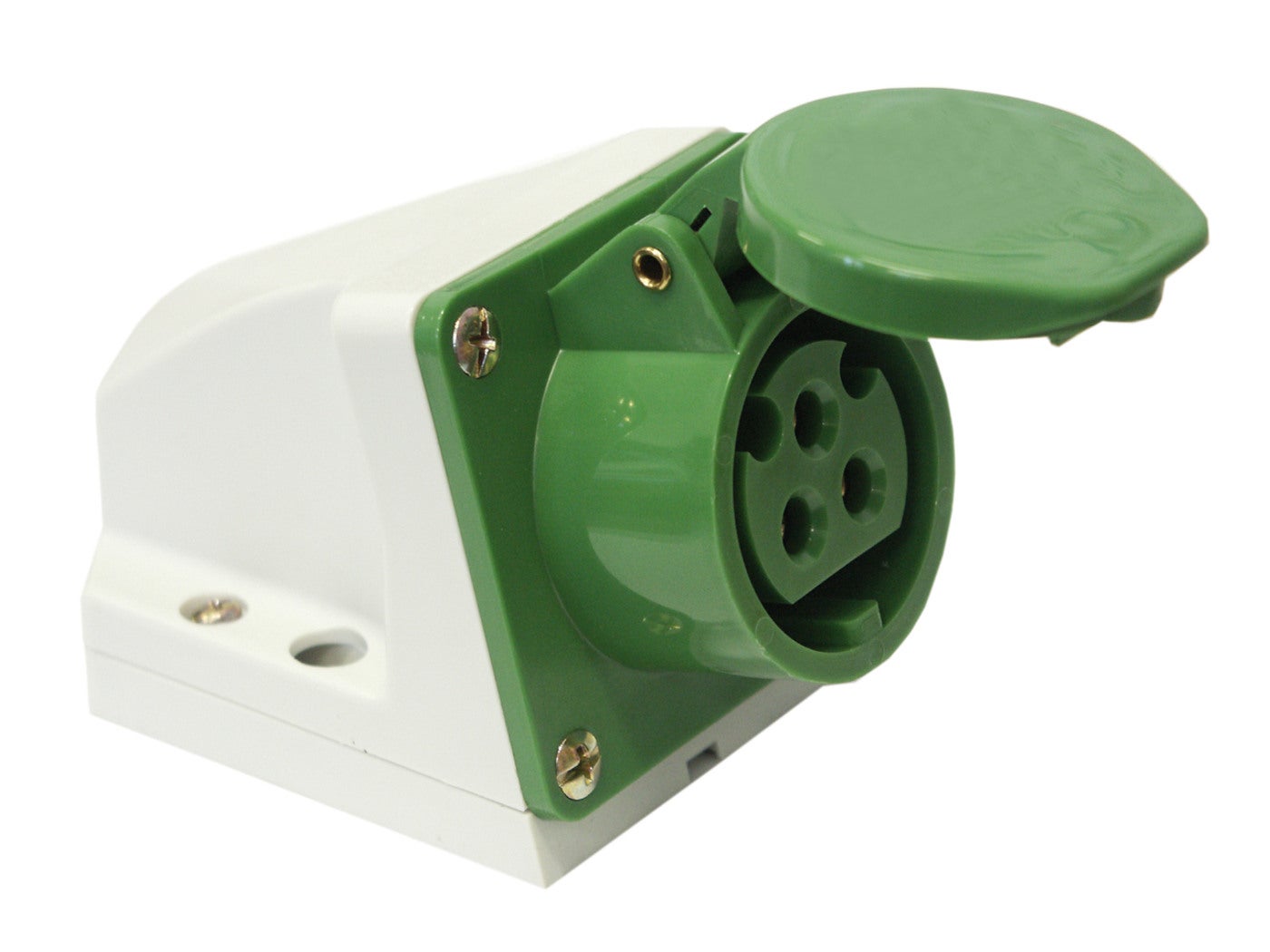

  • SOCKET WALL 3P 16A 10h LV - 2

Sockets wall Low voltage 16A IP44

Sockets wall Low voltage 16A IP44 Wall socket low-voltage 3-poles 16A 10h.
E-number
E2425720
Article number
2425720
Support
Housing material Plastic
Rated current [A] 16A
Wire flexible [mm²] 4-10mm²
Wire solid [mm²] 4-10mm²
Degree of protection [IP] IP44
Name SOCKET WALL 3P 16A 10h LV
E-number E2425720
Article number 2425720
Type designation UIBK 316-4 S
Frequency [Hz] 100-200Hz
Color Green
Rated voltage [V AC] 40-50V AC
Number of poles 3P
Modelltype Low voltage
Lock 0
RAL-number RAL6010

More variants of Sockets wall Low voltage 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Modelltype Lock RAL-number NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET WALL 2P 16A LV E2425716 2425716 UIBK 216 S 50/60Hz Purple 20-25V AC 2P Low voltage 0 RAL4005 0.19 70 119 85

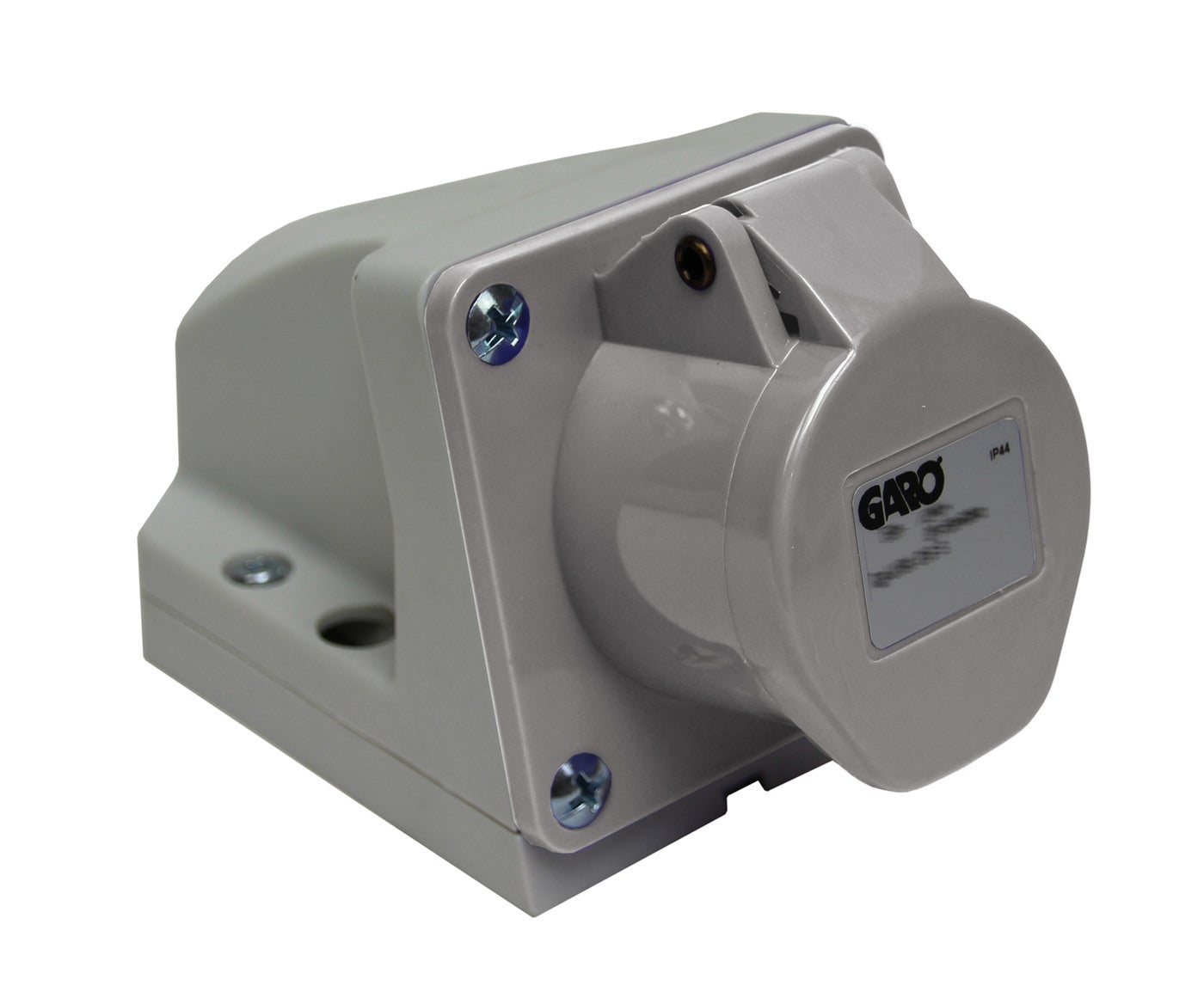

SOCKET WALL 2P 16A 10h LV E2425717 2425717 UIBK 216-10 S DC Grey 20-25,40-50V AC 2P Basic 0 RAL7046

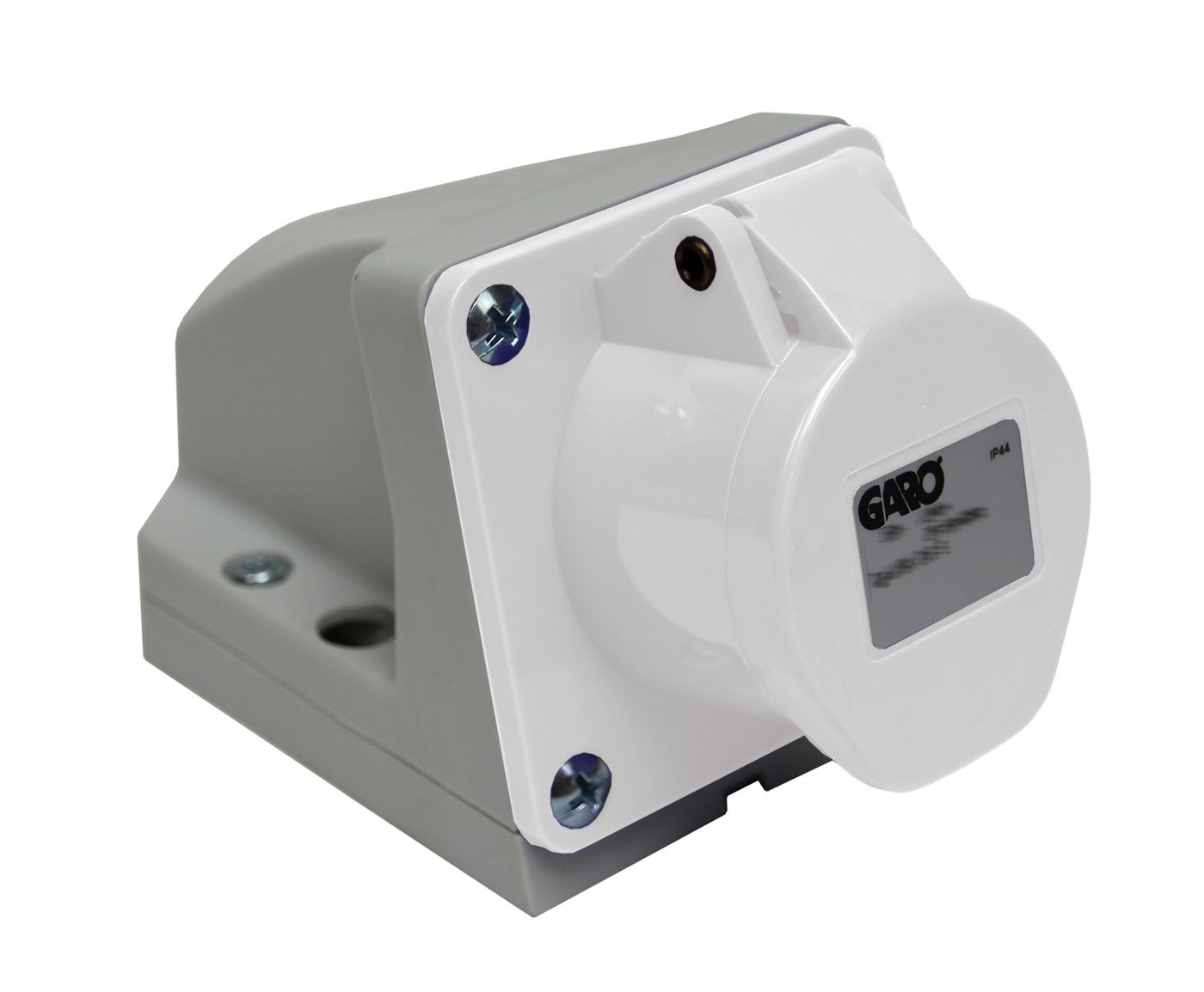

SOCKET WALL 2P 16A 12h LV E2425718 2425718 UIBK 216-12 S 50/60Hz White 40-50V AC 2P Low voltage RAL9016

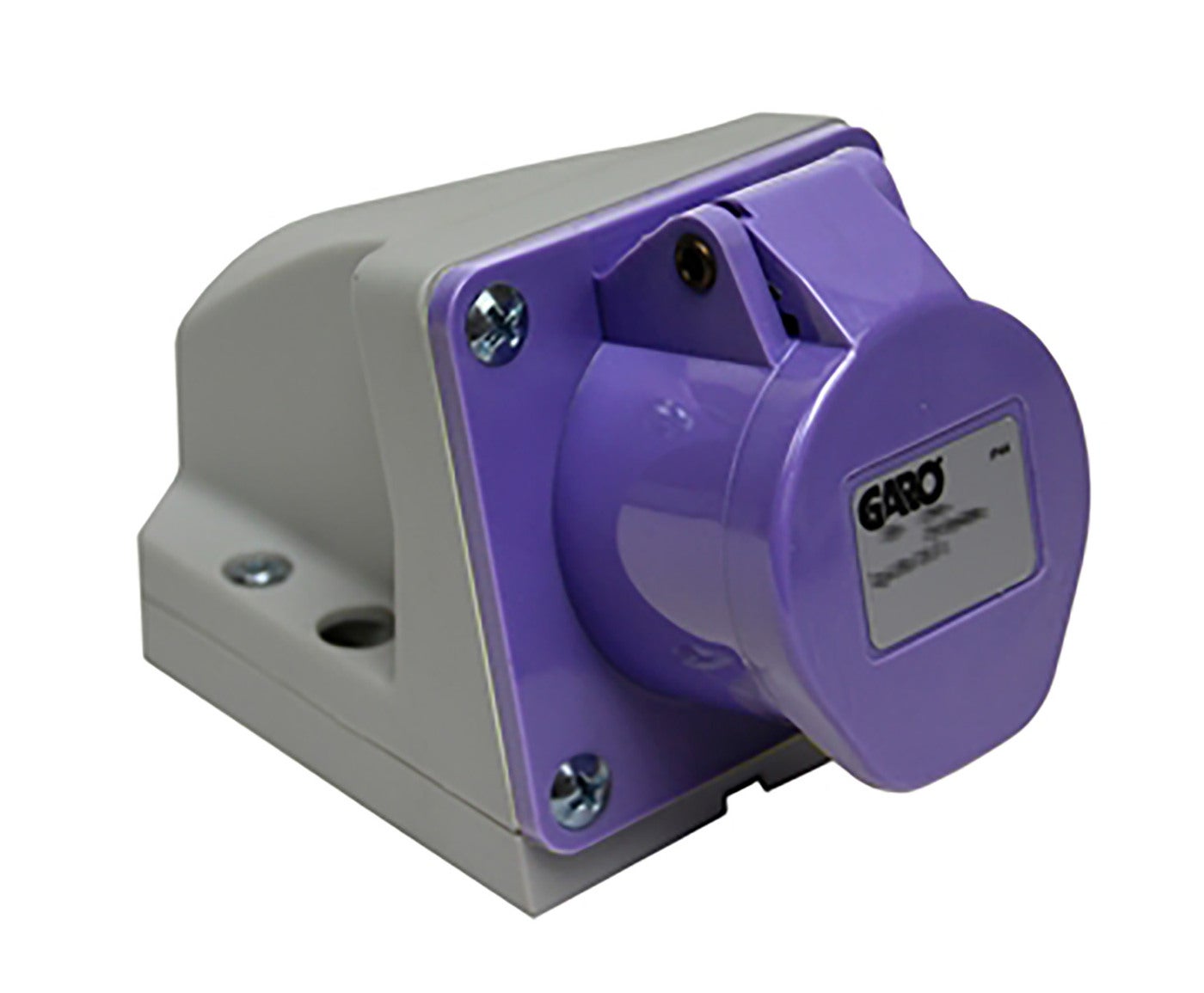

SOCKET WALL 3P 16A LV E2425719 2425719 UIBK 316 S 50/60Hz Purple 20-25V AC 3P Low voltage 0 RAL4005
SOCKET WALL 3P 16A 10h LV E2425720 2425720 UIBK 316-4 S 100-200Hz Green 40-50V AC 3P Low voltage 0 RAL6010
SOCKET WALL 3P 16A 12h LV E2425721 2425721 UIBK 316-12 S 50/60Hz White 40-50V AC 3P Low voltage 0 RAL9016
