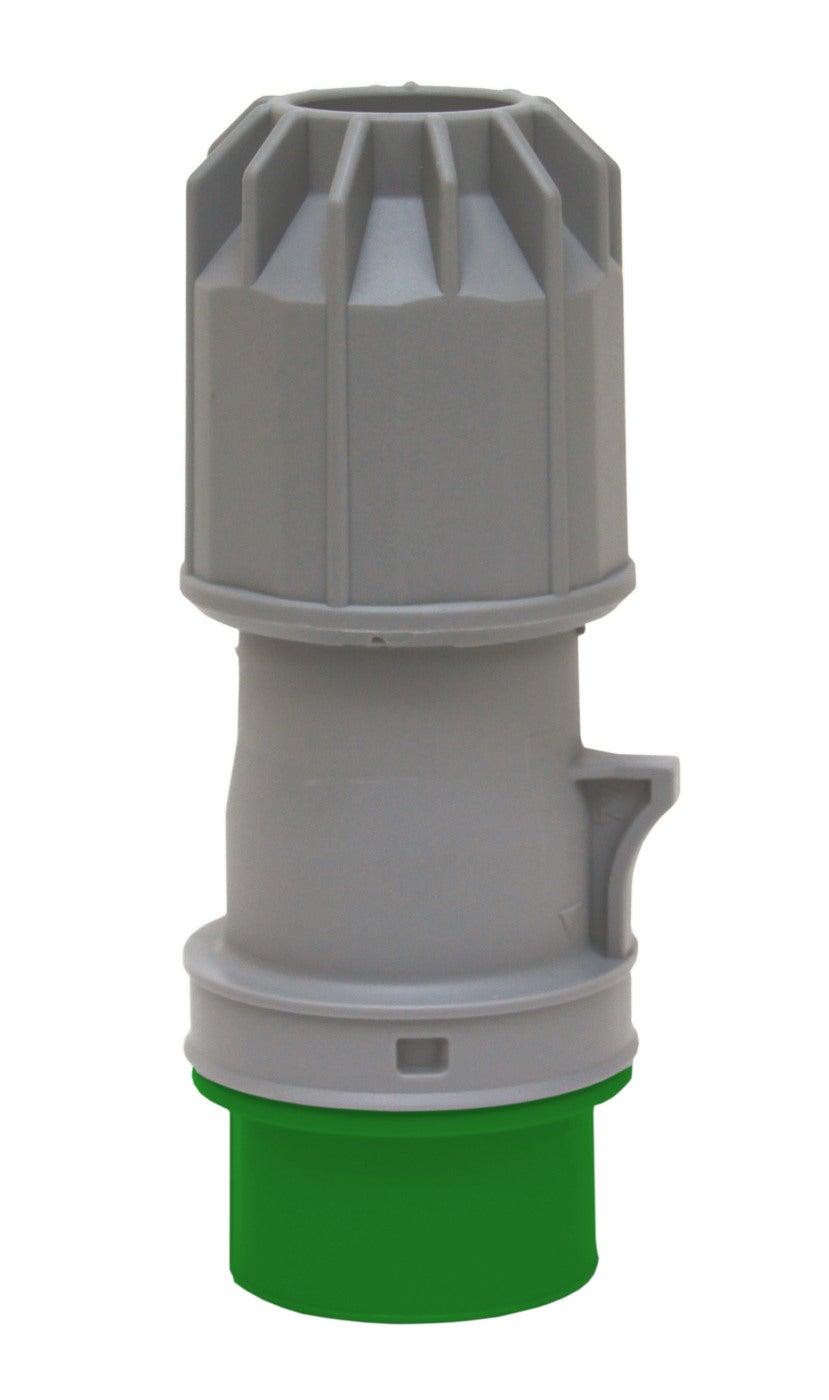

PLUG 3P 32A 4h LV

Plugs 32A IP44 low voltage

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Plugs low-voltage 3-poles 32A 4h.
E-number
E2425690
Article number
2425690
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 32A
Wire flexible [mm²] 4-10mm²
Modelltype Low voltage
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
Name PLUG 3P 32A 4h LV
E-number E2425690
Article number 2425690
Type designation PK 332- 4 S
Frequency [Hz] 100-200Hz
Color Green
Rated voltage [V AC] 40-50V AC
Number of poles 3P
RAL-number RAL6010
Clock hour position [h] 4h

More variants of Plugs 32A IP44 low voltage

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h]
PLUG 2P 32A LV E2425686 2425686 PK 232 S 50/60Hz Purple 20-25V AC 2P RAL4005
PLUG 2P 32A 10h LV E2425687 2425687 PK 232-10 S DC Grey 20-25,40-50V AC 2P RAL7046 10h
PLUG 2P 32A 12h LV E2425688 2425688 PK 232-12 S 50/60Hz White 40-50V AC 2P RAL9016 12h

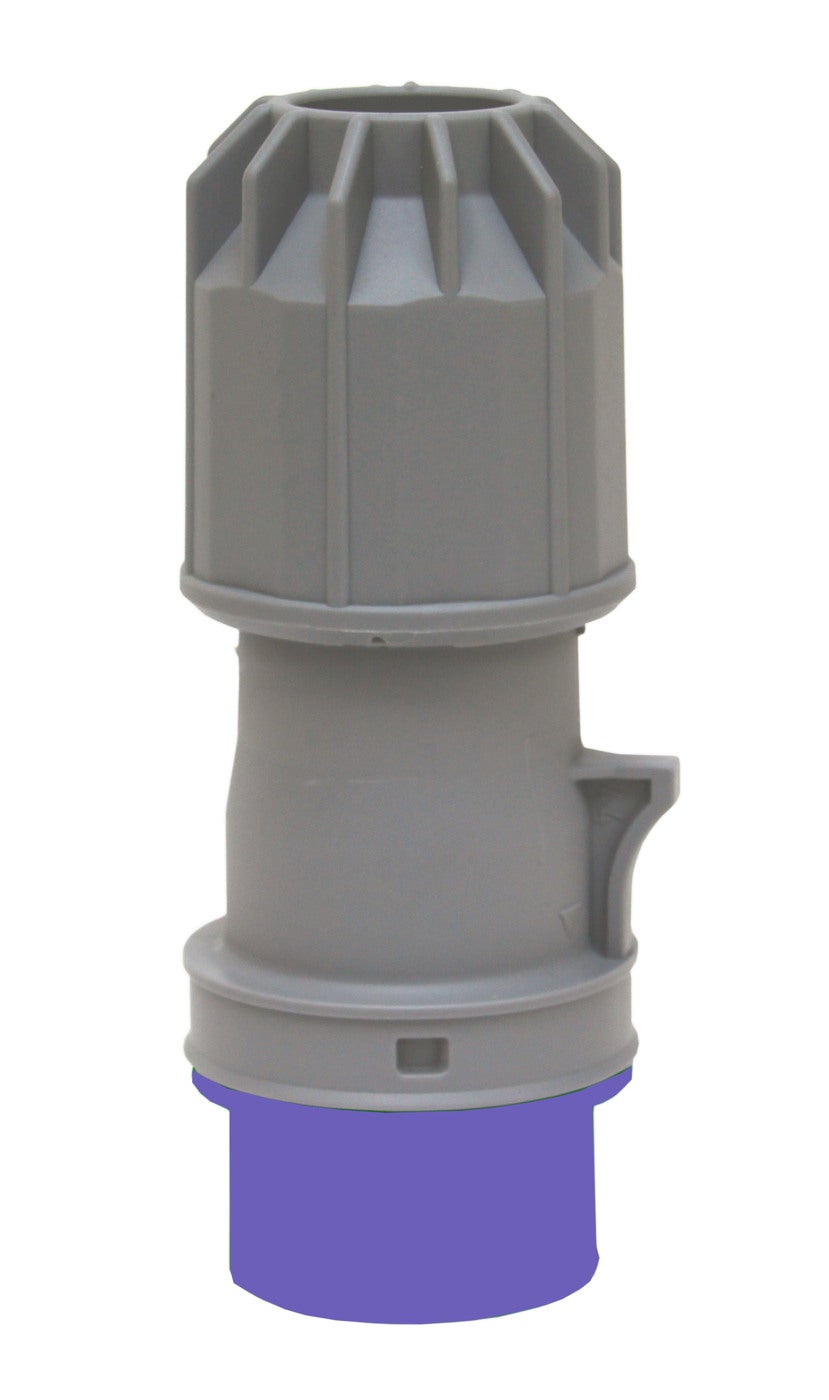

PLUG 3P 32A LV E2425689 2425689 PK 332 S 50/60Hz Purple 20-25V AC 3P RAL4005
PLUG 3P 32A 4h LV E2425690 2425690 PK 332- 4 S 100-200Hz Green 40-50V AC 3P RAL6010 4h

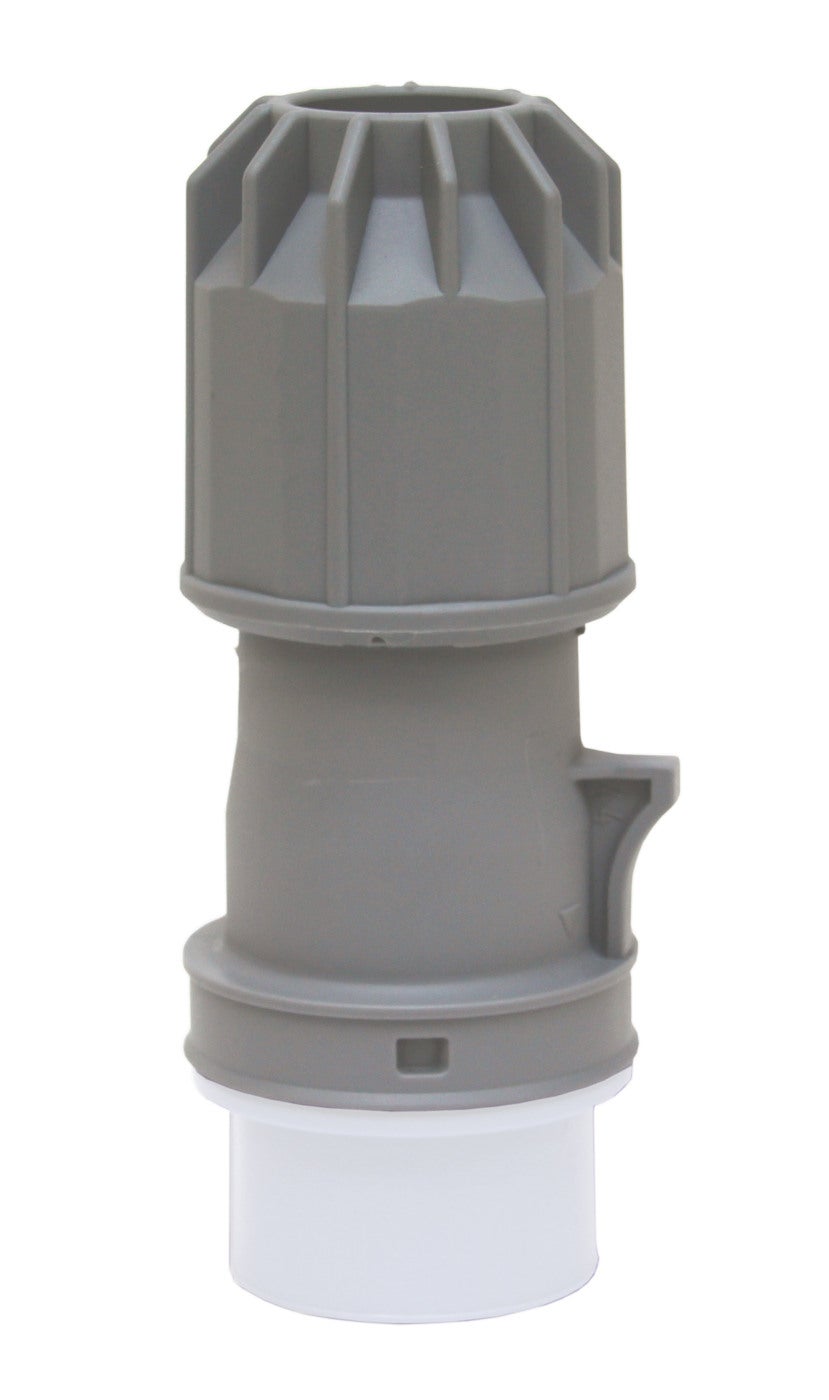

PLUG 3P 32A 12h LV E2425691 2425691 PK 332- 12S 50/60Hz White 40-50V AC 3P RAL9016 12h
