PLUG 2P 16A LV

Plugs 16A IP44 low voltage

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Plugs low-voltage 2-poles 16A
E-number
E2425680
Article number
2425680
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 16A
Wire flexible [mm²] 4-10mm²
Modelltype Low voltage
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
Name PLUG 2P 16A LV
E-number E2425680
Article number 2425680
Type designation PK 216 S
Frequency [Hz] 50/60Hz
Color Purple
Rated voltage [V AC] 20-25V AC
Number of poles 2P
RAL-number RAL4005

More variants of Plugs 16A IP44 low voltage

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles Connection type RAL-number Clock hour position [h]
PLUG 2P 16A LV E2425680 2425680 PK 216 S 50/60Hz Purple 20-25V AC 2P RAL4005
PLUG 2P 16A 10h LV E2425681 2425681 PK 216-10 S DC Grey 20-25,40-50V AC 2P Screwed terminal RAL7046 10h
PLUG 2P 16A 12h LV E2425682 2425682 PK 216-12 S 50/60Hz White 40-50V AC 2P Screwed terminal RAL9016 12h

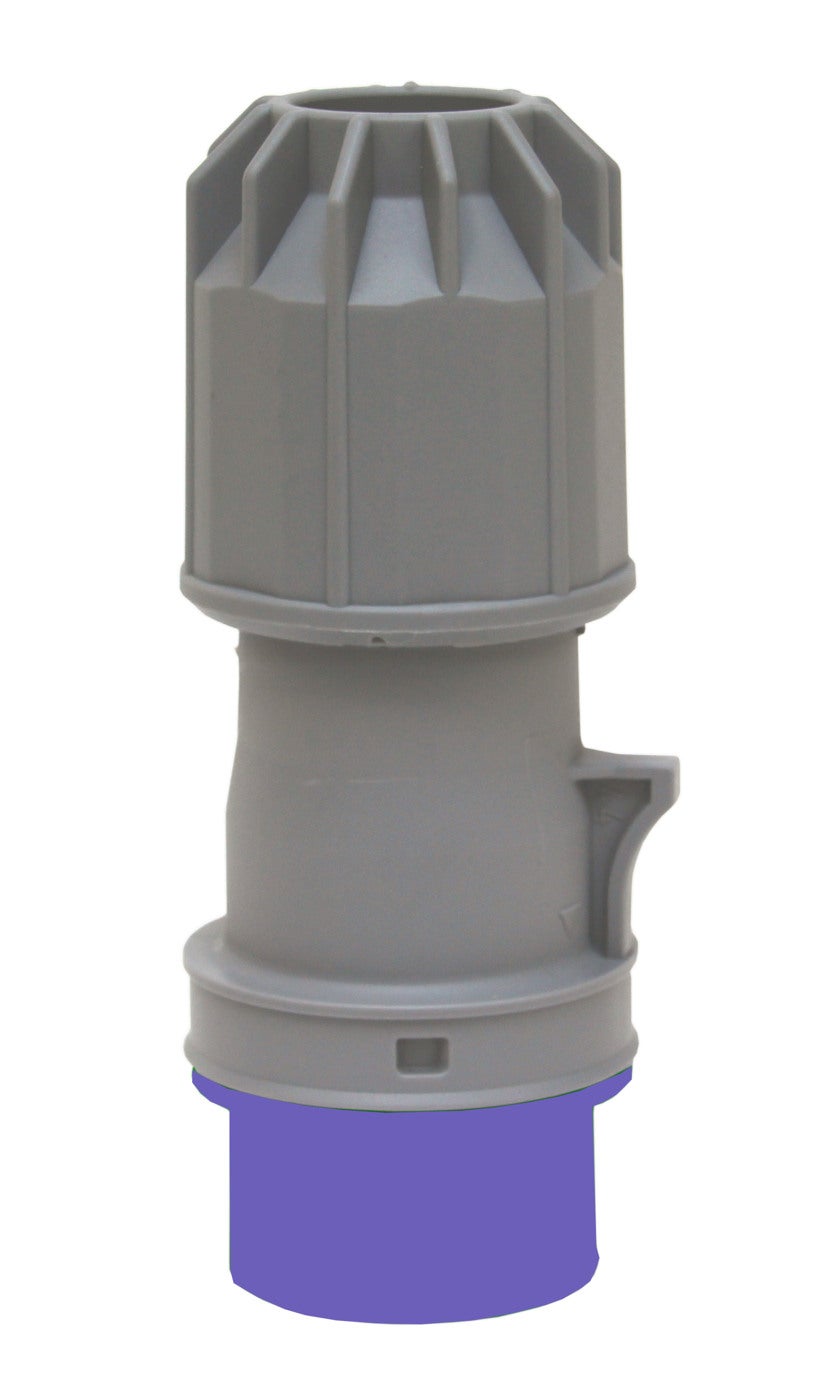

PLUG 3P 16A LV E2425683 2425683 PK 316 S 50/60Hz Purple 20-25V AC 3P Screwed terminal RAL4005

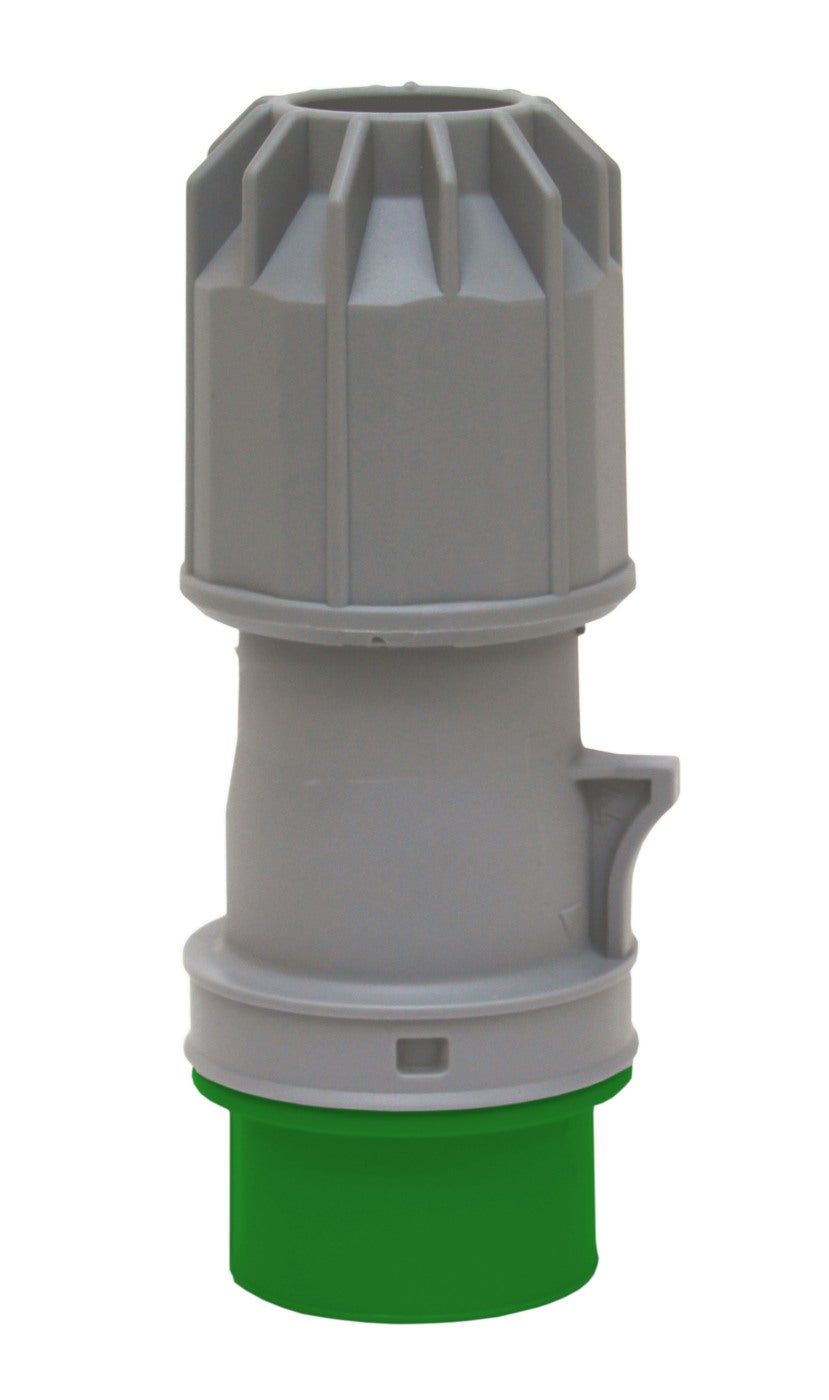

PLUG 3P 16A 4h LV E2425684 2425684 PK 316-4 S 100-200Hz Green 40-50V AC 3P Screwed terminal RAL6010 4h

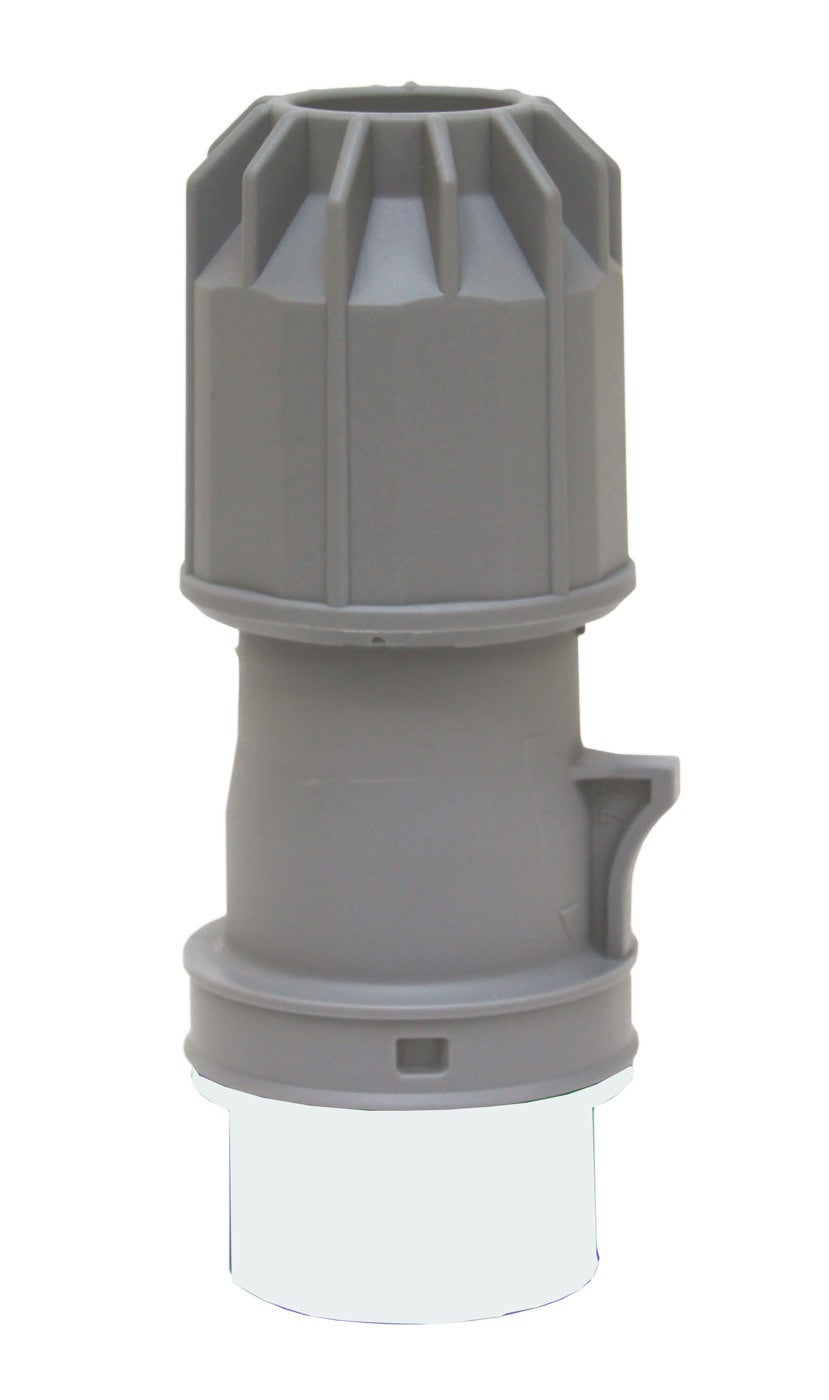

PLUG 3P 16A 12h LV E2425685 2425685 PK 316-12 S 50/60Hz White 40-50V AC 3P Screwed terminal RAL9016 12h
