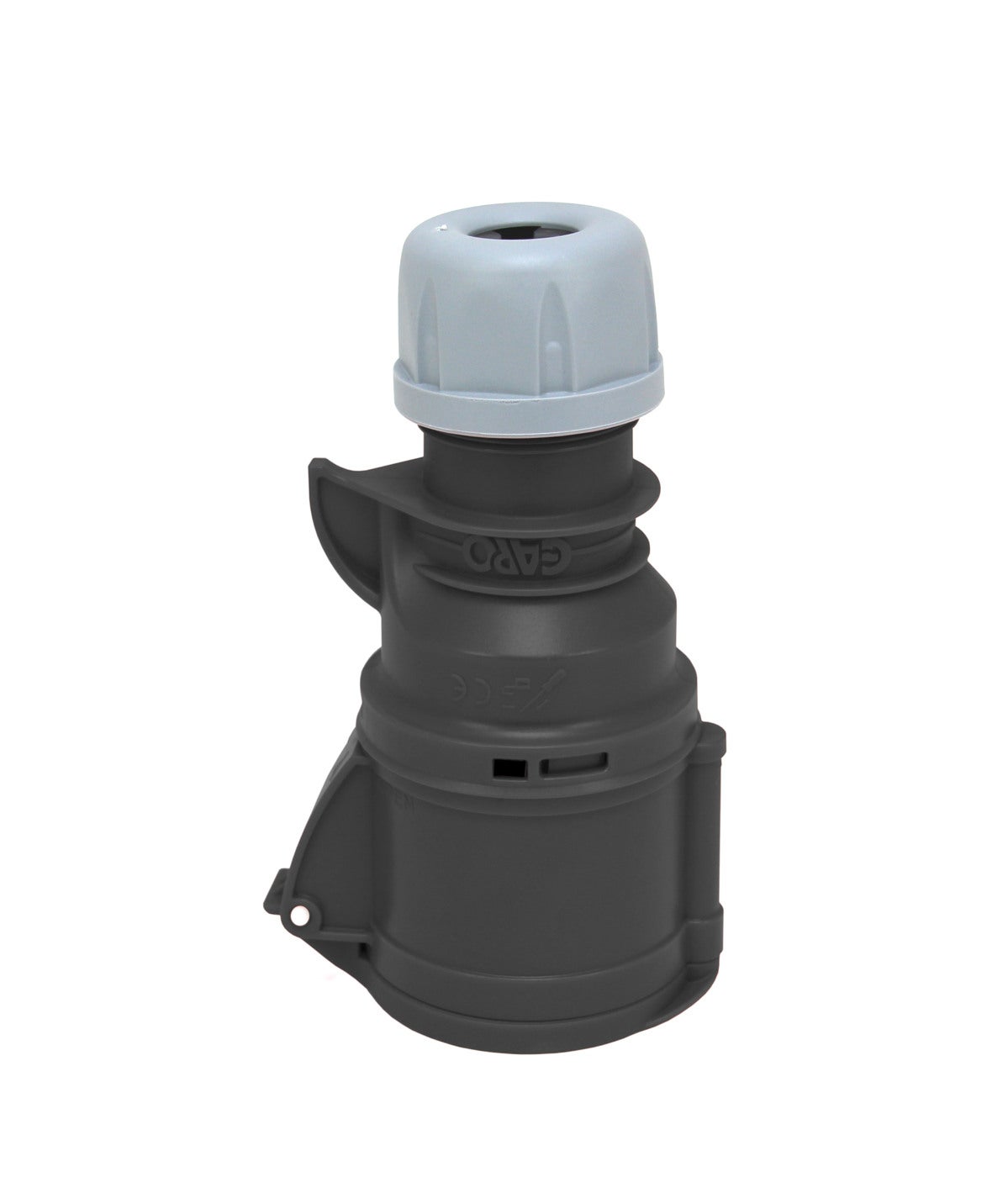

CONNECTORS 5P 16A 7h Q

Connectors Quick 16A IP44

Quick in-line socket is our screwless range with quick connections that require no tools, just a simple push of the thumb. Connectors with quick connection 5-poles 16A 7h
E-number
E2425454
Article number
2425454
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Quick
Pin/Sleeve 0
Degree of protection [IP] IP44
Name CONNECTORS 5P 16A 7h Q
E-number E2425454
Article number 2425454
Frequency [Hz] 50/60Hz
Color Black
Rated voltage [V AC] 480-500V AC
Number of poles 5/3P+N+E
RAL-number RAL9005
Clock hour position [h] 7h

More variants of Connectors Quick 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h]

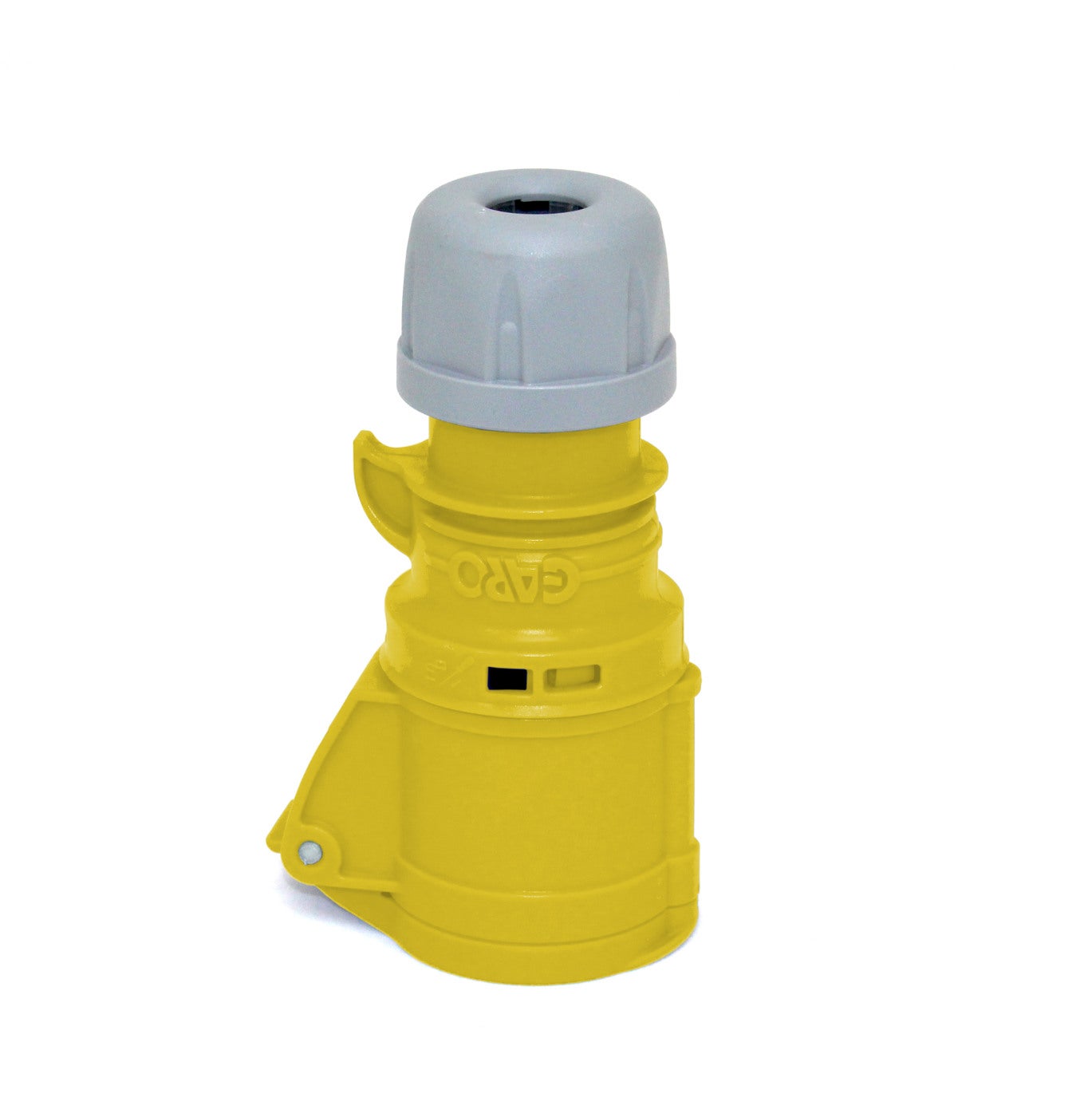

CONNECTORS 3P 16A 4h Q E2425434 2425434 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h

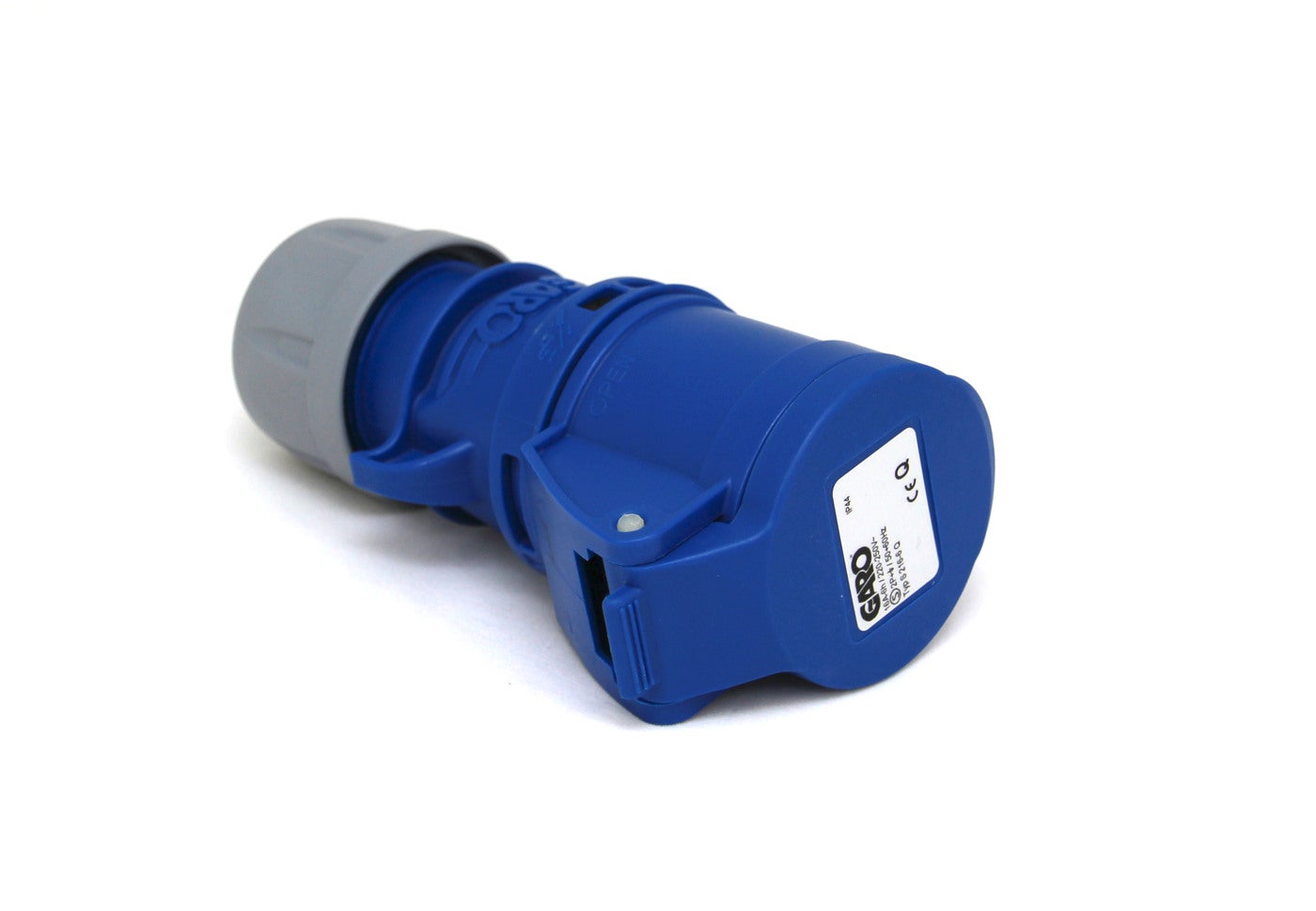

CONNECTOR 3P 16A 6h Q E2425436 2425436 S 216- 6 Q 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h
CONNECTORS 3P 16A 9h E2425438 2425438 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h

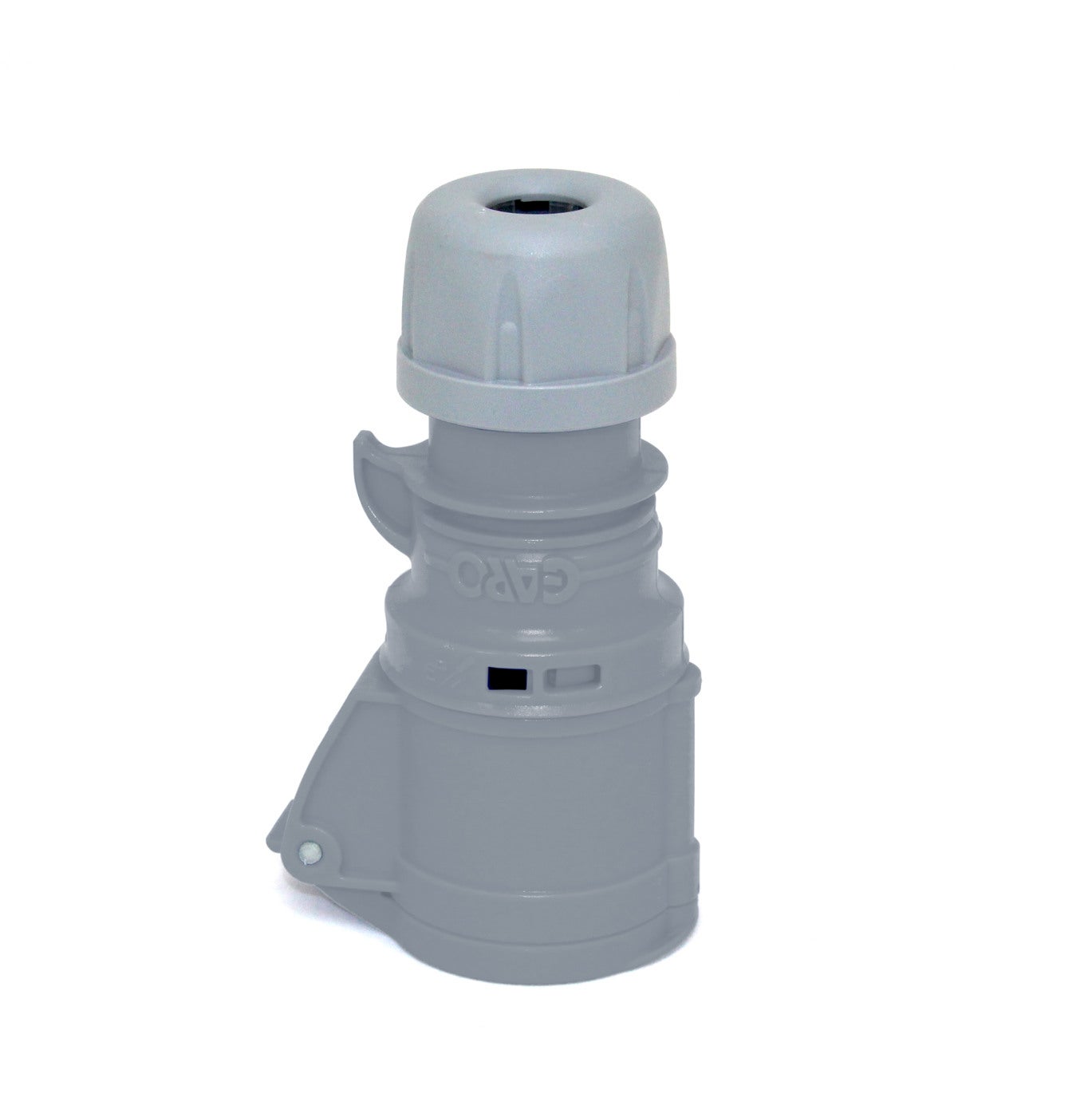

CONNECTORS 3P 16A 12h Q E2425439 2425439 50/60Hz Grey After isolating transformerb 3/2P+E RAL7046 12h
CONNECTORS 4P 16A 3h Q E2425441 2425441 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h
CONNECTORS 4P 16A 4h Q E2425442 2425442 50/60Hz Yellow 100-130V AC 4/3P+E RAL1023 4h
CONNECTORS 4P 16A 5h Q E2425443 2425443 0 Black 600-690V AC 4/3P+E RAL9005 5h

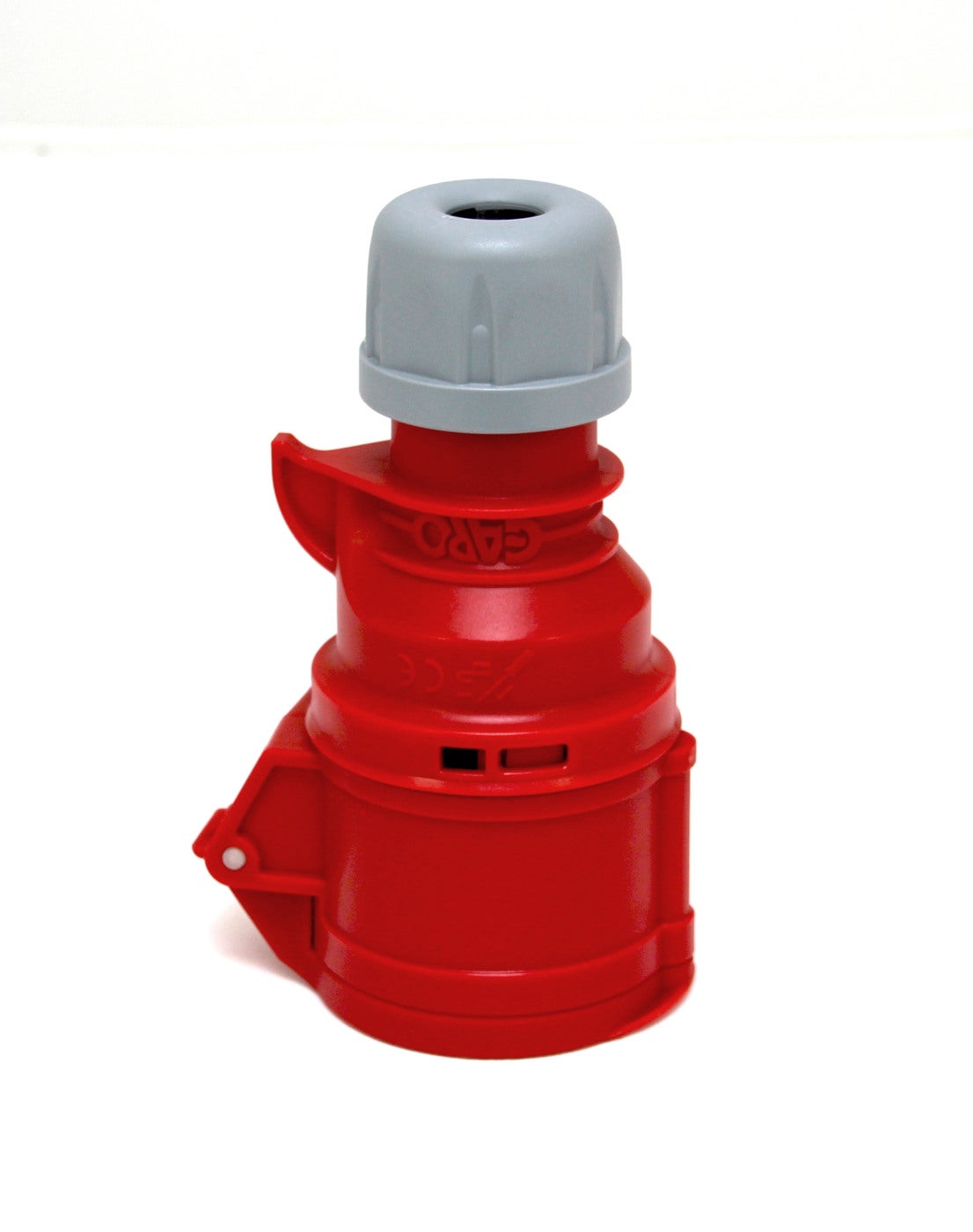

CONNECTOR 4P 16A 6h Q E2425444 2425444 S 316-6 Q 50/60Hz Red 400V AC 4/3P+E RAL3000 6h

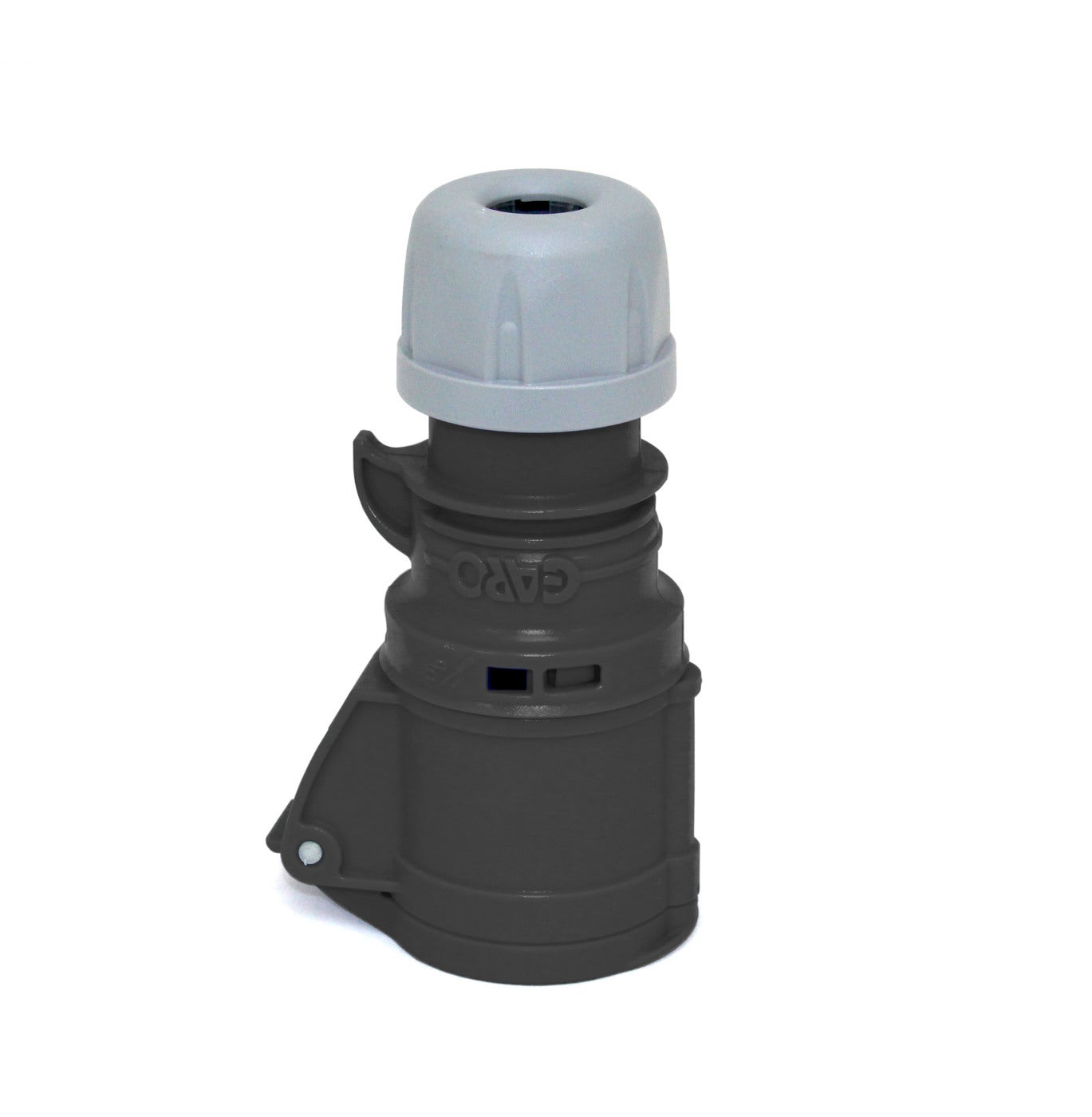

CONNECTORS 4P 16A 7h Q E2425445 2425445 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h
CONNECTORS 4P 16A 9h Q E2425446 2425446 50/60Hz Blue 230V AC 4/3P+E RAL5017 9h
CONNECTORS 4P 16A 10h Q E2425447 2425447 100-300Hz Green >50V AC 4/3P+E RAL6010 10h
CONNECTORS 4P 16A 11h Q E2425448 2425448 60Hz Red 440-460V AC 4/3P+E RAL3000 11h
CONNECTORS 5P 16A 2h Q E2425449 2425449 300-500Hz Green >50V AC 5/3P+N+E RAL6010 2h
CONNECTORS 5P 16A 3h Q E2425450 2425450 50/60Hz Red 380-440V AC 5/3P+N+E RAL3000 3h

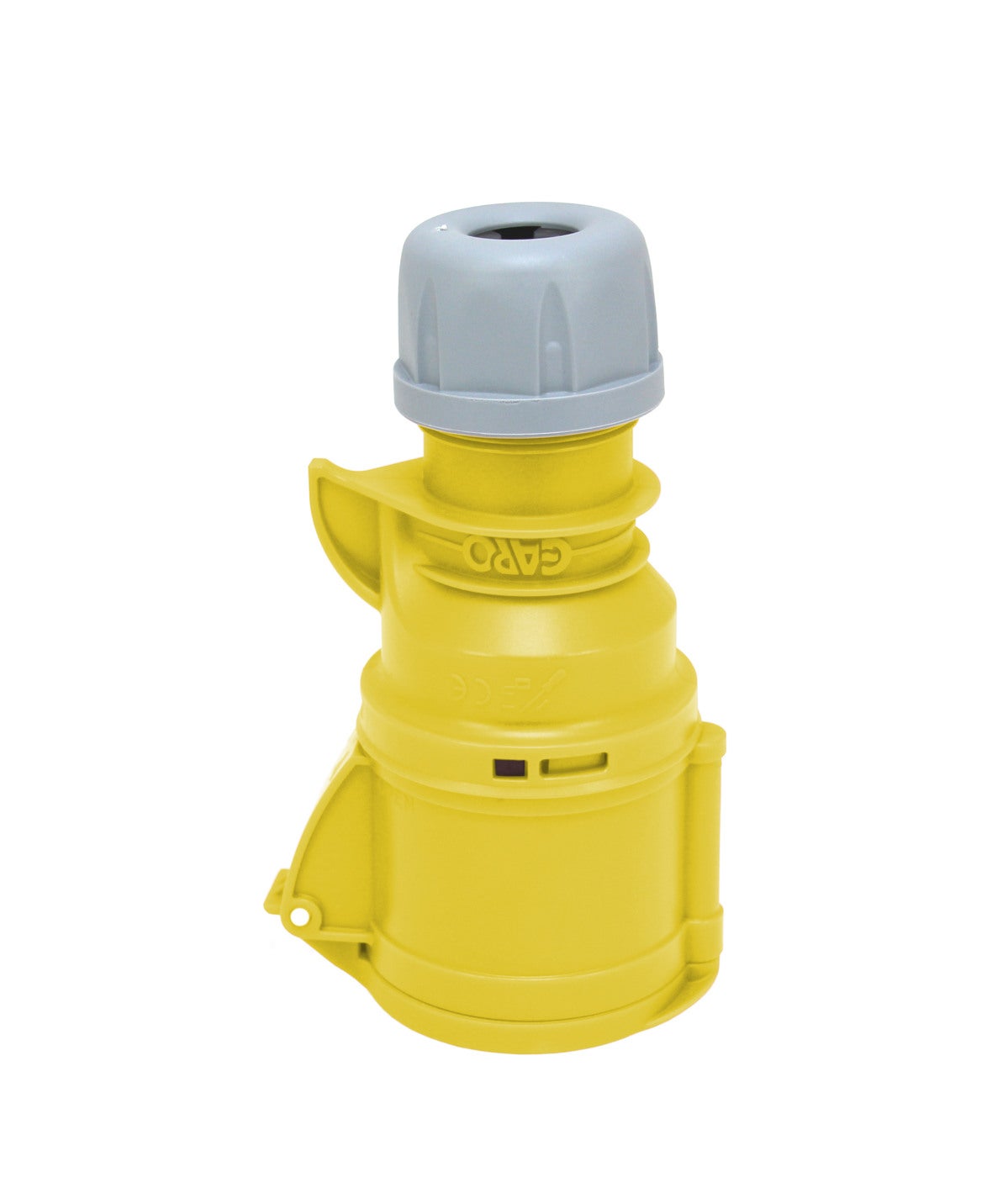

CONNECTORS 5P 16A 4h Q E2425451 2425451 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h
CONNECTOR 5P 16A 6h Q E2425453 2425453 S 416-6 Q 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h
CONNECTORS 5P 16A 7h Q E2425454 2425454 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h

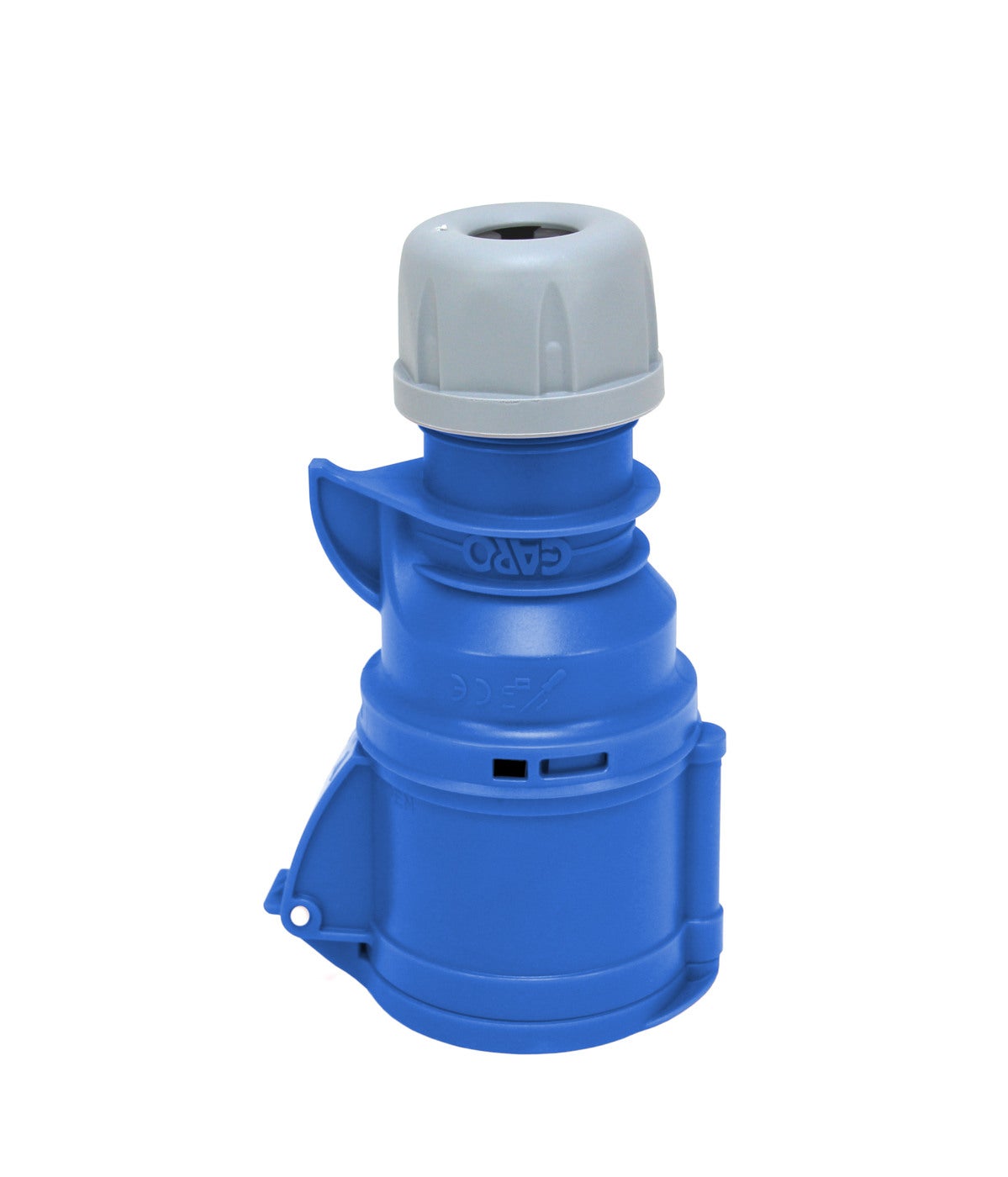

CONNECTORS 5P 16A 9h Q E2425455 2425455 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h
CONNECTORS 5P 16A 11h Q E2425456 2425456 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
