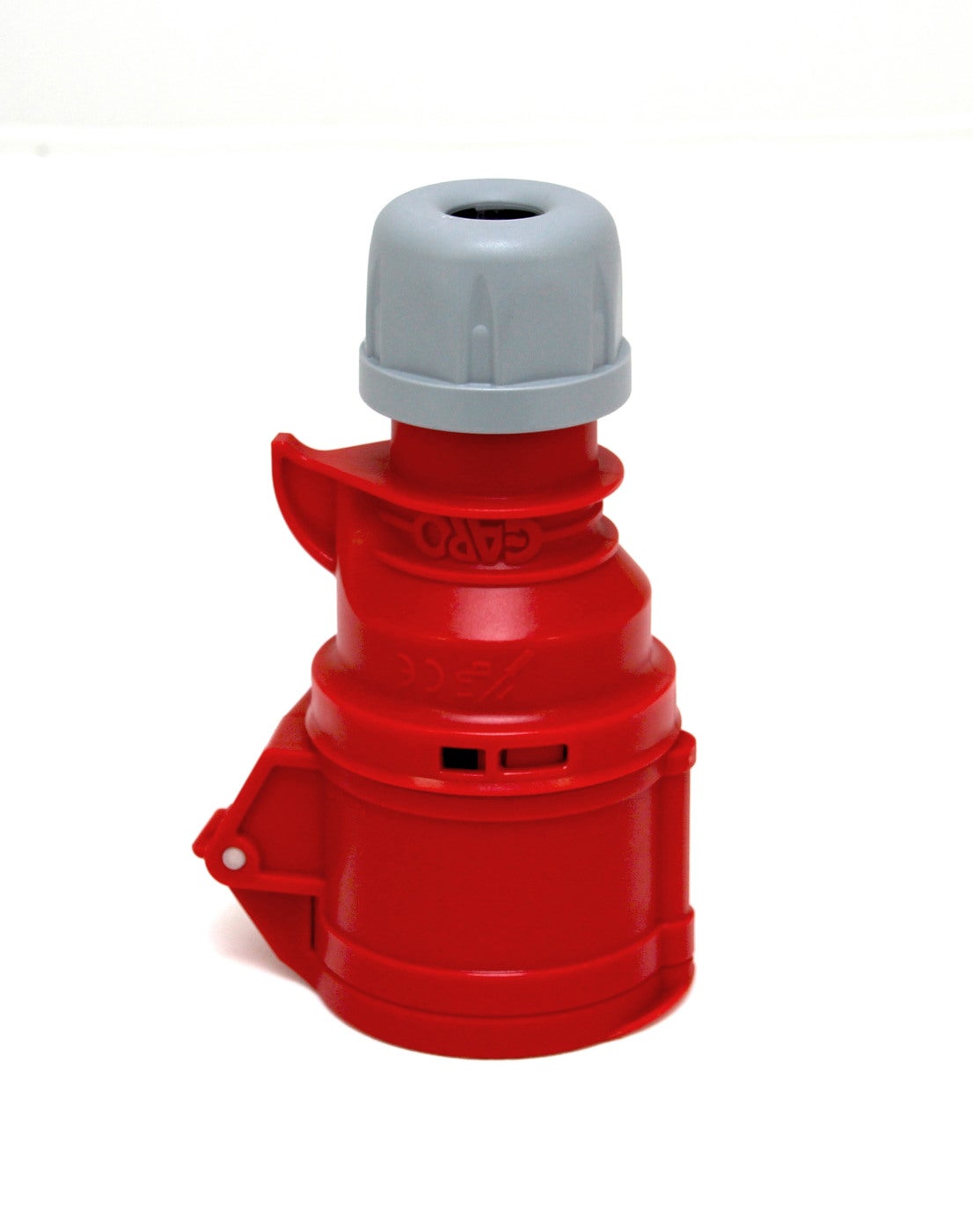

CONNECTORS 4P 32A 11h Q

Connectors Quick 32A IP44

Quick in-line socket is our screwless range with quick connections that require no tools, just a simple push of the thumb. Connectors with quick connection 4-poles 32A 11h
E-number
E2425471
Article number
2425471
Support
Standard EN60309-2
Rated current [A] 32A
Wire flexible [mm²] 2,5-6mm²
Modelltype Quick
Pin/Sleeve 0
Degree of protection [IP] IP44
Name CONNECTORS 4P 32A 11h Q
E-number E2425471
Article number 2425471
Materials Plastic
Frequency [Hz] 60Hz
Color Red
Rated voltage [V AC] 440-460V AC
Number of poles 4/3P+E
RAL-number RAL3000
Clock hour position [h] 11h
NetProductWeight 0.25
EngineerWidth 92
EngineerHeight 159
EngineerDepth 50

More variants of Connectors Quick 32A IP44

E-number Article number Type designation Materials Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
CONNECTORS 3P 32A 4h Q E2425458 2425458 Plastic 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h
CONNECTOR 3P 32A 6h Q E2425459 2425459 S 232-6 Q Plastic 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h
CONNECTORS 3P 32A 9h Q E2425461 2425461 Plastic 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h
CONNECTORS 3P 32A 12h Q E2425462 2425462 Plastic 50/60Hz Grey After isolating transformerb 3/2P+E RAL7046 12h
CONNECTORS 4P 32A 3h Q E2425464 2425464 Plastic 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h
CONNECTORS 4P 32A 4h Q E2425465 2425465 Plastic 50/60Hz Yellow 100-130V AC 4/3P+E RAL1023 4h
CONNECTORS 4P 32A 5h Q E2425466 2425466 Plastic 50/60Hz Black 600-690V AC 4/3P+E RAL9005 5h
CONNECTOR 4P 32A 6h Q E2425467 2425467 S 332-6 Q Plastic 50/60Hz Red 400V AC 4/3P+E RAL3000 6h
CONNECTORS 4P 32A 7h Q E2425468 2425468 Plastic 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h
CONNECTORS 4P 32A 9h Q E2425469 2425469 Plastic 50/60Hz Blue 230V AC 4/3P+E RAL5017 9h
CONNECTOR 4P 32A 10h Q E2425470 2425470 Plastic 100-300Hz Green >50V AC 4/3P+E RAL6010 10h 0.25 92 159 50
CONNECTORS 4P 32A 11h Q E2425471 2425471 Plastic 60Hz Red 440-460V AC 4/3P+E RAL3000 11h 0.25 92 159 50
CONNECTORS 5P 32A 3h Q E2425473 2425473 Plastic 50/60Hz Red 380-440V AC 5/3P+N+E RAL3000 3h 0.29 98 165 50
CONNECTORS 5P 32A 5h Q E2425475 2425475 Plastic 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 5h 0.29 98 165 50
CONNECTOR 5P 32A 6h Q E2425476 2425476 S 432-6 Q Plastic 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h
CONNECTORS 5P 32A 7h Q E2425477 2425477 Plastic/Hot-dip galvanized 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h 0.29 98 165 50
CONNECTORS 5P 32A 9h Q E2425478 2425478 Plastic 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h 0.29 98 165 50
CONNECTORS 5P 32A 11h Q E2425479 2425479 Plastic 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h 0.29 98 165 50
