CONNECTOR 2P 16A LV

Connectors Low voltage 16A IP44

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The connectors are designed to meet the requirements in the standards IEC 60309-2 and BS 43 43. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected Connector low-voltage 2-poles 16A.
E-number
E2425692
Article number
2425692
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 16A
Wire flexible [mm²] 4-10mm²
Modelltype Low voltage
Pin/Sleeve 0
Degree of protection [IP] IP44
Name CONNECTOR 2P 16A LV
E-number E2425692
Article number 2425692
Type designation SK 216 S
Frequency [Hz] 50/60Hz
Color Purple
Rated voltage [V AC] 20-25V AC
Number of poles 2P
RAL-number RAL4005

More variants of Connectors Low voltage 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h]

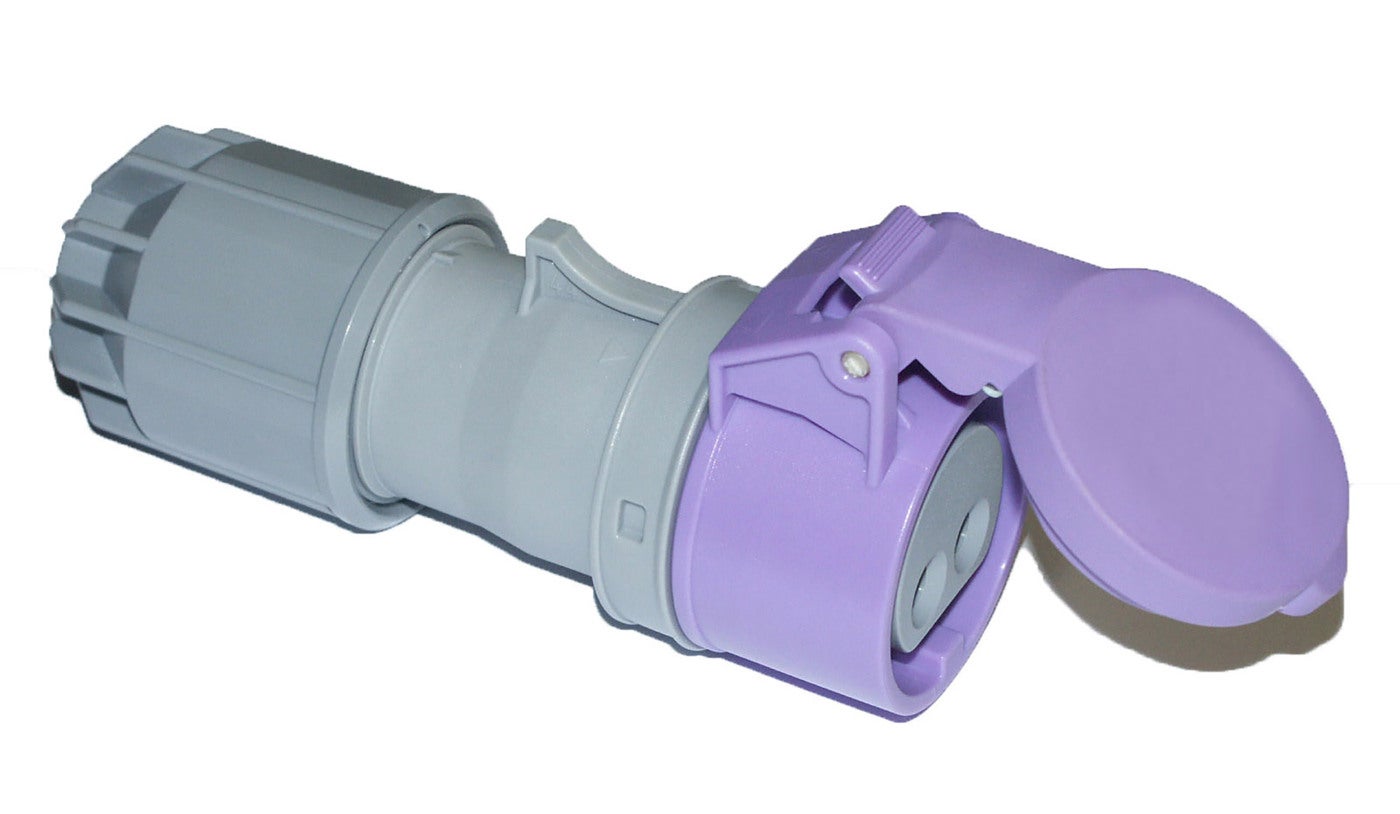

CONNECTOR 2P 16A LV E2425692 2425692 SK 216 S 50/60Hz Purple 20-25V AC 2P RAL4005

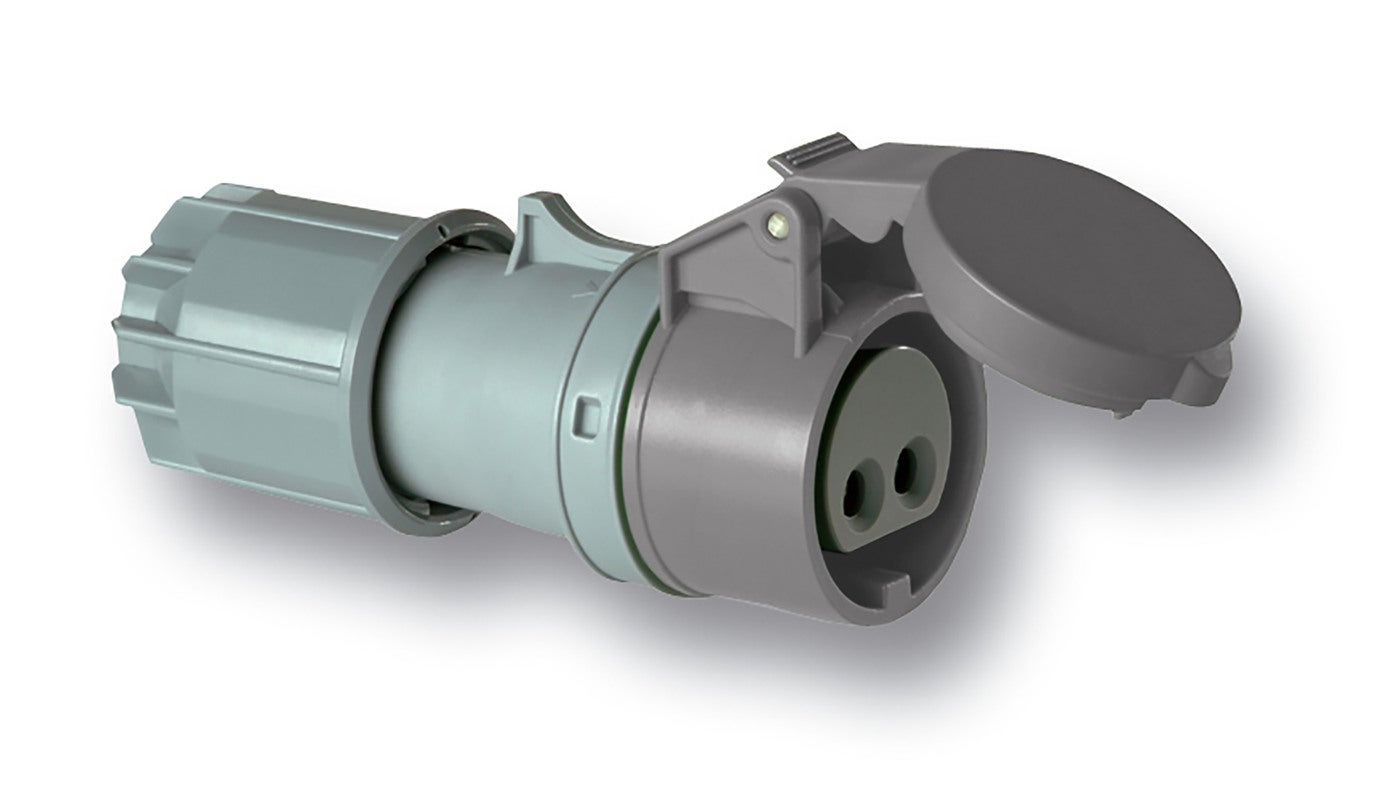

CONNECTOR 2P 16A 10h LV E2425693 2425693 SK 216-10 S DC Grey 20-25,40-50V AC 2P RAL7046 10h

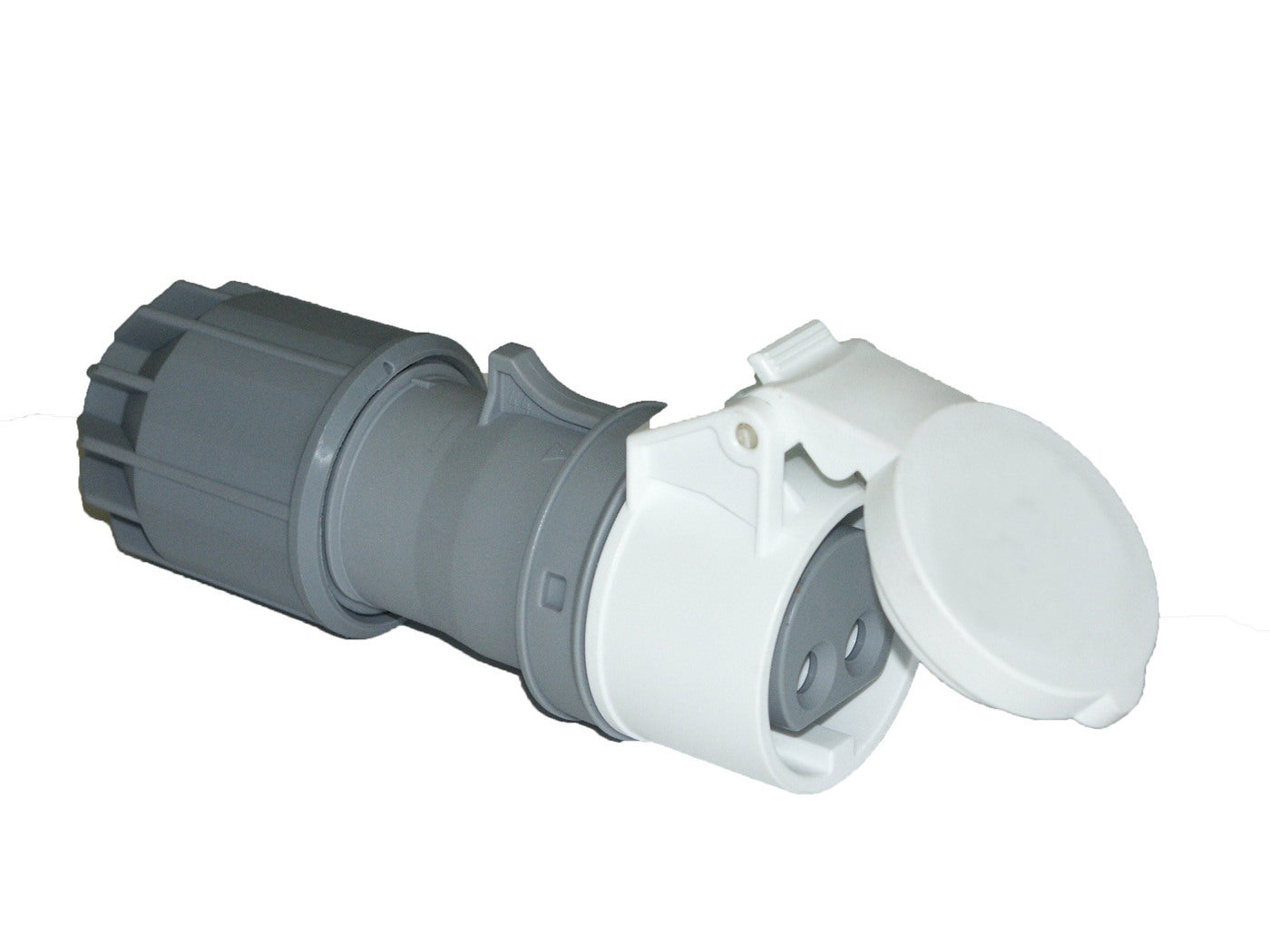

CONNECTOR 2P 16A 12h LV E2425694 2425694 SK 216-12 S 50/60Hz White 40-50V AC 2P RAL9016 12h
CONNECTOR 3P 16A LV E2425695 2425695 SK 316 S 50/60Hz Purple 20-25V AC 3P RAL4005

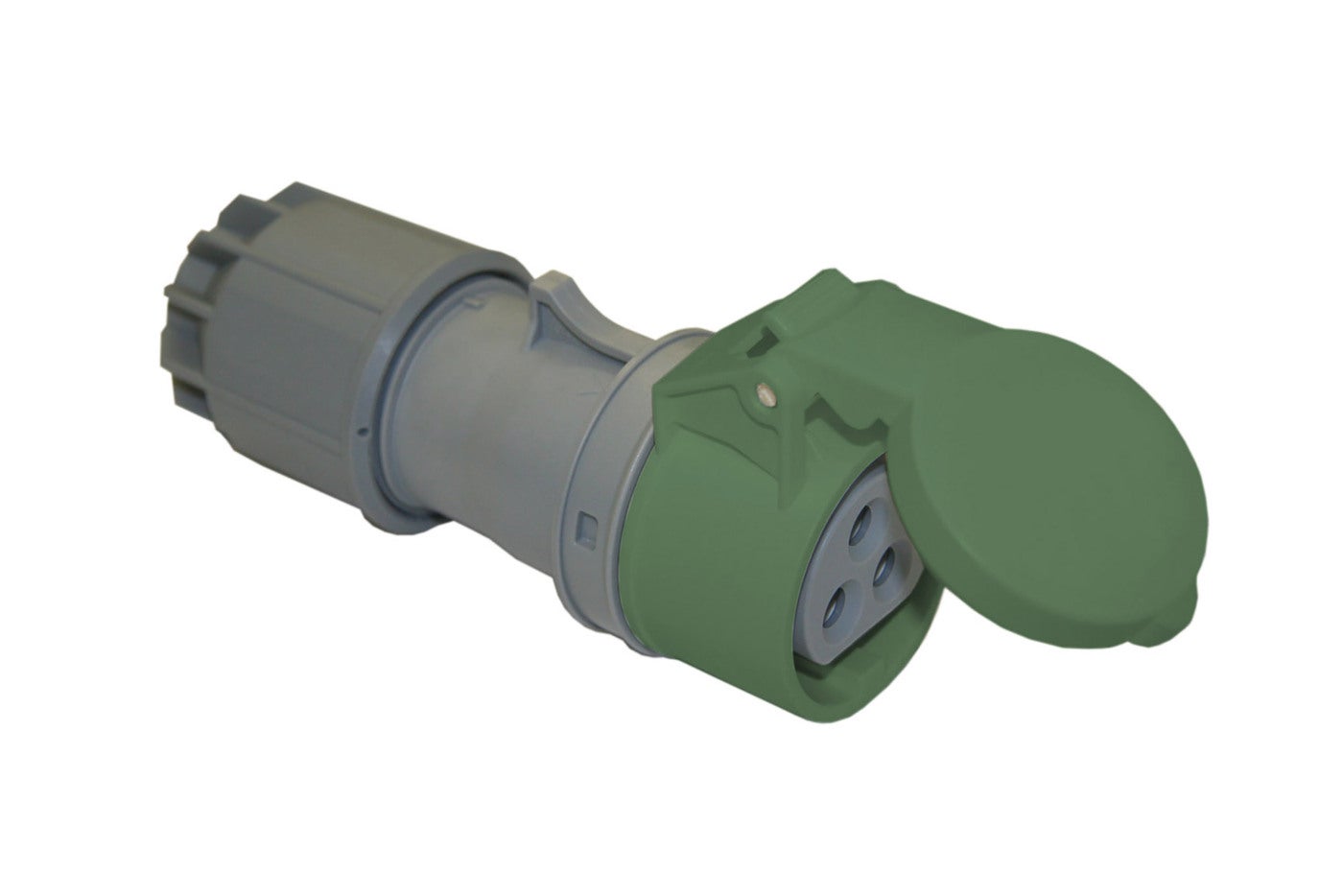

CONNECTOR 3P 16A 4h LV E2425696 2425696 SK 316-4 S 100-200Hz Green 40-50V AC 3P RAL6010 4h
CONNECTOR 3P 16A 12h LV E2425697 2425697 SK 316-12 S 50/60Hz White 40-50V AC 3P RAL9016 12h
