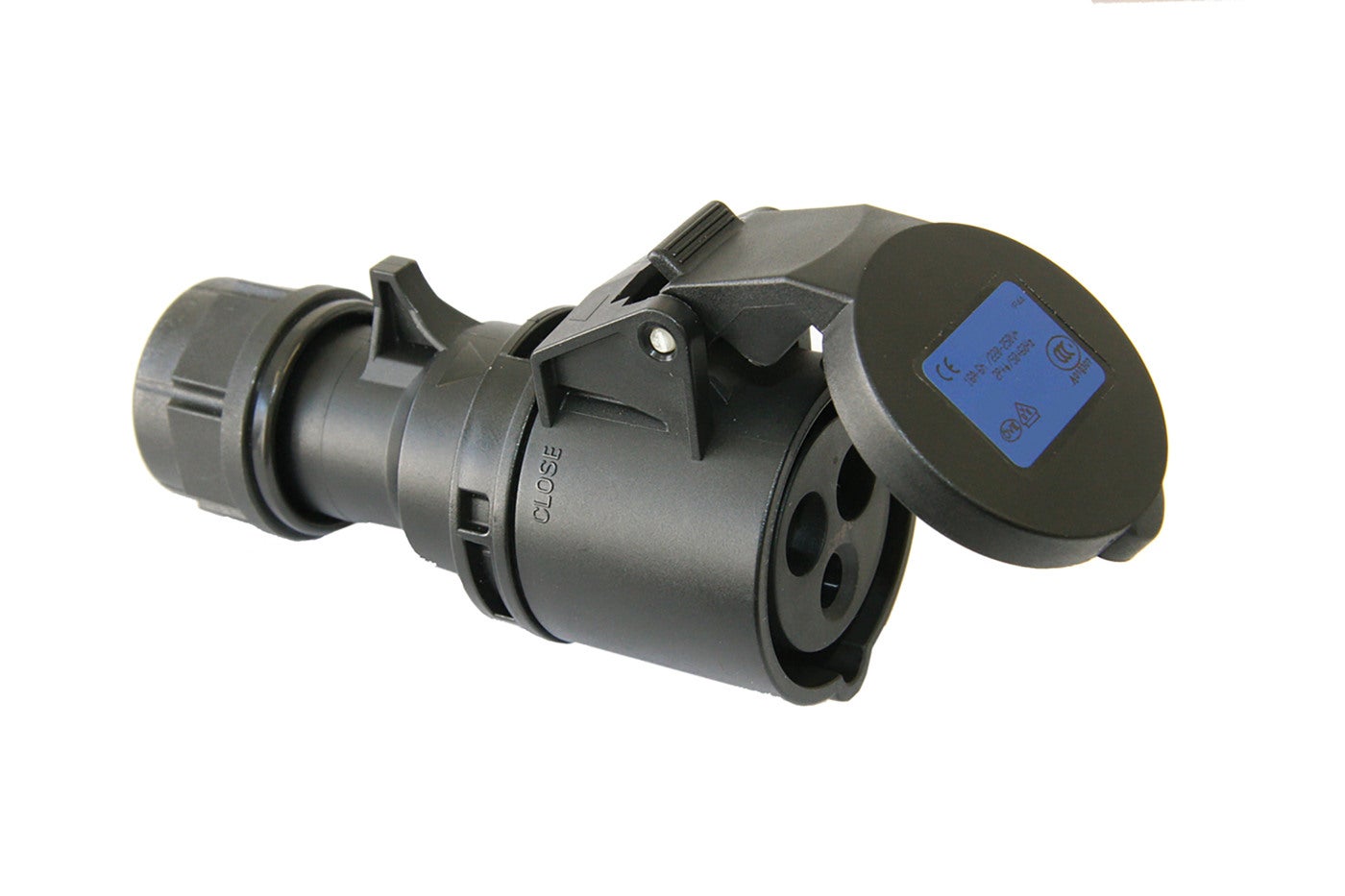

CONNECTOR 3P 32A 6h E

Connectors Event 32A IP44

Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. In-line socket. Connectors for scen-bandstand & arena 3-poles 32A 6h.
E-number
E2425665
Article number
2425665
Support
Materials Plastic
Standard EN60309-2
Frequency [Hz] 50/60Hz
Rated current [A] 32A
Wire flexible [mm²] 2,5-6mm²
Clock hour position [h] 6h
Pin/Sleeve 0
Degree of protection [IP] IP44
Name CONNECTOR 3P 32A 6h E
E-number E2425665
Article number 2425665
Type designation S 232-6 S+B
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
RAL-number RAL5017

More variants of Connectors Event 32A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles Modelltype RAL-number
CONNECTOR 3P 32A 6h E E2425665 2425665 S 232-6 S+B Blue 200-250V AC 3/2P+E RAL5017
CONNECTOR 4P 32A 6h E E2425666 2425666 S 332-6 S+B Red 400V AC 4/3P+E Event RAL3000

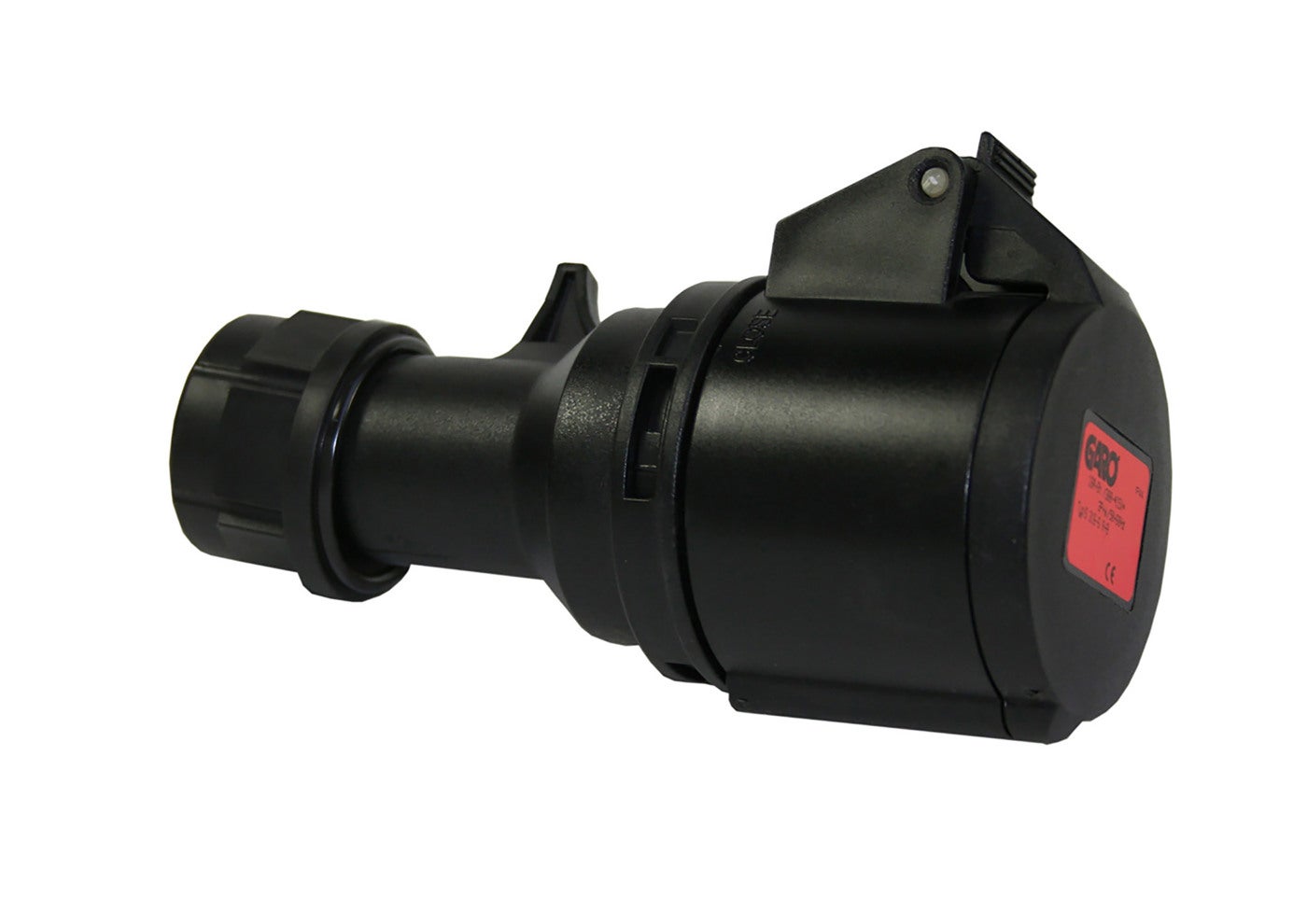

CONNECTOR 5P 32A 6h E E2425667 2425667 S 432-6 S+B Red 230/400V AC 5/3P+N+E Event RAL3000
