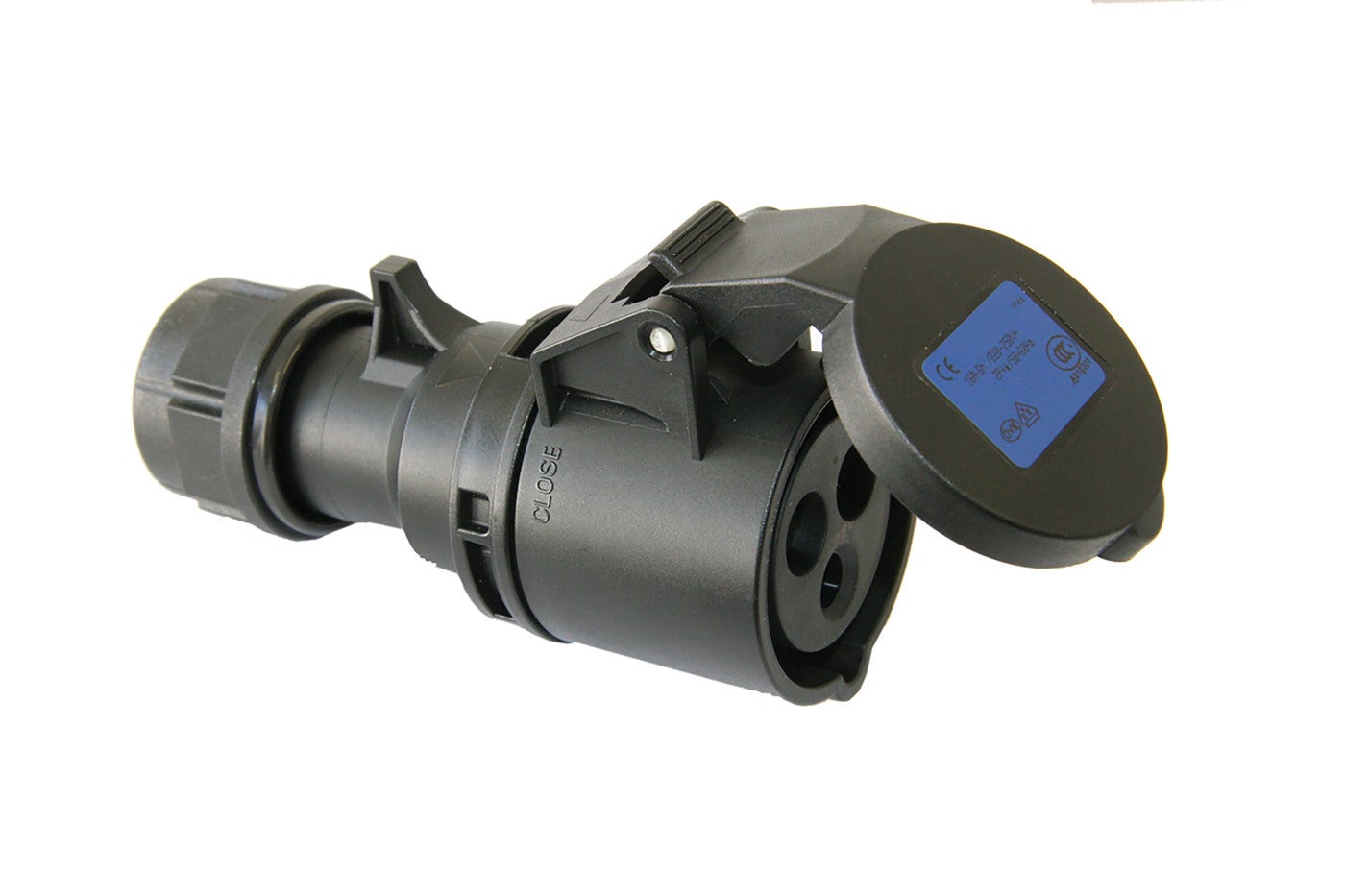

CONNECTOR 3P 16A 6h E

Connectors Event 16A IP44

Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. In-line socket. Connectors for scen-bandstand & arena 3-poles 16A 6h.
E-number
E2425662
Article number
2425662
Support
Materials Plastic
Standard EN60309-2
Frequency [Hz] 50/60Hz
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Event
Clock hour position [h] 6h
Pin/Sleeve 0
Degree of protection [IP] IP44
Name CONNECTOR 3P 16A 6h E
E-number E2425662
Article number 2425662
Type designation S 216-6 S+B
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
RAL-number RAL5017

More variants of Connectors Event 16A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number
CONNECTOR 3P 16A 6h E E2425662 2425662 S 216-6 S+B Blue 200-250V AC 3/2P+E RAL5017
CONNECTOR 4P 16A 6h E E2425663 2425663 S 316-6 S+B Red 400V AC 4/3P+E RAL3000

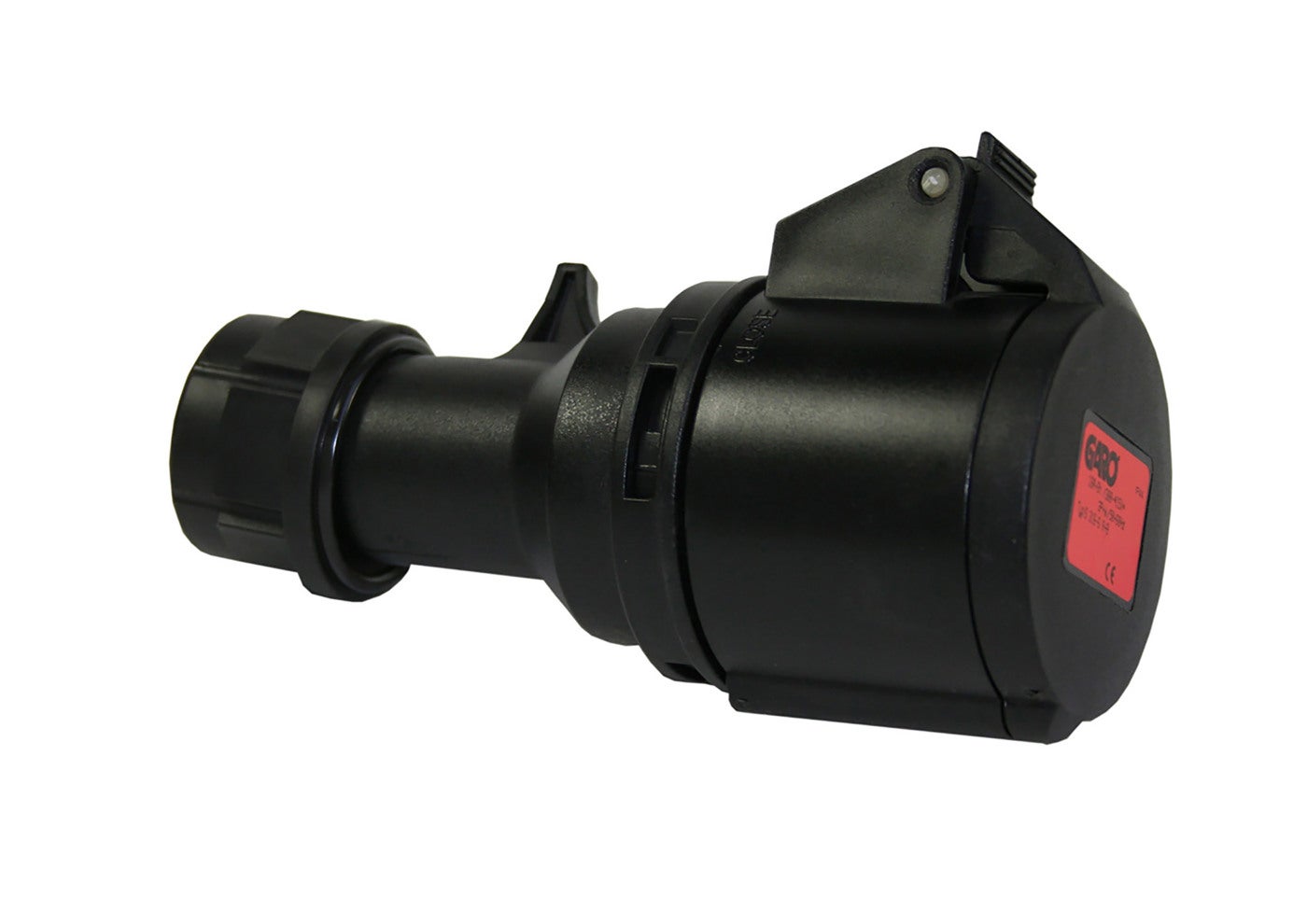

CONNECTOR 5P 16A 6h E E2425664 2425664 S 416-6 S+B Red 230/400V AC 5/3P+N+E RAL3000
