Energymeter Transformers 3-phase

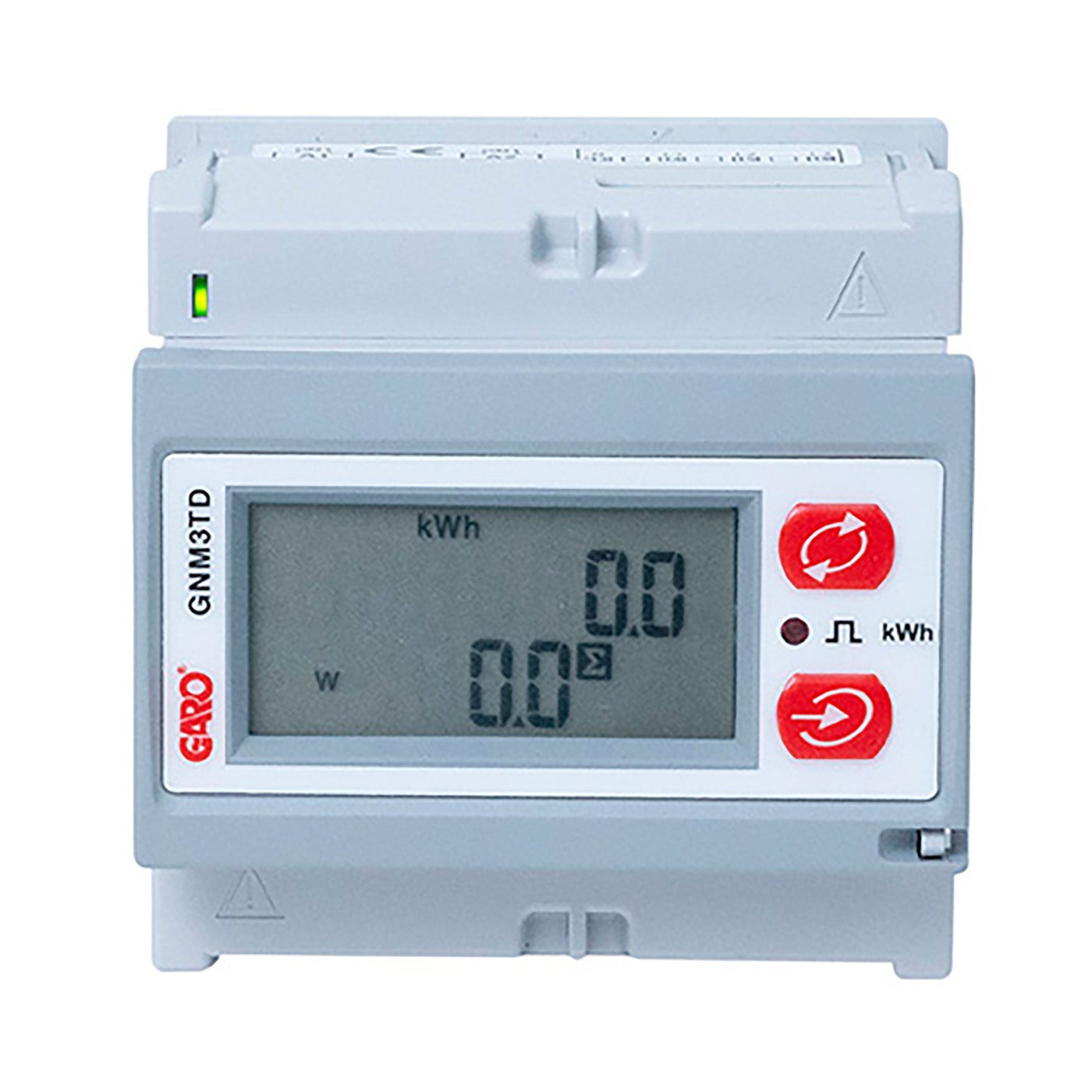

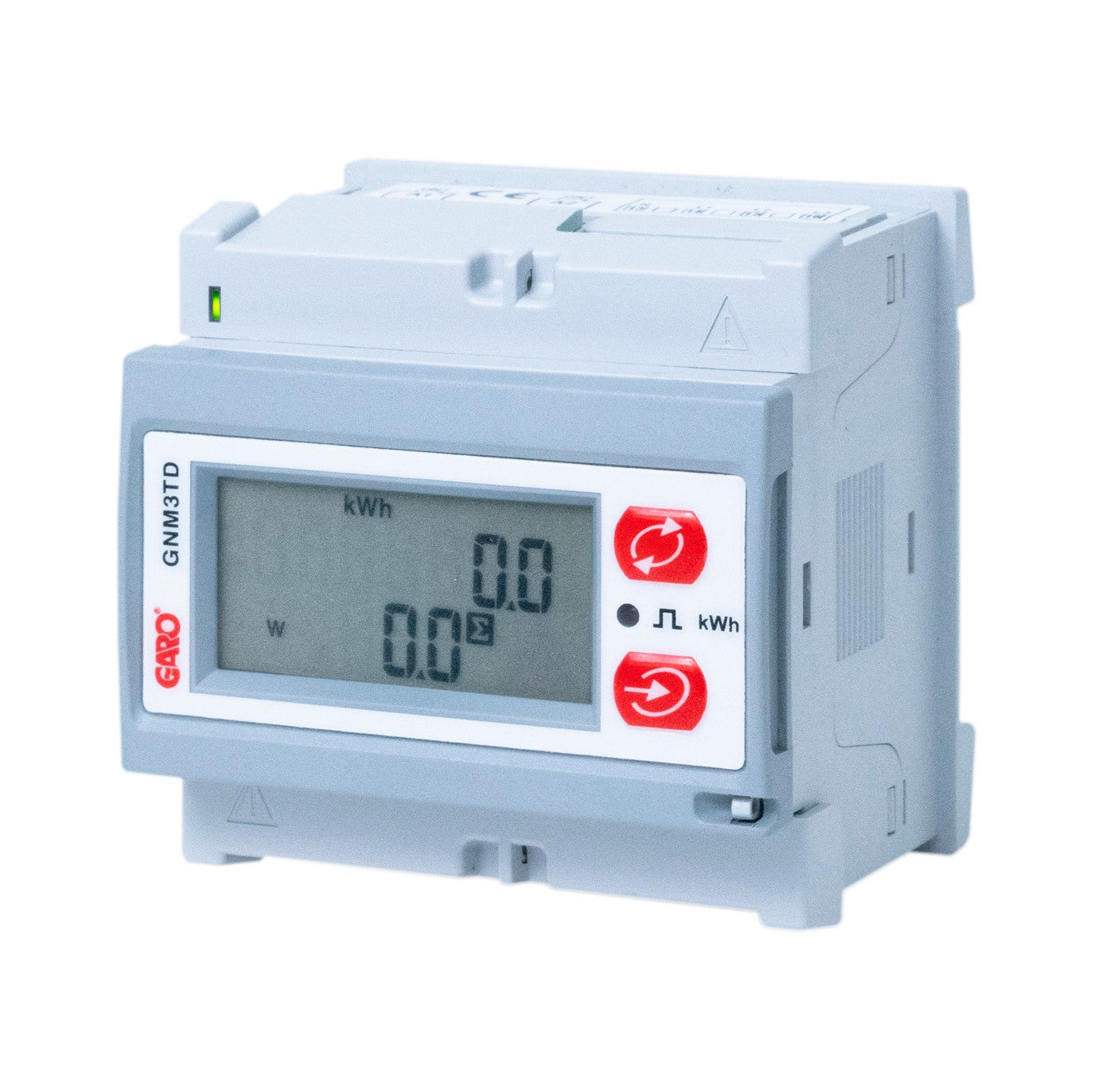

GNM3TD energy meter for 3-phase system when using power transformers is compact, only 4 modules wide and has the possibility to be mounted directly in the cabinet door. The current direction must be correct on the transformers for kWh to count up. The diode on the front of the meter will NOT flash if the current direction is wrong. The blocks are easily connected to the meter by quick couplings. Energymeter 2x3-phase trafo
E-number
E0900175
E0900175
Article number
108480
108480
| Type designation | GNM3TD |
|---|---|
| Standard | EN50470-1 |
| Storage temperature [C] | -30C...+70C |
| Operation Temperature [C] | -25C...+35C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated current [A] | 0 |
| Rated voltage [V AC] | 400V AC |
| Number of modules | 4 |
| Tightening torque [Nm] | 0,5Nm |
| Wire flexible [mm²] | 2,5-16mm² |
| Mounting method | DIN-rail |
| Phases [PH] | 3PH |
| Interface | Modbus RS485 |
| Power loss | <1 |
| Accuracy class | 1 |
| Degree of protection [IP] | IP20 |
| NetProductWeight | 0.24 |
| EngineerWidth | 100 |
| EngineerHeight | 75 |
| EngineerDepth | 125 |
| Name | ENERGYMETER 2X3PH TRAFO |
|---|---|
| E-number | E0900175 |
| Article number | 108480 |
