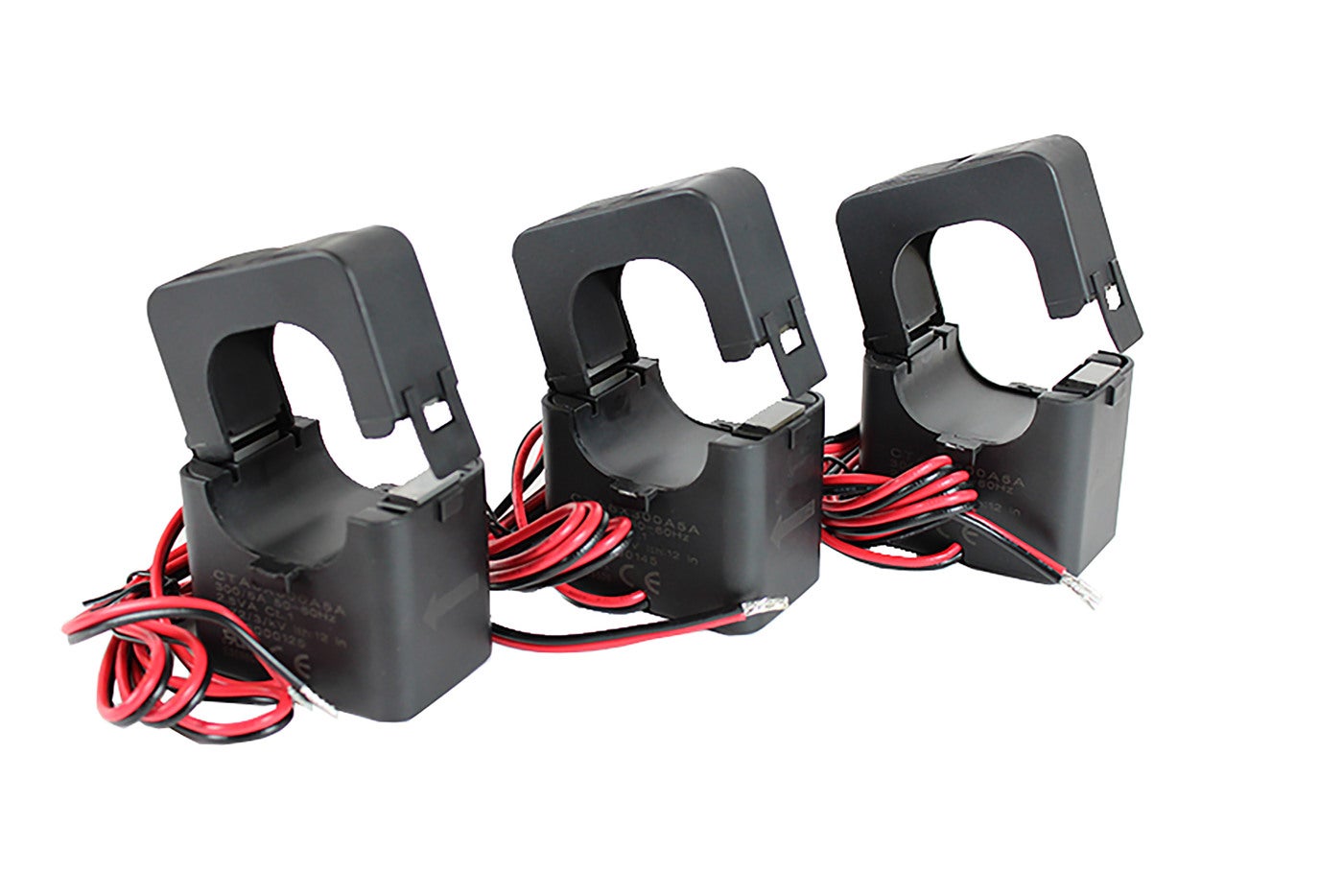

  • CURRENT TRANSFORMER SPLIT CORE 36-300A - 2

Current transformers separable GDT

Current transformers separable GDT Current transformer split core for 5A transformer energymeters class 1, opening 36mmØ 300A 3-pcs/box
E-number
E4263376
Article number
110945
Support
Materials Plastic
Standard EN61869-1
Color Black
Secondary [A] 5A
Opening diameter [Ø] 36Ø
NetProductWeight 1
Name CURRENT TRANSFORMER SPLIT CORE 36-300A
E-number E4263376
Article number 110945
Type designation GDT-3 36-300A
Accuracy class 1
Opening width 39mm
Opening height [mm] 36mm
Primary current [A] 300A
EngineerWidth 39
EngineerHeight 84
EngineerDepth 57

More variants of Current transformers separable GDT

E-number Article number Type designation Accuracy class Opening width Opening height [mm] Primary current [A] EngineerWidth EngineerHeight EngineerDepth
CURRENT TRAFO 100A/333mV E4263373 110704 GDT 16-100A 30mm 45mm 100A 30 45 30
CURRENT TRANSFORMER SPLIT CORE 36-300A E4263376 110945 GDT-3 36-300A 1 39mm 36mm 300A 39 84 57
CURRENT TRAFO DELB 36-600A 3-PACK E4263377 110946 GDT-3 36-600A 1 39mm 36mm 600A 39 84 57
