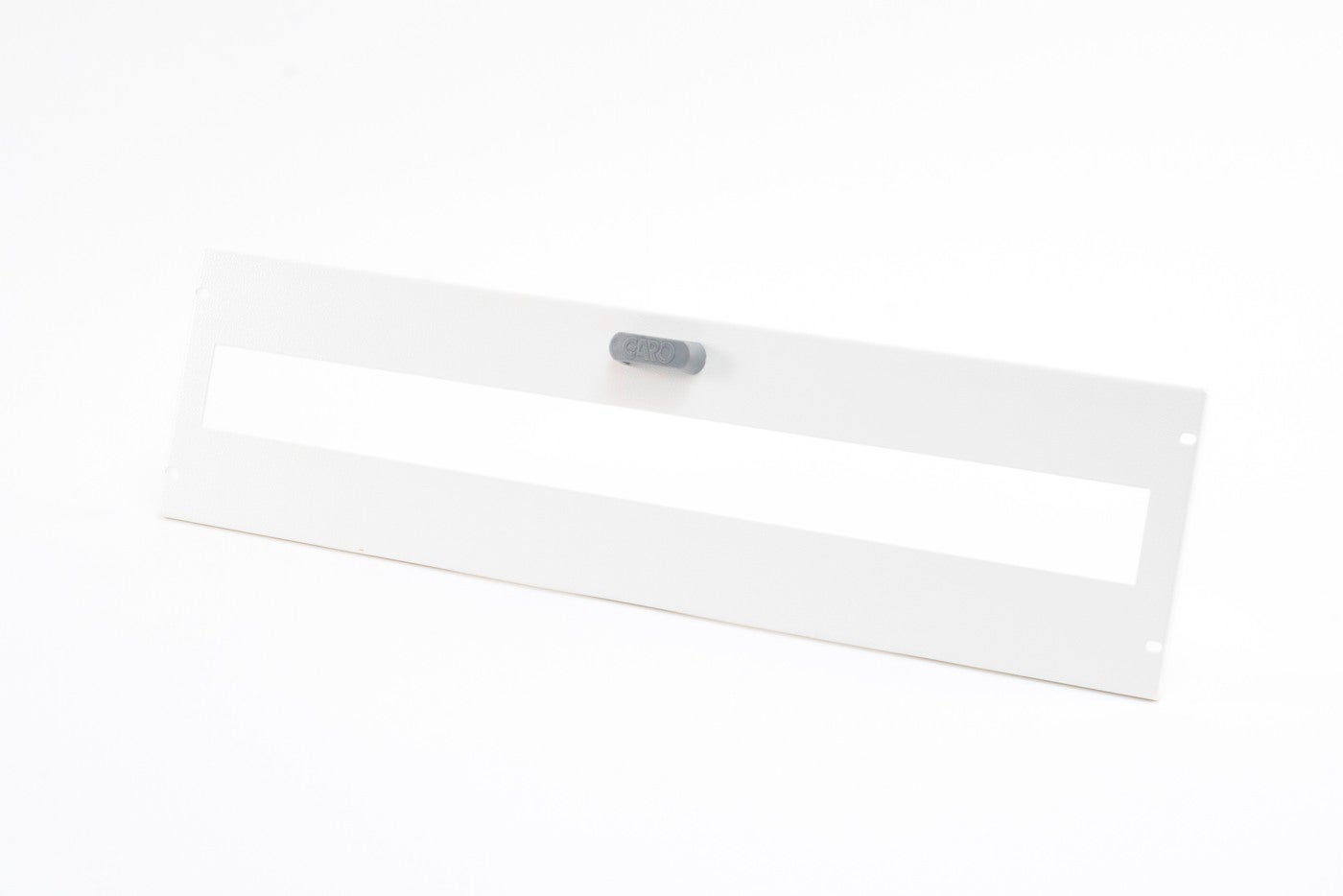

• FRONT PLATE W577 H150 1x30 MOD - 1

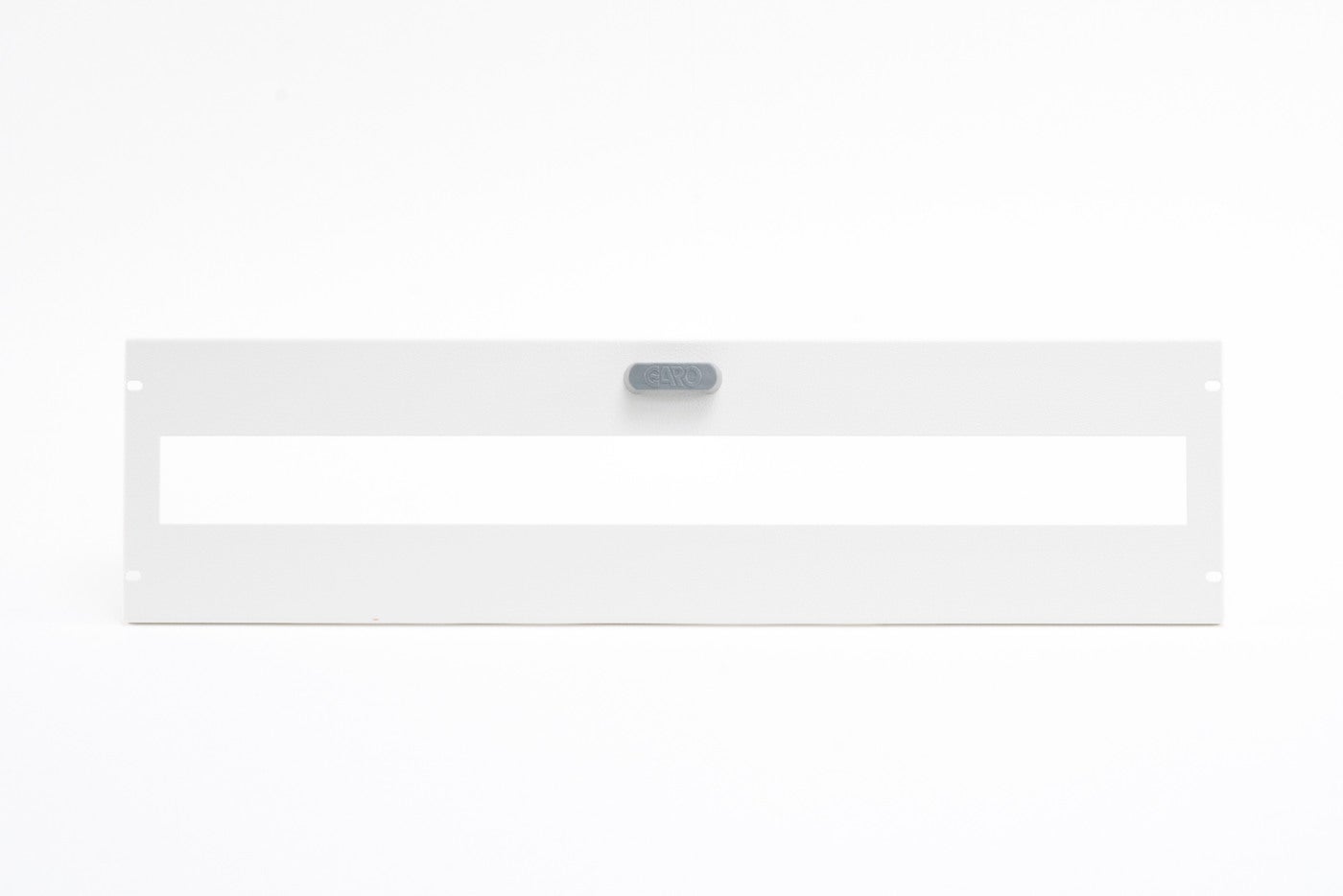

  • FRONT PLATE W577 H150 1x30 MOD - 2

Front plate with DINslots W577 GCS

The front plates are available in an airtight design, type FP, or with various slot openings, type FPS. The airtight front plates are also available with an FPG-type hinge and in a deeper version for taller equipment, with the potential for utilising the entire depth of the cabinet, type FPD. The IDZ-type front plates are adapted for installation of 25A and 63A diazed fuses. FRONT PLATE W577 H150 1x30 MOD
Article number
2260178
Support
Materials Sheet metal
Color White
EngineerWidth 577
EngineerDepth 7
Name FRONT PLATE W577 H150 1x30 MOD
Article number 2260178
Standard EN61439-3
NetProductWeight 0.6
EngineerHeight 150

More variants of Front plate with DINslots W577 GCS

E-number Article number Type designation Standard Modelltype Degree of protection [IP] NetProductWeight EngineerHeight
FRONT PLATE W577 H150 1x30 MOD 2260178 EN61439-3 0.6 150

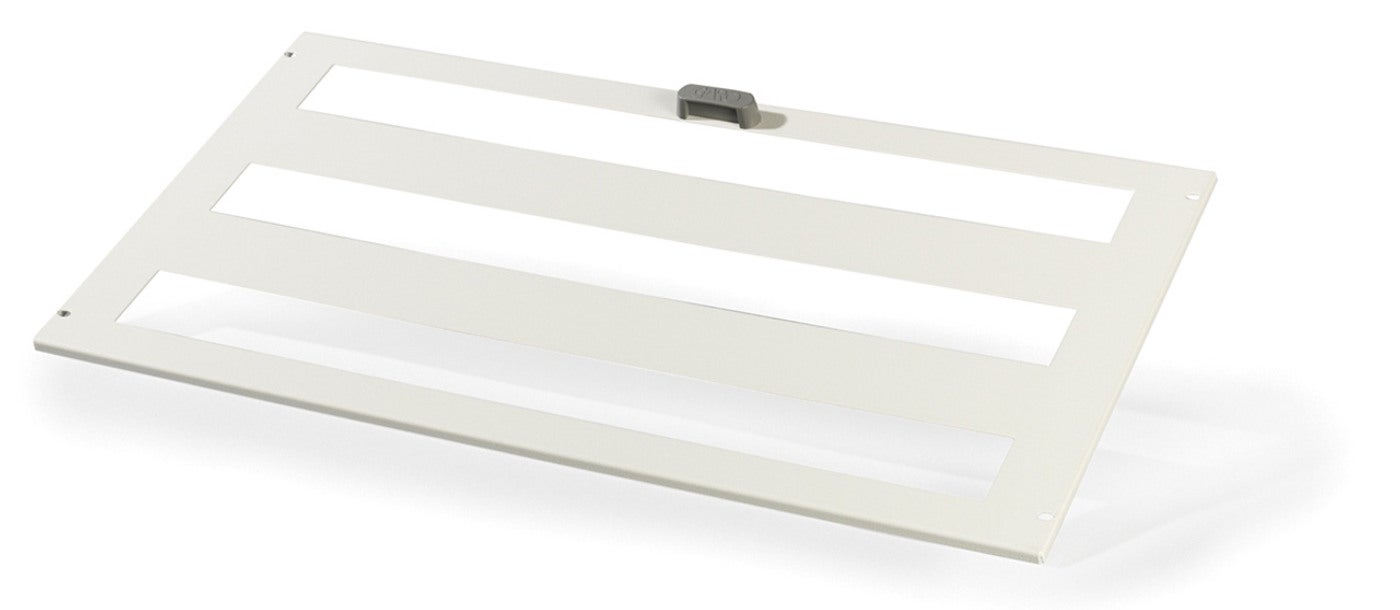

FRONT PLATE W577 H300 2x30 MOD 2260180 EN61439-3 GCS 1.26 300
FRONT PLATE 3R W501 2260527 GCS IP44 0.9 300
