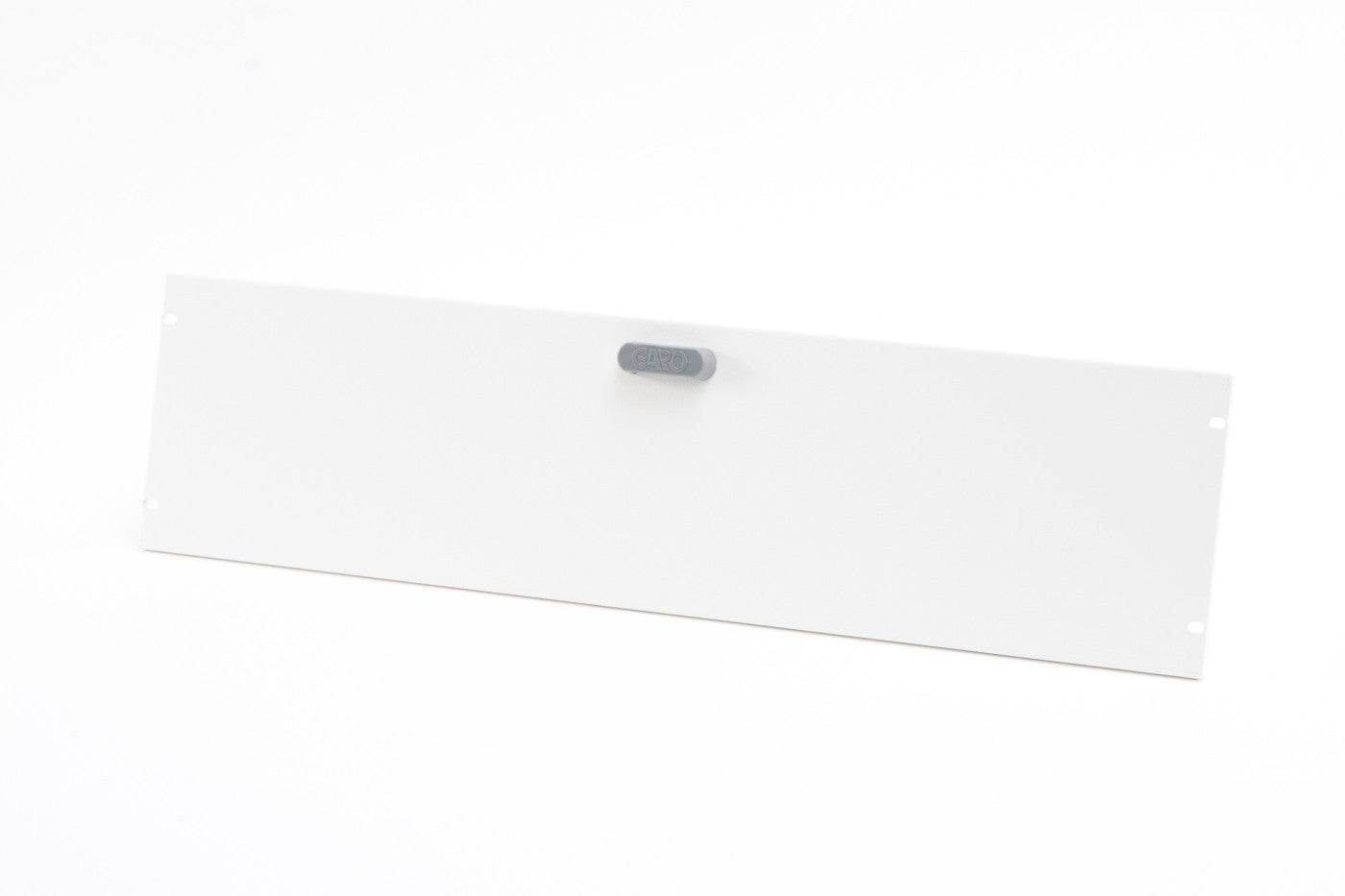

• FRONT PLATE W577 H150 - 1

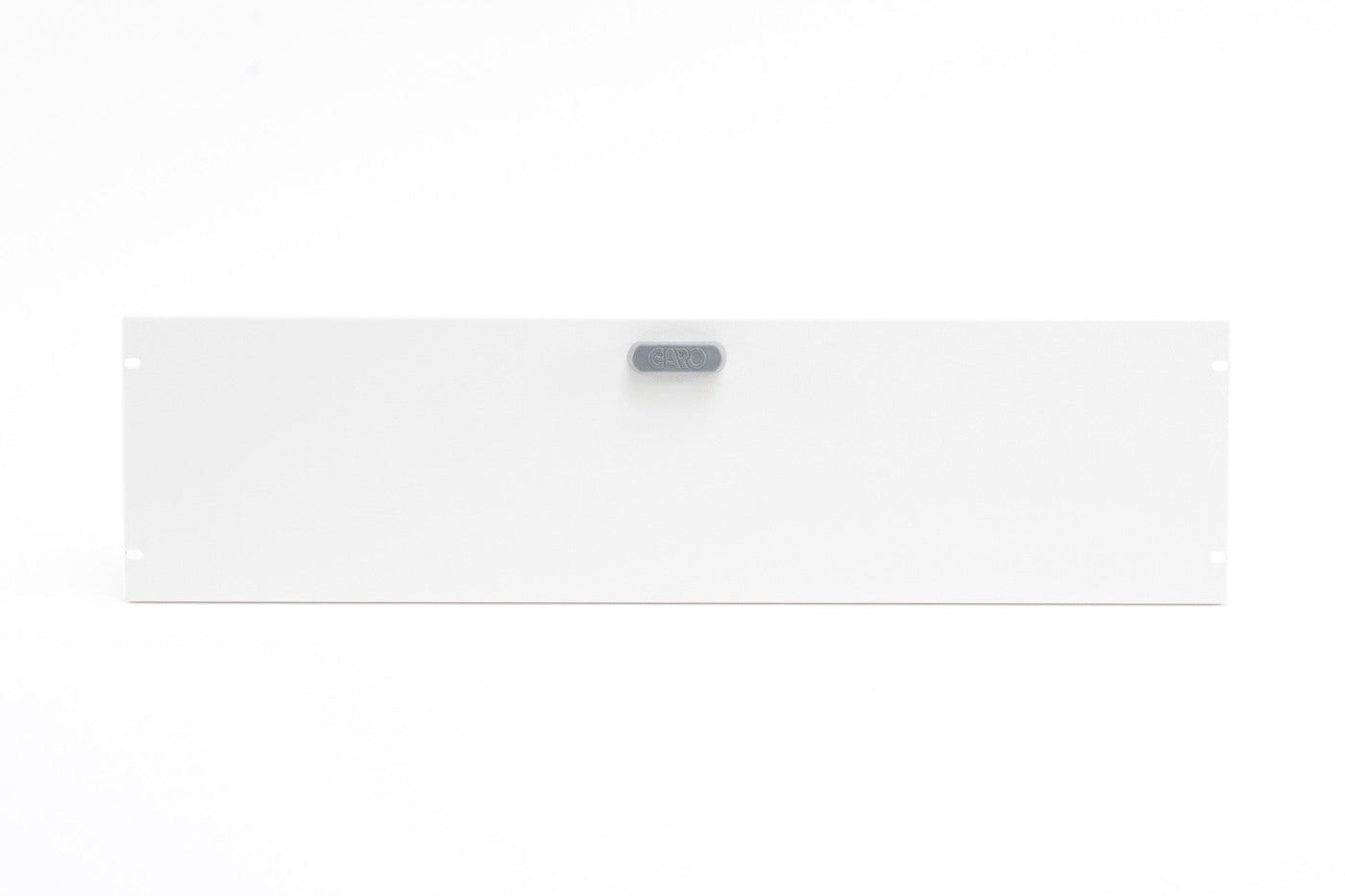

  • FRONT PLATE W577 H150 - 2

Front plates W577

The front plates are available in an airtight design, type FP, or with various slot openings, type FPS. The airtight front plates are also available with an FPG-type hinge and in a deeper version for taller equipment, with the potential for utilising the entire depth of the cabinet, type FPD. The IDZ-type front plates are adapted for installation of 25A and 63A diazed fuses. FRONT PLATE W577 H150
Article number
2260170
Support
Materials Sheet metal
Standard EN61439-3
Color White
Modelltype GCS
EngineerWidth 577
Name FRONT PLATE W577 H150
Article number 2260170
Type designation FP 215
NetProductWeight 0.78
EngineerHeight 150
EngineerDepth 7

More variants of Front plates W577

E-number Article number Type designation NetProductWeight EngineerHeight EngineerDepth

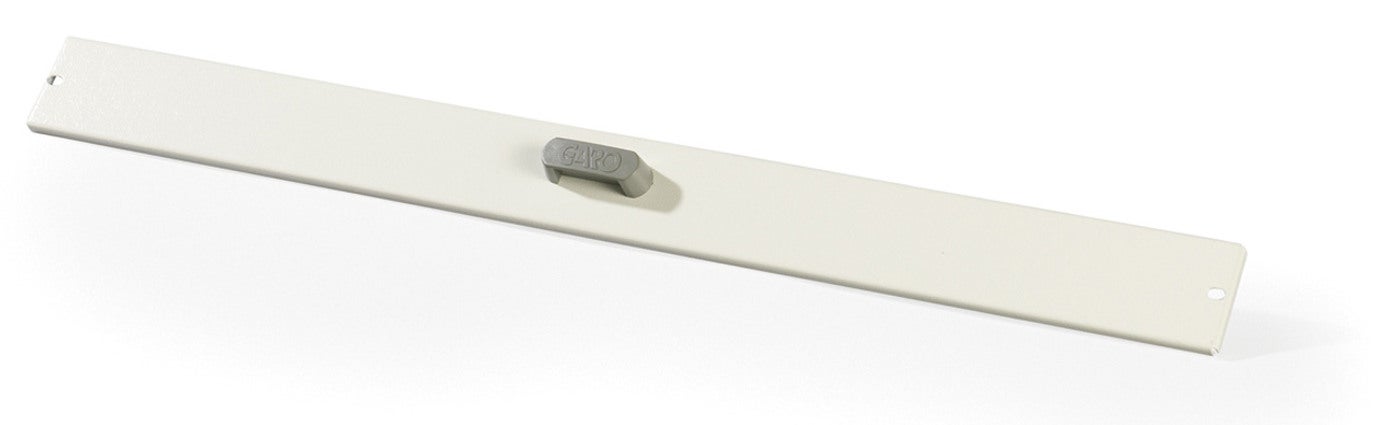

FRONT PLATE W577 H50 2260166 FP 205 0.29 50 7

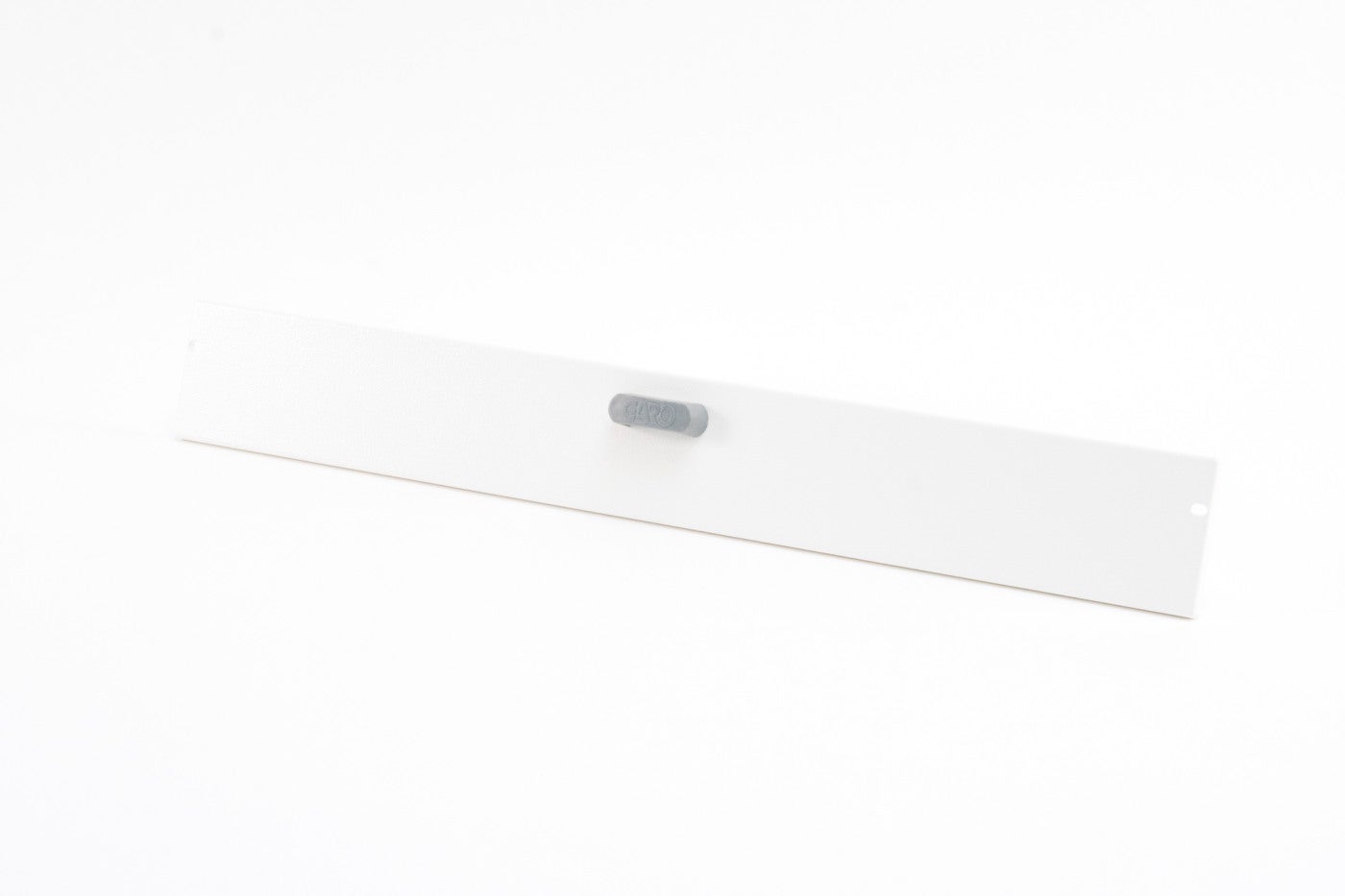

FRONT PLATE W577 H75 2260168 FP 207 0.43 75 7
FRONT PLATE W577 H150 2260170 FP 215 0.78 150 7

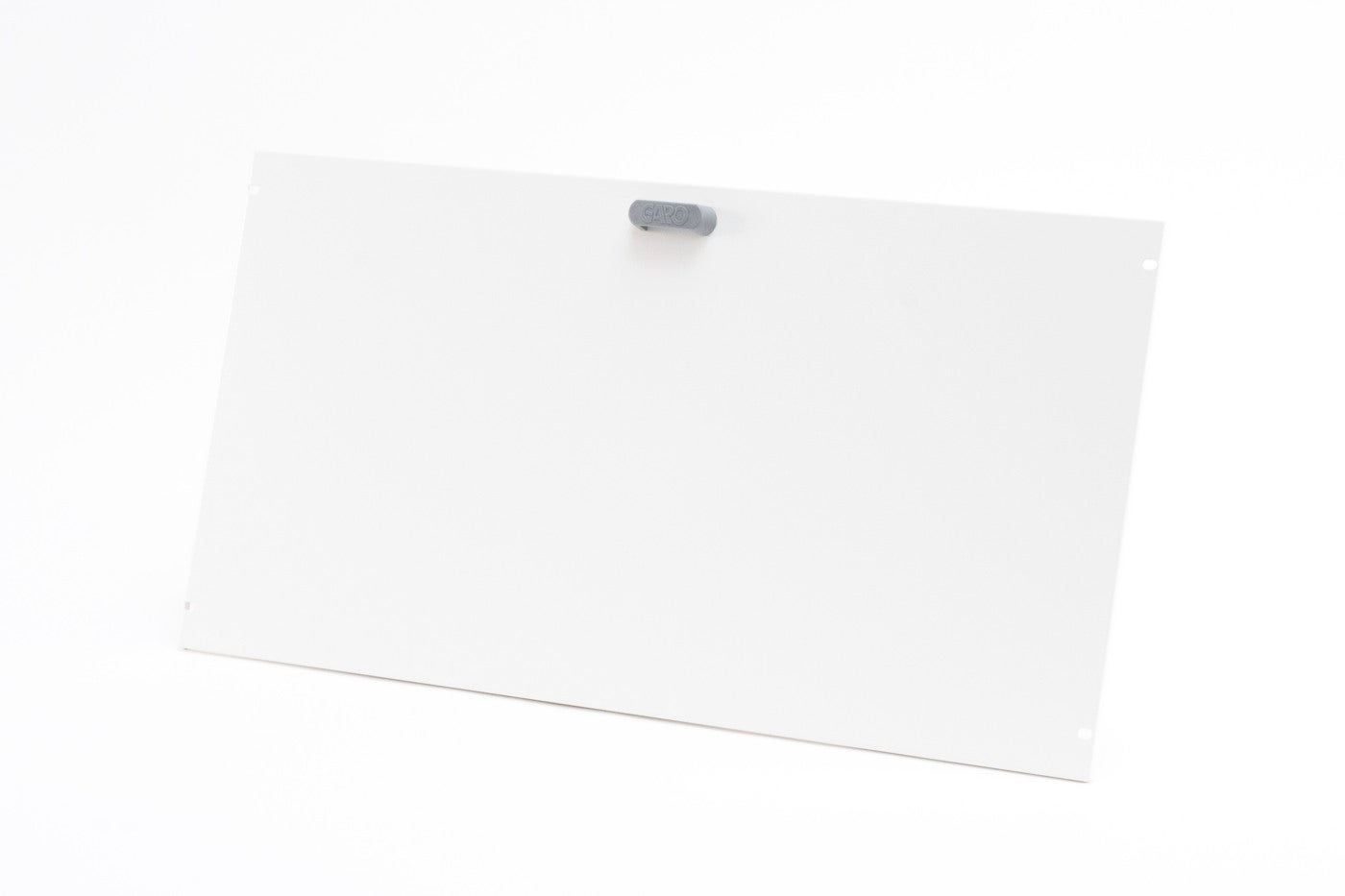

FRONT PLATE W577 H300 2260172 FP 230 1.31 300 7

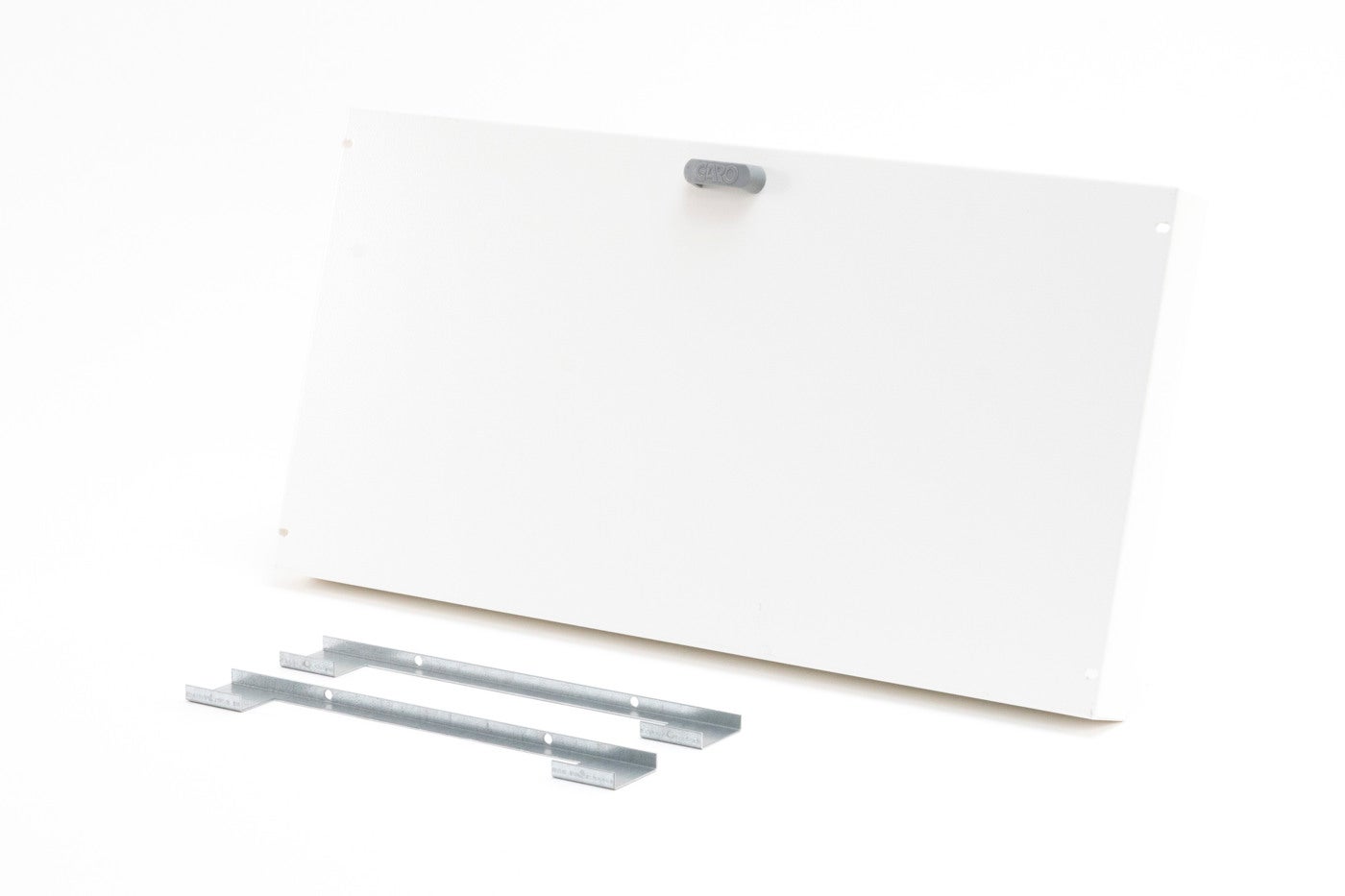

FRONT PLATE W577 H300 D45 2260196 FPD 230 2.22 300 45
