• CONTACTOR 20A 2NO 12V 1M - 1

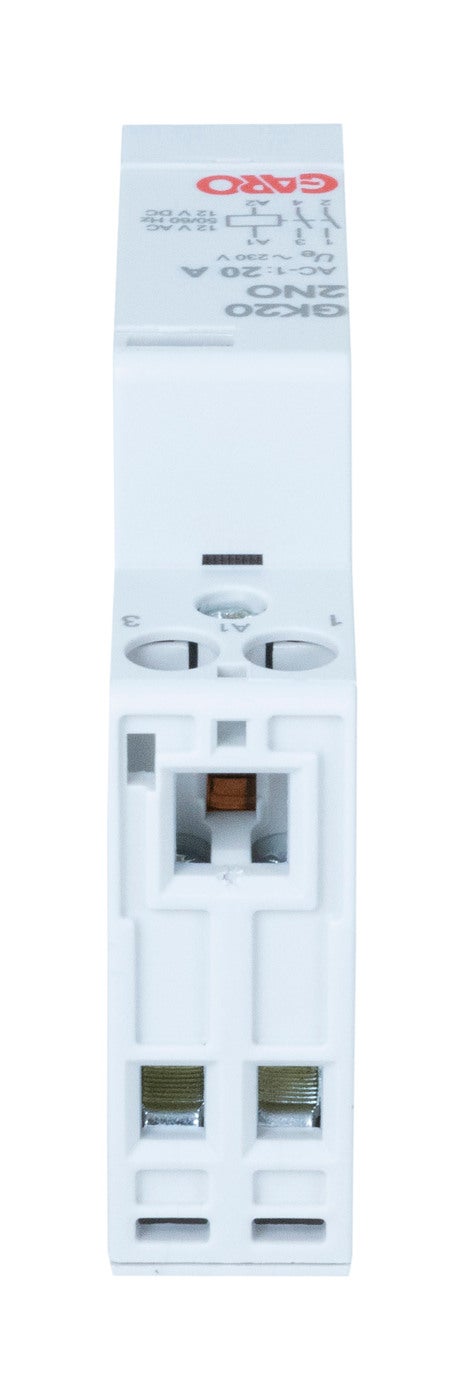

  • CONTACTOR 20A 2NO 12V 1M - 2

Contactors 2-poles

The range includes both the closing, opening and switching contactors. Contactor 20A 2NO 12V 1 module
E-number
E3205634
Article number
108350
Support
Storage temperature [C] -30C...+80C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Color Grey
Rated voltage [V AC] 230V AC
Number of modules 1
Tightening torque [Nm] 1,2Nm
Wire flexible [mm²] 1-6mm²
Wire solid [mm²] 1-10mm²
Hum-free Yes
Voltage type AC
Degree of protection [IP] IP20
Name CONTACTOR 20A 2NO 12V 1M
E-number E3205634
Article number 108350
Type designation GK20 2NO 12V ACDC
Rated current [A] 20A
Power loss 1,7W
Control line voltage 12V ACDC
Power AC1 230V 4kW
Power AC3 230V 1,3kW
NetProductWeight 0.14
EngineerWidth 19
EngineerHeight 71
EngineerDepth 86

More variants of Contactors 2-poles

E-number Article number Type designation Rated current [A] Power loss Control line voltage Power AC1 230V Power AC1 400V Power AC3 230V Power AC3 400V Contacts [pcs] NetProductWeight EngineerWidth EngineerHeight EngineerDepth ProductWidth ProductHeight ProductDepth Volume
CONTACTOR 2P 32A 2NO 24V E3290777 107787 GK32 2NO 24V ACDC 32A 2,5W 24V ACDC 7,4kW 16kW 1,3kW 11kW 0.14 18 85 66
CONTACTOR 2P 32A 2NO 230V E3290779 107788 GK32 2NO 230V ACDC 32A 1,7W 230V ACDC 7,4kW 16kW 1,3kW 11kW 0.14 18 85 66
CONTACTOR 20A 2NO 12V 1M E3205634 108350 GK20 2NO 12V ACDC 20A 1,7W 12V ACDC 4kW 1,3kW 0.14 19 71 86
CONTACTOR 2P 20A 2NO 230V 1M E3294576 3294576 GK20 2NO 230V AC 20A 1,7W 230V AC 4kW 1,3kW 0.13 18 85 66
CONTACTOR 2P 20A 2NC 230V E3294577 3294577 GK20 2NC 230V AC 20A 1,7W 230V AC 4kW 0,75kW 0.12 18 85 66 19 67 88 112024
CONTACTOR 2P 20A 1NO 1NC 230V 1M E3290500 351967 GK20 1NO1NC 230V AC 20A 1,7W 230V AC 4kW 1,3/0,75kW 11kW 1NO1NC 0.13 19 70 86
CONTACTOR 2P 20A 2NO 24V 1M E3290796 352143 GK20 2NO 24V ACDC 20A 1,7W 24V ACDC 4kW 1,3kW 0.13 18 85 66
