Floor outlet with RJ45

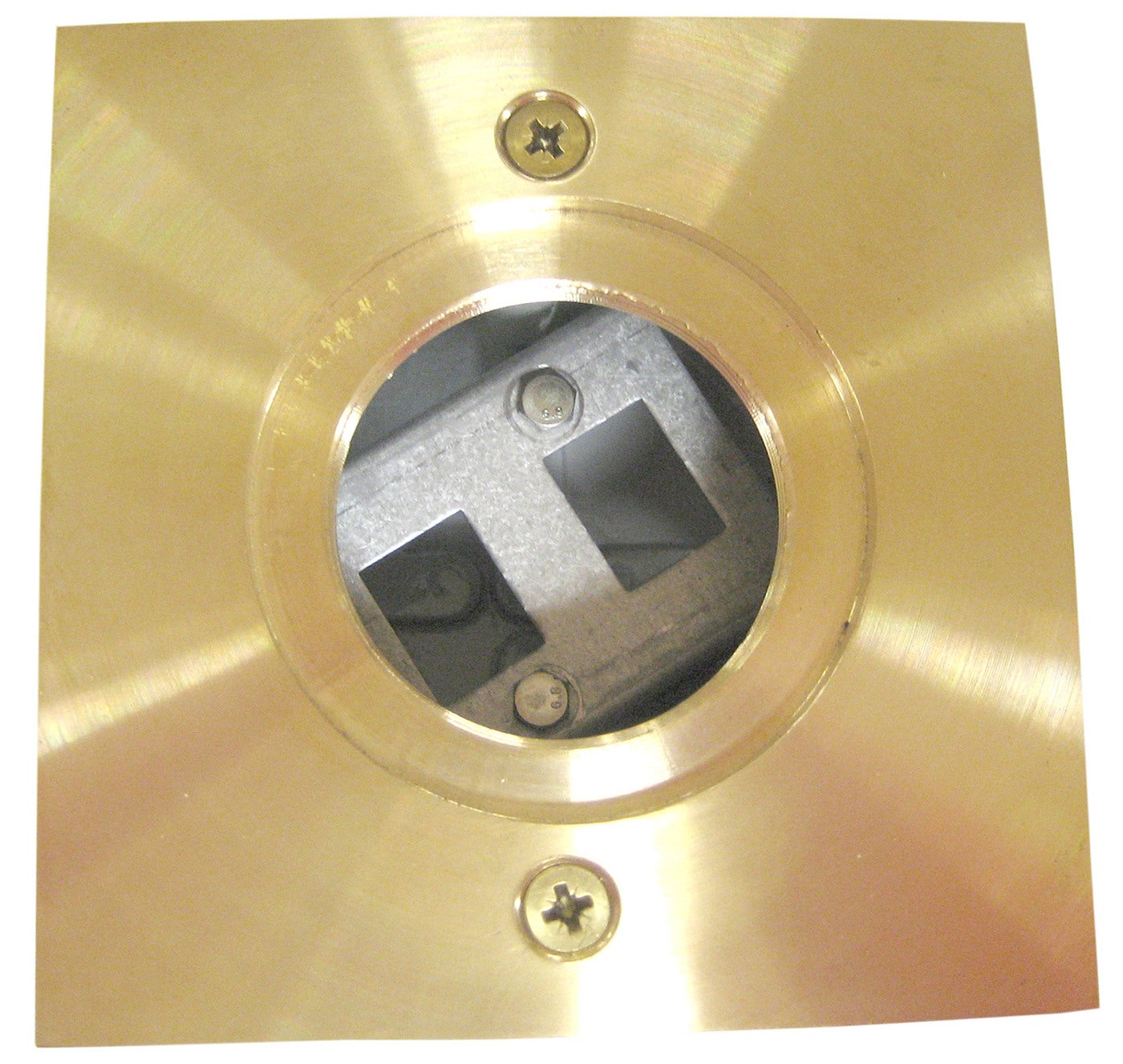

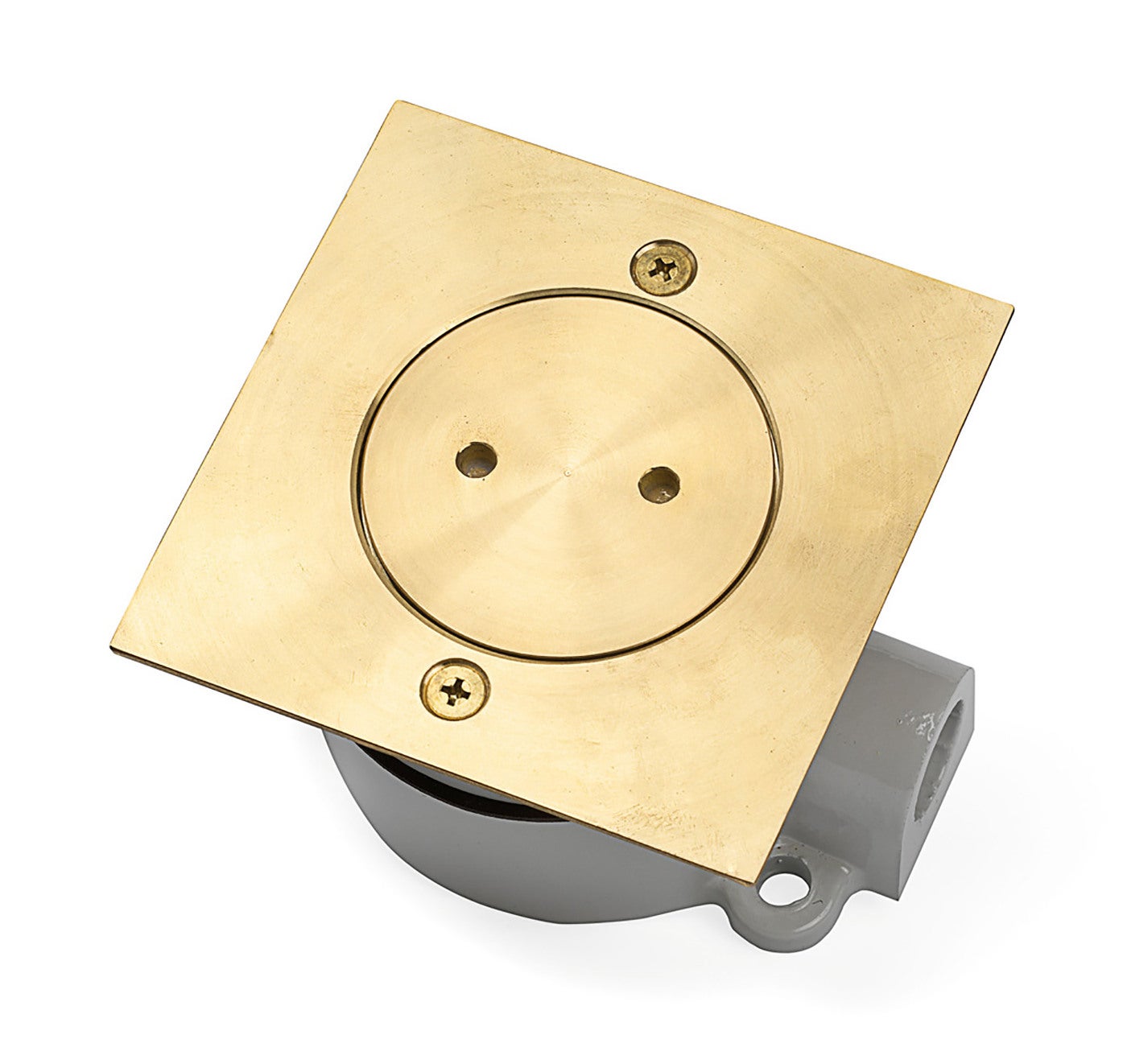

GARO’s floor boxes are made of die cast aluminium with cover plate and brass screw cap. Available with Schuko or RJ45 jack. The floor boxes are fully recessed flush with the floor. The screw cap can be replaced with a brass ring with rubber bushing type GRM, which produces an airtight connection for one output cable, from the front of the socket. If the entire box needs to satisfy IP65, the insert holes, which are suitable for conduit or SP-conduit with a diameter of 20 mm, must also be sealed around the co Floor outlet with RJ45
E-number
E1896875
E1896875
Article number
1896875
1896875
| Type designation | |
|---|---|
| Standard | EN60998-1-2, EN60670-1 |
| Operation Temperature [C] | 0 |
| Housing material | Hot dip galvanized sheet metal |
| Color | Grey |
| Wire flexible [mm²] | 2x2,5mm |
| Mounting method | Floor fastening |
| Wire solid [mm²] | 2x2,5mm |
| Coverplate | 109x109mm |
| Diameter inner | 94Ø |
| Degree of protection [IP] | IP65 |
| Impact strength [IK] | 0 |
| NetProductWeight | 1.05 |
| EngineerWidth | 109 |
| EngineerHeight | 109 |
| EngineerDepth | 70 |
| Name | FLOOR OUTL FOR RECEDED INST RJ45 |
|---|---|
| E-number | E1896875 |
| Article number | 1896875 |
