Connectors low voltage 32A IP44

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The connectors are designed to meet the requirements in the standards IEC 60309-2 and BS 43 43. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Connectors low-voltage 3-poles 32A.
E-number
2425701
Article number
2425701
Rated current [A] 32
Degree of protection [IP] 44
Wire flexible [mm²] 4-10
Width [mm] 75
Height [mm] 150
Depth [mm] 75
Materials Plastic
Function Low voltage

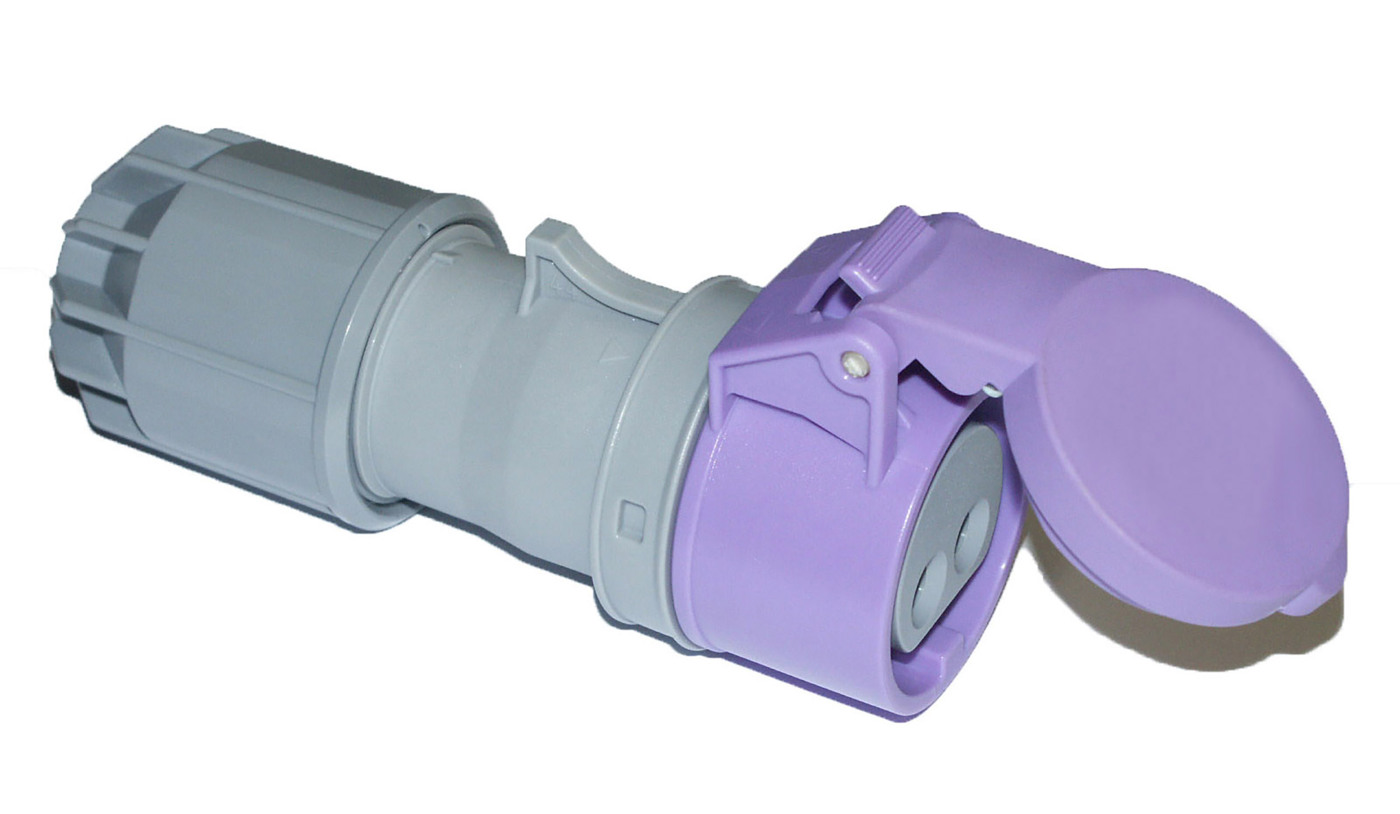

Name CONNECTORS LOW-VOLTAGE 3P 32A
E-number 2425701
Article number 2425701
Type designation SK 332 S
No.of Poles [pcs] 3P
Rated voltage [V AC] 20-25
Frequency [Hz] 50/60
Colour Purple
Standard 0
Netweight [kg] 0.20
RAL-nummer RAL4005

More variants of Connectors low voltage 32A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Standard Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS LOW-VOLTAGE 2P 32A 2425698 2425698 SK 232 S 2P 20-25 50/60 Purple Class 1 EN 60044-8 0.18 RAL4005
CONNECTORS LOW-V  2P 32A 10h 2425699 2425699 SK 232-10 S 2P 20-25,40-50 DC Grey Class 1 EN 60044-8 0.18 10 RAL7046
CONNECTORS LOW-V 2P 32A 12h 2425700 2425700 SK 232-12 S 2P 40-50 50/60 White Class 1 EN 60044-8 0.18 12 RAL9016
CONNECTORS LOW-VOLTAGE 3P 32A 2425701 2425701 SK 332 S 3P 20-25 50/60 Purple 0 0.20 RAL4005
CONNECTORS LOW-V 3P 32A 4h 2425702 2425702 SK 332-4 S 3P 40-50 100/200 Green 0 0.20 4 RAL6010
CONNECTORS LOW-V 3P 16A 12h 2425703 2425703 SK 332-12 S 3P 40-50 50/60 White Class 1 EN 60044-8 0.20 12 RAL9016
