Connectors low voltage 16A IP44

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The connectors are designed to meet the requirements in the standards IEC 60309-2 and BS 43 43. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Connectors low-voltage 2-poles 16A 10h.
E-number
2425693
Article number
2425693
Rated current [A] 16
Degree of protection [IP] 44
Wire flexible [mm²] 4-10
Standard Class 1 EN 60044-8
Width [mm] 75
Height [mm] 150
Depth [mm] 75
Materials Plastic
Function Low voltage

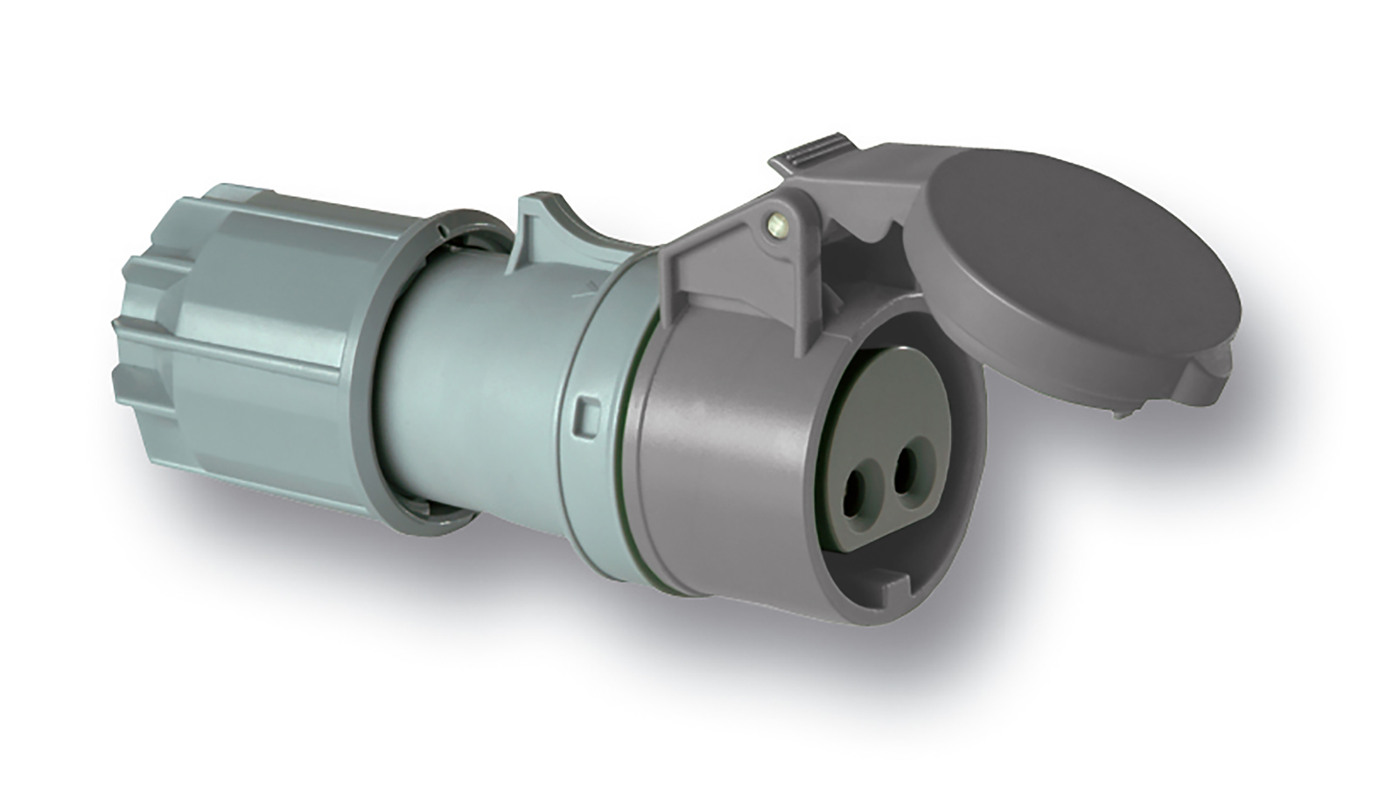

Name CONNECTORS LOW-V 2P 16A 10h
E-number 2425693
Article number 2425693
Type designation SK 216-10 S
No.of Poles [pcs] 2P
Rated voltage [V AC] 20-25,40-50
Frequency [Hz] DC
Colour Grey
Netweight [kg] 0.18
Position of earth [h] 10
RAL-nummer RAL7046

More variants of Connectors low voltage 16A IP44

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Netweight [kg] Position of earth [h] RAL-nummer
CONNECTORS LOW-VOLTAGE 2P 16A 2425692 2425692 SK 216 S 2P 20-25 50/60 Purple 0.18 RAL4005
CONNECTORS LOW-V 2P 16A 10h 2425693 2425693 SK 216-10 S 2P 20-25,40-50 DC Grey 0.18 10 RAL7046
CONNECTORS LOW-V 2P 16A 12h 2425694 2425694 SK 216-12 S 2P 40-50 50/60 White 0.18 12 RAL9016
CONNECTORS LOW-VOLTAGE 3P 16A 2425695 2425695 SK 316 S 3P 20-25 50/60 Purple 0.20 RAL4005
CONNECTORS LOW-V 3P 16A 4h 2425696 2425696 SK 316-4 S 3P 40-50 100/200 Green 0.20 4 RAL6010
CONNECTORS LOW-V 3P 16A 12h 2425697 2425697 SK 316-12 S 3P 40-50 50/60 White 0.20 12 RAL9016
